LS Tractor MT235E vs TYM 3515

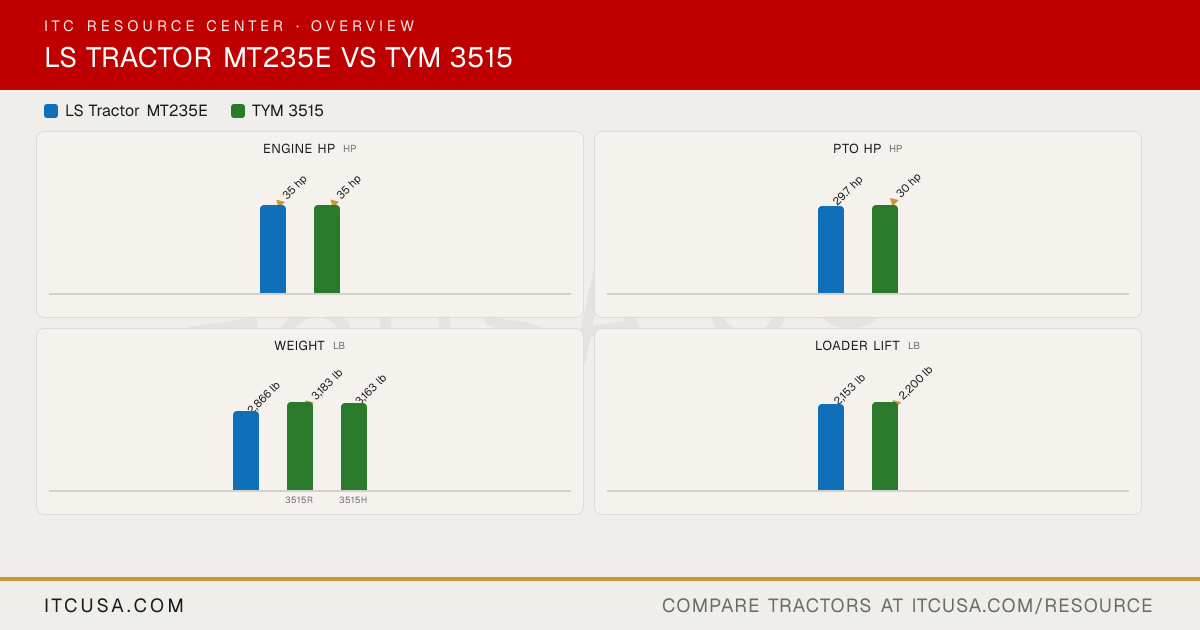

Across 9 measurable specs, the TYM 3515 leads 6 categories to 2 (1 tied). Machine pages: LS Tractor MT235E and TYM 3515.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT235E	TYM3515

▶Engine
Engine Manufacturer	LS	TYM
Engine Model	L3C19-D2	T1700N2
Engine Type	3-cylinder, liquid-cooled, diesel, naturally aspirated, CRDI	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	114.7 in³	104.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	29.7 hp	30 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Dry	Dry element
Fuel System	CRDI (Delphi common rail direct injection)	IDI (indirect injection)
Alternator	70 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Gear pump, engine driven	Dual gear pump
Implement Flow	8.2 gpm	7.7 gpm
Steering Flow	4.1 gpm	4.2 gpm
Total Hydraulic Flow	12.3 gpm	11.9 gpm
Overall Hydraulic Pump Flow	12.3 gpm	11.9 gpm
Hydraulic System Type	Open center system, position control	Dual gear pump
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Loader: 2 / Rear: 0
No. of Optional Remote Valves	1 or 2 pairs (optional)	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	7.4 gal	7.1 gal
Coolant Capacity	1.9 gal	5.3 qt
Crankcase Capacity	1.5 gal	4.5 qt
Transmission / Hydraulic System Capacity	8.5 gal	3515R: 9 gal; 3515H: 9.8 gal
Front Axle Fluid Capacity	1.7 gal	6.8 qt
▶PTO & Hitch
PTO Type	Independent (wet disc clutch)	Independent
PTO Rear	Standard (540 rpm)	540 rpm
Mid-PTO Availability	Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	3,306 lb
Hitch Lift Capacity (at 24”)	1,433 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Synchro Shuttle	3515R: Synchromesh; 3515H: HST
No. of Speeds	F12 x R12	3515R: F12 x R12; 3515H: 3-Range
Max Travel Speed (Forward)	14.33 mph	3515R: 14.4 mph; 3515H: 18.8 mph
Max Travel Speed (Reverse)	13.63 mph	3515R: 14.3 mph; 3515H: 18.7 mph
Clutch	Dry single clutch	3515R: Dry single plate; 3515H: None (HST)
Differential Lock & Limited Slip Options	Mechanical pedal type	Differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Suspension seat
Front Axle Type	Front wheel mechanical assist (4WD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	54 in	56.3 in
Wheelbase	69 in	65.7 in
Ground Clearance	Not Published	14.4 in
Min. Turn Radius without Brakes	10.79 ft (left); 11.02 ft (right)	L: 124.8 in; R: 121.3 in
Height to Top of ROPS	88 in	97.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	121 in (frame to link)	120.9 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	2,866 lb	3515R: 3,183 lb; 3515H: 3,163 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Ag, industrial or turf tires at no additional cost	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 6PR / 41x14.00 4PR; R4 Industrial 10-16.5 6PR / 420/70-24 6PR
R1 Agricultural - Front	7-14	8-16
R1 Agricultural - Rear	11.2-24	12.4-24
R3 Turf - Front	25x8.50-14	27x8.5-15, 6PR
R3 Turf - Rear	41x14-20	41x14.00, 4PR
R4 Industrial - Front	27x8.50-14	10-16.5, 6PR
R4 Industrial - Rear	43x16-20	420/70-24, 6PR
▶Loader & Attachments
Quick Attach Loader System	Not Published	Not Published
Loader Model	LL3302	BL150
Loader Lift Height	94 in	BL150: 104.9 in
Loader Lift Capacity (Full Height)	LL3302: 2,153 lb (at pivot pin, full height)	BL150: 2,200 lb (at pivot pin)
Loader Breakout Force	LL3302: 3,579 lb (at pivot pin)	BL150: 3,422 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	6-year limited warranty	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $225.00

Find a LS Tractor dealer near you→Find a TYM dealer near you→

LS Tractor MT235E vs TYM 3515: Quick Answers

Which has more horsepower, the LS Tractor MT235E or the TYM 3515?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor MT235E or the TYM 3515?

The TYM 3515 leads on pto hp at 30 hp hp, compared to 29.7 hp hp for the LS Tractor MT235E.

Which is heavier, the LS Tractor MT235E or the TYM 3515?

The TYM 3515 leads on weight at 3,183 lb lb, compared to 2,866 lb lb for the LS Tractor MT235E.

Which has more loader lift capacity, the LS Tractor MT235E or the TYM 3515?

The TYM 3515 leads on loader lift at 2,200 lb lb, compared to 2,153 lb lb for the LS Tractor MT235E.

Which has more three-point hitch lift capacity, the LS Tractor MT235E or the TYM 3515?

The TYM 3515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the LS Tractor MT235E.
