LS Tractor MT235E vs TYM 3515C

Across 9 measurable specs, the TYM 3515C leads 7 categories to 1 (1 tied). Machine pages: LS Tractor MT235E and TYM 3515C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

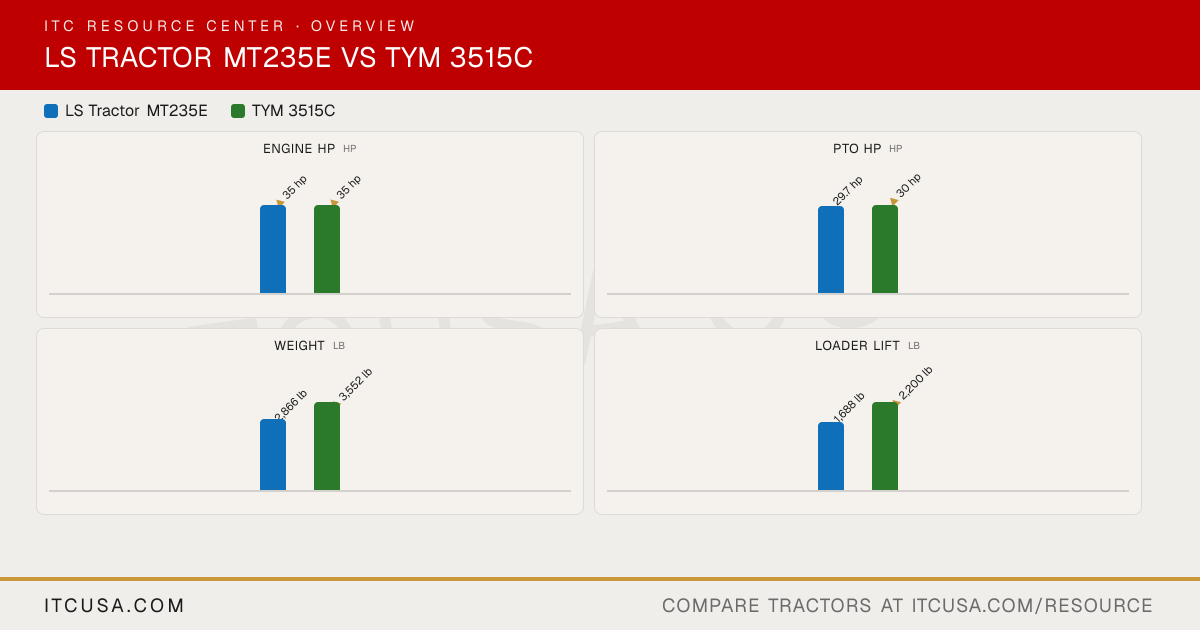

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT235E	TYM3515C

▶Engine
Engine Manufacturer	LS	TYM
Engine Model	L3C19-D2	T1700N2
Engine Type	3-cylinder, liquid-cooled, diesel, naturally aspirated, CRDI	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	114.7 in³	104.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	29.7 hp	30 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Dry	Dry element
Fuel System	CRDI (Delphi common rail direct injection)	IDI (indirect injection)
Alternator	70 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Gear pump, engine driven	Dual gear pump
Implement Flow	8.2 gpm	7.7 gpm
Steering Flow	4.1 gpm	4.2 gpm
Total Hydraulic Flow	12.3 gpm	11.9 gpm
Overall Hydraulic Pump Flow	12.3 gpm	11.9 gpm
Hydraulic System Type	Open center system, position control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Loader: 4 / Rear: 0
No. of Optional Remote Valves	1 or 2 pairs (optional)	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	7.4 gal	7.1 gal
Coolant Capacity	1.9 gal	5.3 qt
Crankcase Capacity	1.5 gal	4.5 qt
Transmission / Hydraulic System Capacity	8.5 gal	9.8 gal
Front Axle Fluid Capacity	1.7 gal	6.8 qt
▶PTO & Hitch
PTO Type	Independent (wet disc clutch)	Independent
PTO Rear	Standard (540 rpm)	540 rpm
Mid-PTO Availability	Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	3,306 lb
Hitch Lift Capacity (at 24”)	1,433 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Synchro Shuttle	HST
No. of Speeds	F12 x R12	3-Range
Max Travel Speed (Forward)	14.33 mph	18 mph
Max Travel Speed (Reverse)	13.63 mph	17.95 mph
Clutch	Dry single clutch	None (HST)
Differential Lock & Limited Slip Options	Mechanical pedal type	Differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Suspension seat
Front Axle Type	Front wheel mechanical assist (4WD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	121 in	120.9 in
Overall Width	54 in (R1); 66 in (R4)	55.6 in
Wheelbase	69 in	65.7 in
Ground Clearance	Not Published	12.9 in
Min. Turn Radius without Brakes	10.79 ft (left); 11.02 ft (right)	L: 124.8 in; R: 121.3 in
Height to Top of ROPS	88 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	88.0 in
▶Weight
Tractor Weight (Base)	2,866 lb	3,552 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	4,560 lb
▶Tire Options
Tire Size & Options	R1 agricultural, R4 industrial or R3 turf at no extra cost	R1 Agricultural 7-16 / 11.2-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 25x8.5-14 / 380/70-19.5
R1 Agricultural - Front	7-14	7-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	27x8.5-15, 6PR
R3 Turf - Rear	41x14-20	41x14.00, 4PR
R4 Industrial - Front	25x8.50-14	25x8.5-14, 6PR
R4 Industrial - Rear	43x16-20	380/70-19.5, 6PR
▶Loader & Attachments
Quick Attach Loader System	Not Published	BL150C: Quick attachment assembly
Loader Model	LL3301	BL150C
Loader Lift Height	LL3301: 94 in	BL150C: 104.9 in
Loader Lift Capacity (Full Height)	LL3301: 1,688 lb (at pivot pin, full height)	BL150C: 2,200 lb
Loader Breakout Force	LL3301: 2,855 lb (at pivot pin)	BL150C: 3,422 lb
▶Warranty
Warranty Length & Coverage	6-year limited warranty	24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Find a LS Tractor dealer near you→Find a TYM dealer near you→

LS Tractor MT235E vs TYM 3515C: Quick Answers

Which has more horsepower, the LS Tractor MT235E or the TYM 3515C?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor MT235E or the TYM 3515C?

The TYM 3515C leads on pto hp at 30 hp hp, compared to 29.7 hp hp for the LS Tractor MT235E.

Which is heavier, the LS Tractor MT235E or the TYM 3515C?

The TYM 3515C leads on weight at 3,552 lb lb, compared to 2,866 lb lb for the LS Tractor MT235E.

Which has more loader lift capacity, the LS Tractor MT235E or the TYM 3515C?

The TYM 3515C leads on loader lift at 2,200 lb lb, compared to 1,688 lb lb for the LS Tractor MT235E.

Which has more three-point hitch lift capacity, the LS Tractor MT235E or the TYM 3515C?

The TYM 3515C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the LS Tractor MT235E.
