LS Tractor XR4040 vs New Holland Workmaster 40
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the LS Tractor XR4040 leads 6 categories to 1 (1 tied). Machine pages: LS Tractor XR4040 and New Holland Workmaster 40.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

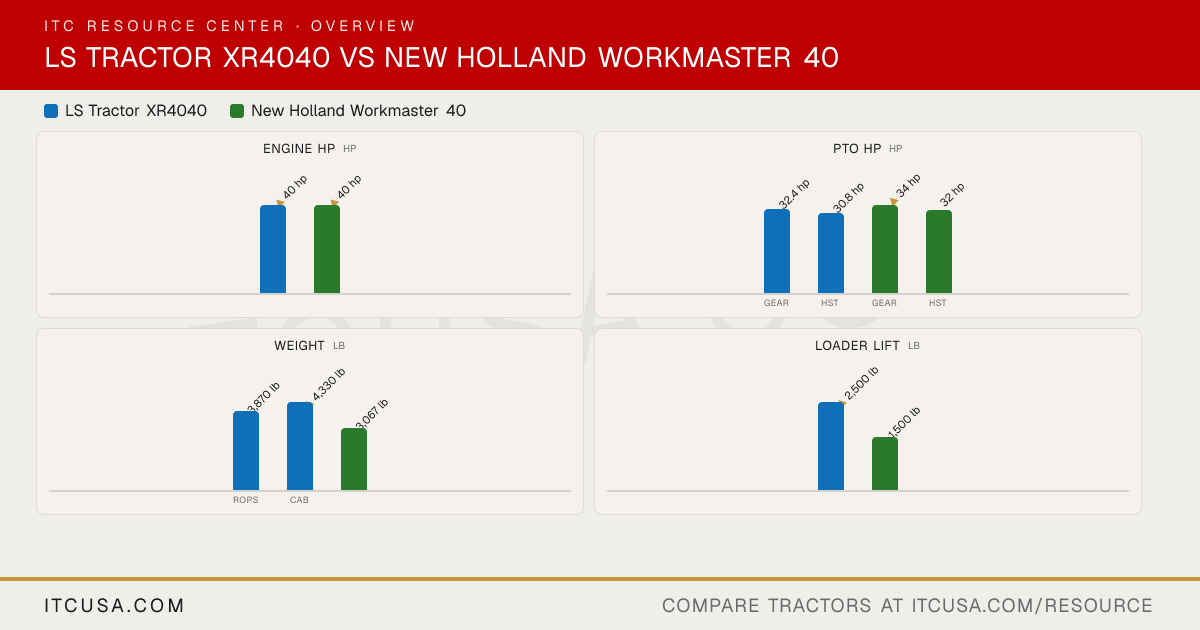

Category Verdict
| Spec | LS Tractor XR4040 | New Holland Workmaster 40 |
|---|---|---|
| Engine HP (hp) | 40 hp | 40 hp |
| PTO HP (hp) | 32.4 hp | ▲ 34 hp |
| Weight (lb) | ▲ 4,330 lb | 3,067 lb |
| Loader Lift (lb) | ▲ 2,500 lb | 1,500 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,469 lb | 1,433 lb |
| Lift Height (in) | ▲ 96.1 in | 91.5 in |
| Breakout Force (lbf) | ▲ 4,354 lbf | 2,700 lbf |
| Hydraulic Flow (gpm) | ▲ 13.7 gpm | 13.5 gpm |
| Travel Speed (mph) | n/a | 14.8 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorXR4040 | New HollandWorkmaster 40 |
|---|
| Engine Manufacturer | Shibaura (ISM) | LS Mtron |
|---|---|---|
| Engine Model | N844L-F | L3C19-T4 |
| Engine Type | 4-cylinder, indirect injection, water-cooled diesel | 3-cylinder, turbocharged, liquid-cooled diesel |
| No. of Cylinders | 4 | 3 |
| Displacement | 135.2 in³ | 114.7 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 40 hp | 40 hp |
| PTO Power | XR4040, XR4040C (gear): 32.4 hp; XR4040H, XR4040HC (HST): 30.8 hp | Gear: 34 hp; HST: 32 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Water-cooled | Pressurized liquid with recirculating bypass |
| Air Cleaner | Dry | Dual element dry air cleaner (primary and inner safety element) |
| Fuel System | Indirect injection | High pressure common rail, ECU-controlled timing |
| Alternator | 85 A, 12 V | 70 A, 12 V |
LS Tractor XR4040 vs New Holland Workmaster 40: Quick Answers
- Which has more horsepower, the LS Tractor XR4040 or the New Holland Workmaster 40?
- They are effectively tied: both machines are rated at 40 hp hp for engine hp.
- Which has more PTO horsepower, the LS Tractor XR4040 or the New Holland Workmaster 40?
- The New Holland Workmaster 40 leads on pto hp at 34 hp hp, compared to 32.4 hp hp for the LS Tractor XR4040.
- Which is heavier, the LS Tractor XR4040 or the New Holland Workmaster 40?
- The LS Tractor XR4040 leads on weight at 4,330 lb lb, compared to 3,067 lb lb for the New Holland Workmaster 40.
- Which has more loader lift capacity, the LS Tractor XR4040 or the New Holland Workmaster 40?
- The LS Tractor XR4040 leads on loader lift at 2,500 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 40.
- Which has more three-point hitch lift capacity, the LS Tractor XR4040 or the New Holland Workmaster 40?
- The LS Tractor XR4040 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 40.
