LS Tractor XJ2025H vs TYM T234

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM T234 leads 5 categories to 3 (1 tied). Machine pages: LS Tractor XJ2025H and TYM T234.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor XJ2025H	TYM T234
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	▲ 18.5 hp	18.3 hp
Weight (lb)	1,609 lb	▲ 1,907 lb
Loader Lift (lb)	1,091 lb	▲ 1,380 lb
3-Pt Lift (24 in) (lb)	1,058 lb	▲ 1,102 lb
Lift Height (in)	85.7 in	▲ 86.9 in
Breakout Force (lbf)	1,426 lbf	▲ 2,059 lbf
Hydraulic Flow (gpm)	▲ 8.5 gpm	6.7 gpm
Travel Speed (mph)	▲ 11.5 mph	9.6 mph

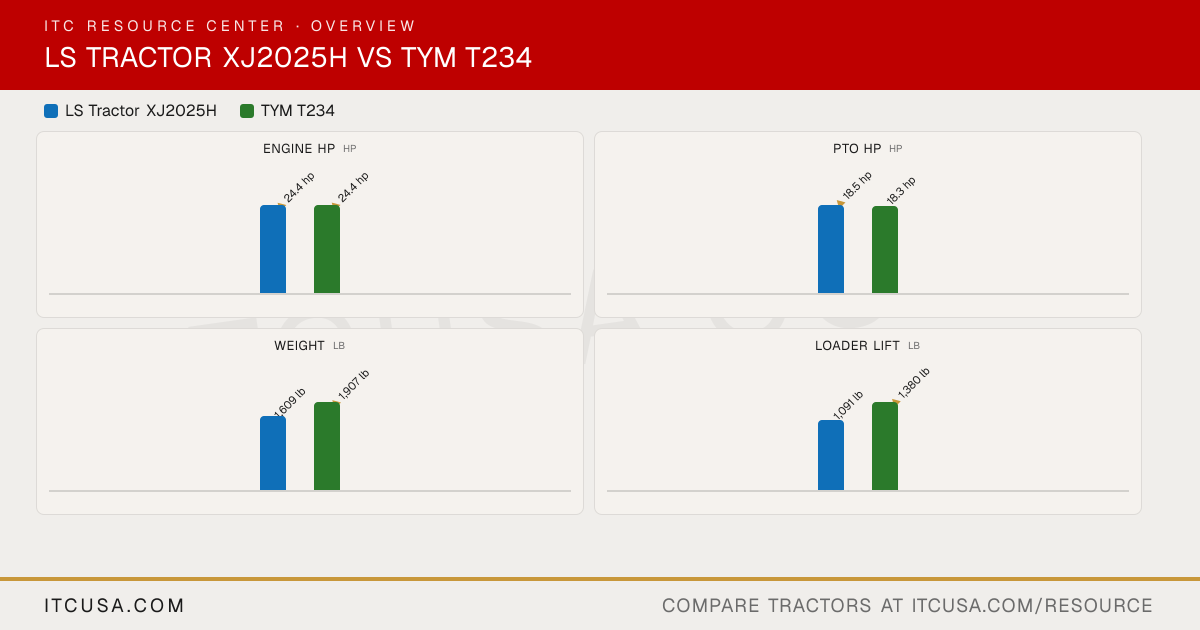

The headline numbers at a glance.

LS Tractor XJ2025HTYM T234

Engine HPhp

▲24.4 hp

PTO HPhp

▲18.5 hp

18.3 hp

Weightlb

1,609 lb

▲1,907 lb

Loader Liftlb

1,091 lb

▲1,380 lb

3-Pt Lift (24 in)lb

1,058 lb

▲1,102 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXJ2025H	TYMT234


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	3-cylinder, indirect injection, water-cooled	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	18.5 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dual dry
Fuel System	Indirect injection	Indirect fuel injection
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Transmission drive	Dual gear pump
Implement Flow	5.9 gpm	4.4 gpm
Steering Flow	2.6 gpm	2.3 gpm
Total Hydraulic Flow	8.5 gpm	6.7 gpm
Overall Hydraulic Pump Flow	8.5 gpm	6.7 gpm
Hydraulic System Type	Position control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	2 quick couplers (optional)	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	1.0 gal	5.9 qt
Crankcase Capacity	1.1 gal	4.5 qt
Transmission / Hydraulic System Capacity	5.3 gal	5.8 gal
Front Axle Fluid Capacity	0.8 gal	4.7 qt

PTO Type	Independent (electro-hydraulic)	Independent
PTO Rear	Standard (540 rpm)	540 rpm
Mid-PTO Availability	Standard (2,000 rpm)	Available
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,534 lb
Hitch Lift Capacity (at 24”)	1,058 lb	1,102 lb
Lift Control Type	Manual position control	Position control

Transmission Type	Hydrostatic Drive	HST
No. of Speeds	2 ranges	Infinite / 2 Range
Max Travel Speed (Forward)	11.5 mph	9.6 mph
Max Travel Speed (Reverse)	7.2 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical pedal type	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed	Not Published

Overall Width	44.9 in	52.8 in
Wheelbase	59 in	58.3 in
Ground Clearance	Not Published	7.71 in
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	105.5 in
Height to Top of ROPS	84.5 in	89.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	103 in (bumper to link)	107.8 in (with 3-point hitch)

Tractor Weight (Base)	1,609 lb	1,907 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Agricultural, Turf, Industrial	R4 Industrial
R1 Agricultural - Front	23X10.50-12	Not Published
R1 Agricultural - Rear	255/75-15.3	Not Published
R3 Turf - Front	23x8.5-12	Not Published
R3 Turf - Rear	33x12-16.5	Not Published
R4 Industrial - Front	23x8.5-12	23x8.5-12
R4 Industrial - Rear	33x12-16.5	12x16.5

Quick Attach Loader System	LL2102: Bobcat-type quick attachment (ISO 24410), latch handle with latch pin	TX2000: Quick attach mechanism
Loader Model	LL2102	TX2000
Loader Lift Height	LL2102: 85.7 in	TX2000: 86.9 in (at pivot pin)
Loader Lift Capacity (Full Height)	LL2102: 1,091 lb (at pivot pin, max height)	TX2000: 1,380 lb (at pivot pin)
Loader Breakout Force	LL2102: 1,426 lb (at pivot pin)	TX2000: 2,059 lb (at pivot pin, ground level)

Warranty Length & Coverage	6-year limited warranty	Not Published

Find a LS Tractor dealer near you Find a TYM dealer near you

LS Tractor XJ2025H vs TYM T234: Quick Answers

Which has more horsepower, the LS Tractor XJ2025H or the TYM T234?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor XJ2025H or the TYM T234?: The LS Tractor XJ2025H leads on pto hp at 18.5 hp hp, compared to 18.3 hp hp for the TYM T234.
Which is heavier, the LS Tractor XJ2025H or the TYM T234?: The TYM T234 leads on weight at 1,907 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.
Which has more loader lift capacity, the LS Tractor XJ2025H or the TYM T234?: The TYM T234 leads on loader lift at 1,380 lb lb, compared to 1,091 lb lb for the LS Tractor XJ2025H.
Which has more three-point hitch lift capacity, the LS Tractor XJ2025H or the TYM T234?: The TYM T234 leads on 3-pt lift (24 in) at 1,102 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.

More Head-to-Heads

Category Verdict

Spec	LS Tractor XJ2025H	TYM T234
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	▲ 18.5 hp	18.3 hp
Weight (lb)	1,609 lb	▲ 1,907 lb
Loader Lift (lb)	1,091 lb	▲ 1,380 lb
3-Pt Lift (24 in) (lb)	1,058 lb	▲ 1,102 lb
Lift Height (in)	85.7 in	▲ 86.9 in
Breakout Force (lbf)	1,426 lbf	▲ 2,059 lbf
Hydraulic Flow (gpm)	▲ 8.5 gpm	6.7 gpm
Travel Speed (mph)	▲ 11.5 mph	9.6 mph

The headline numbers at a glance.

LS Tractor XJ2025HTYM T234

Engine HPhp

▲24.4 hp

PTO HPhp

▲18.5 hp

18.3 hp

Weightlb

1,609 lb

▲1,907 lb

Loader Liftlb

1,091 lb

▲1,380 lb

3-Pt Lift (24 in)lb

1,058 lb

▲1,102 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXJ2025H	TYMT234


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	3-cylinder, indirect injection, water-cooled	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	18.5 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dual dry
Fuel System	Indirect injection	Indirect fuel injection
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Transmission drive	Dual gear pump
Implement Flow	5.9 gpm	4.4 gpm
Steering Flow	2.6 gpm	2.3 gpm
Total Hydraulic Flow	8.5 gpm	6.7 gpm
Overall Hydraulic Pump Flow	8.5 gpm	6.7 gpm
Hydraulic System Type	Position control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	2 quick couplers (optional)	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	1.0 gal	5.9 qt
Crankcase Capacity	1.1 gal	4.5 qt
Transmission / Hydraulic System Capacity	5.3 gal	5.8 gal
Front Axle Fluid Capacity	0.8 gal	4.7 qt

PTO Type	Independent (electro-hydraulic)	Independent
PTO Rear	Standard (540 rpm)	540 rpm
Mid-PTO Availability	Standard (2,000 rpm)	Available
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,534 lb
Hitch Lift Capacity (at 24”)	1,058 lb	1,102 lb
Lift Control Type	Manual position control	Position control

Transmission Type	Hydrostatic Drive	HST
No. of Speeds	2 ranges	Infinite / 2 Range
Max Travel Speed (Forward)	11.5 mph	9.6 mph
Max Travel Speed (Reverse)	7.2 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical pedal type	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed	Not Published

Overall Width	44.9 in	52.8 in
Wheelbase	59 in	58.3 in
Ground Clearance	Not Published	7.71 in
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	105.5 in
Height to Top of ROPS	84.5 in	89.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	103 in (bumper to link)	107.8 in (with 3-point hitch)

Tractor Weight (Base)	1,609 lb	1,907 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Agricultural, Turf, Industrial	R4 Industrial
R1 Agricultural - Front	23X10.50-12	Not Published
R1 Agricultural - Rear	255/75-15.3	Not Published
R3 Turf - Front	23x8.5-12	Not Published
R3 Turf - Rear	33x12-16.5	Not Published
R4 Industrial - Front	23x8.5-12	23x8.5-12
R4 Industrial - Rear	33x12-16.5	12x16.5

Quick Attach Loader System	LL2102: Bobcat-type quick attachment (ISO 24410), latch handle with latch pin	TX2000: Quick attach mechanism
Loader Model	LL2102	TX2000
Loader Lift Height	LL2102: 85.7 in	TX2000: 86.9 in (at pivot pin)
Loader Lift Capacity (Full Height)	LL2102: 1,091 lb (at pivot pin, max height)	TX2000: 1,380 lb (at pivot pin)
Loader Breakout Force	LL2102: 1,426 lb (at pivot pin)	TX2000: 2,059 lb (at pivot pin, ground level)

Warranty Length & Coverage	6-year limited warranty	Not Published

Find a LS Tractor dealer near you Find a TYM dealer near you

LS Tractor XJ2025H vs TYM T234: Quick Answers

Which has more horsepower, the LS Tractor XJ2025H or the TYM T234?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor XJ2025H or the TYM T234?

The LS Tractor XJ2025H leads on pto hp at 18.5 hp hp, compared to 18.3 hp hp for the TYM T234.

Which is heavier, the LS Tractor XJ2025H or the TYM T234?

The TYM T234 leads on weight at 1,907 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.

Which has more loader lift capacity, the LS Tractor XJ2025H or the TYM T234?

The TYM T234 leads on loader lift at 1,380 lb lb, compared to 1,091 lb lb for the LS Tractor XJ2025H.

Which has more three-point hitch lift capacity, the LS Tractor XJ2025H or the TYM T234?

The TYM T234 leads on 3-pt lift (24 in) at 1,102 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.
