Mahindra 5155 Shuttle vs New Holland T3.60F

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 4 measurable specs, this matchup is a dead heat: 2 categories to the Mahindra 5155 Shuttle, 2 to the New Holland T3.60F. Machine pages: Mahindra 5155 Shuttle and New Holland T3.60F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 5155 Shuttle	New Holland T3.60F
Engine HP (hp)	▲ 55 hp	54 hp
PTO HP (hp)	▲ 47 hp	40 hp
Loader Lift (lb)	3,100 lb	—
3-Pt Lift (24 in) (lb)	3,748 lb	▲ 4,000 lb
Lift Height (in)	122 in	—
Breakout Force (lbf)	5,200 lbf	—
Hydraulic Flow (gpm)	13.3 gpm	▲ 20.2 gpm
Travel Speed (mph)	17.9 mph	—

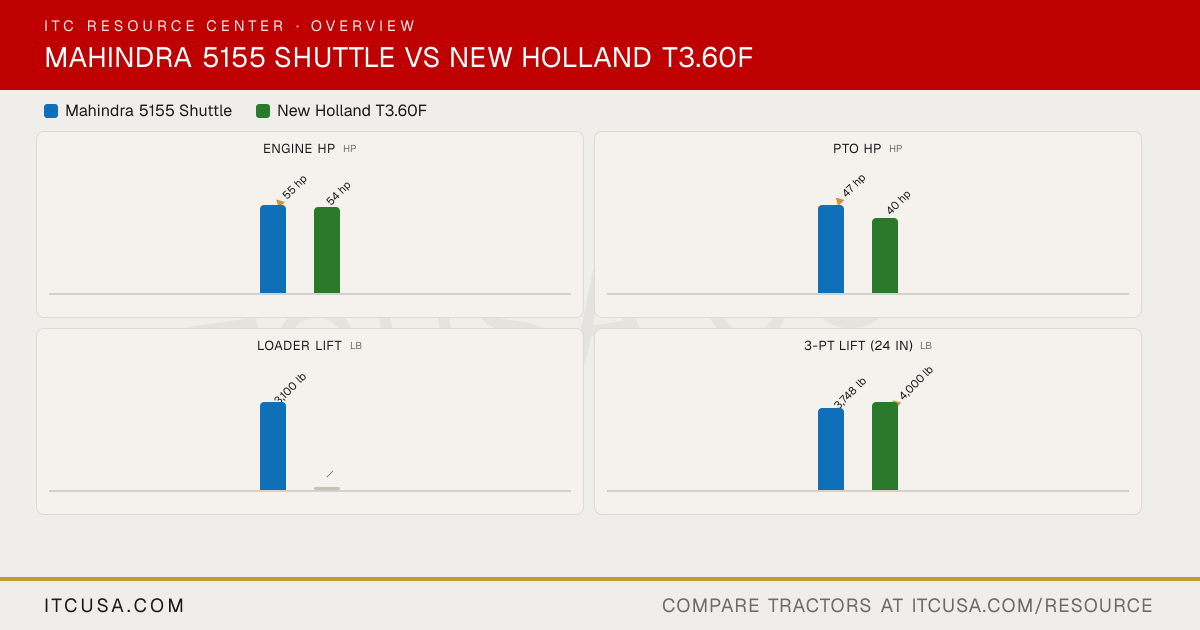

The headline numbers at a glance.

Mahindra 5155 ShuttleNew Holland T3.60F

Engine HPhp

▲55 hp

54 hp

PTO HPhp

▲47 hp

40 hp

Weightlb

—

Loader Liftlb

3,100 lb

—

3-Pt Lift (24 in)lb

3,748 lb

▲4,000 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra5155 Shuttle	New HollandT3.60F


PTO Power	47 hp @ 300 rpm	40 hp
Alternator	55 A	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Four-stroke, direct-injection, turbocharged and intercooled, water-cooled diesel	Turbocharged, intercooled 3-cylinder diesel
Fuel System	Direct injection	Common rail fuel injection
Displacement	166.2 in³	179 in³
No. of Cylinders	4	3
Rated Engine Speed	2300 rpm	2300 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	Mahindra	FPT Industrial
Engine Power (Gross)	55 hp @ 300 rpm	54 hp
Engine Emissions Constraints	No DPF	Tier 4B CEGR + DOC

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	5-Year limited powertrain warranty	Not Published

Pump Type	Not Published	Dual-pump
Steering Flow	4.62 gpm	7.6 gpm
Implement Flow	8.71 gpm	12.6 gpm
Total Hydraulic Flow	13.3 gpm	20.2 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	13.3 gpm	20.2 gpm
No. of Optional Remote Valves	1 additional (expandable to 2 total)	3
No. of Standard Remote Valves	1 standard	2

PTO Rear	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm	540/540E
PTO Type	Independent	Not Published
Lift Control Type	Position & draft control	Lift-O-Matic
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Not Applicable	Not Published
Category, 3-Point Hitch	CAT I & II with telescopic stabilizers & flex links	Not Published
Hitch Lift Capacity (at 24”)	3748 lbs	4,000 lb

R3 Turf - Rear	Not Applicable	Not Published
R3 Turf - Front	Not Applicable	Not Published
Tire Size & Options	R1 Agricultural or R4 Industrial	Not Published
R4 Industrial - Rear	16.9X24	Not Published
R4 Industrial - Front	10.5/80X18	Not Published
R1 Agricultural - Rear	14.9X28	320/70R20
R1 Agricultural - Front	9.5X20	Not Published

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	17.1 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	122 inches	Not Published
Loader Breakout Force	5200 lbs	Not Published
Quick Attach Loader System	5155-1.1 gal: Skid-steer style quick-attach coupler	Not Published
Loader Lift Capacity (Full Height)	3100 lbs	Not Published

Clutch	Dual dry, with cerametallic lining	Not Published
No. of Speeds	12F / 12R	12F/12R
Transmission Type	Full synchromesh with forward/reverse synchro shuttle & constant mesh range	12x12 Mechanical Shuttle
Max Travel Speed (Forward)	17.9 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Fully-enclosed 7-inch diameter dry disc	Not Published
Steering	Hydrostatic power steering with tilt steering wheel	Not Published
Frame Type	Not Published	Straddle-deck platform
Front Axle Type	Not Published	4WD front axle (electronic engagement)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat with soft-coil suspension	Vinyl suspension seat

Wheelbase	74.8 inches	73 in
Overall Width	80.3 inches	57 in
Ground Clearance	16.4 inches	Not Published
Height to Top of ROPS	60.6 inches	97 in
Height to Top of Cab Model	Not Applicable	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	140.0 inches	143 in
