Mahindra eMax 20S HST Cab vs TYM 1905

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Mahindra eMax 20S HST Cab leads 4 categories to 1 (4 tied). Machine pages: Mahindra eMax 20S HST Cab and TYM 1905.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra eMax 20S HST Cab	TYM 1905
Engine HP (hp)	▲ 19.4 hp	19 hp
PTO HP (hp)	▲ 14.2 hp	13.4 hp
Weight (lb)	▲ 1,800 lb	1,433 lb
Loader Lift (lb)	617 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 680 lb	679 lb
Lift Height (in)	71.3 in	71.3 in
Breakout Force (lbf)	1,235 lbf	1,235 lbf
Hydraulic Flow (gpm)	6.2 gpm	▲ 6.3 gpm
Travel Speed (mph)	7.8 mph	7.8 mph

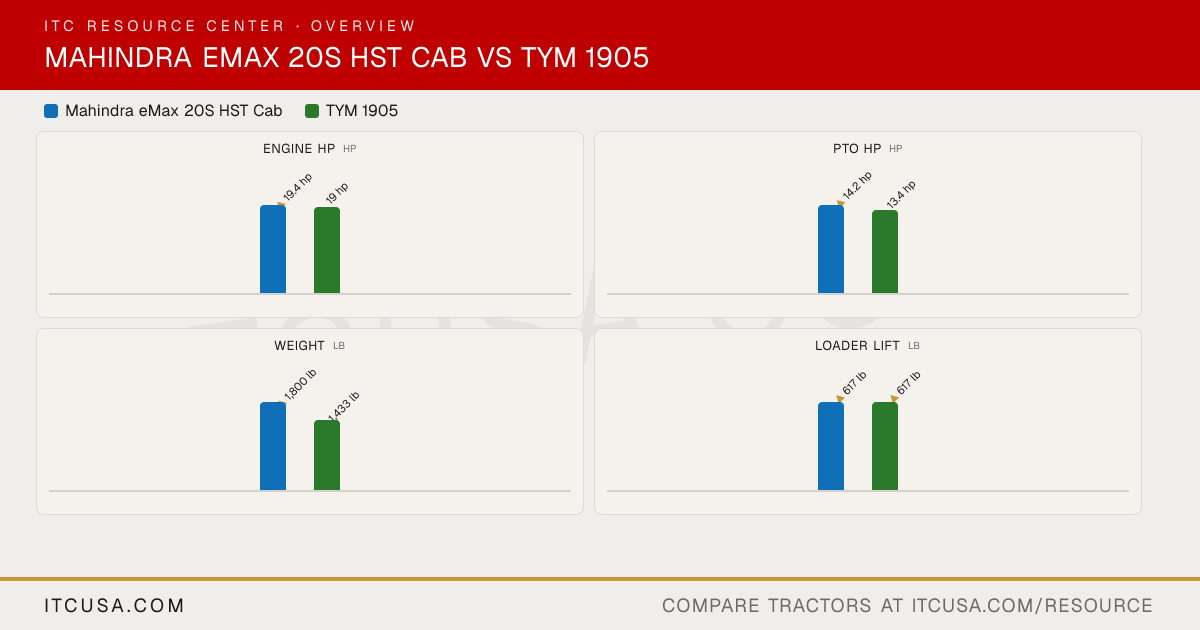

The headline numbers at a glance.

Mahindra eMax 20S HST CabTYM 1905

Engine HPhp

▲19.4 hp

19 hp

PTO HPhp

▲14.2 hp

13.4 hp

Weightlb

▲1,800 lb

1,433 lb

Loader Liftlb

▲617 lb

3-Pt Lift (24 in)lb

▲680 lb

679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 20S HST Cab	TYM1905


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV74F	3TNV74F
Engine Type	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine	Diesel, swirl chamber combustion, naturally aspirated
No. of Cylinders	3	3
Displacement	60.6 in³	60.6 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	19.4 hp	19 hp
PTO Power	14.2 hp	13.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry, single filter element
Fuel System	Indirect Injection	Indirect injection (swirl chamber)
Alternator	45 A, 12 V	40 A, 12 V

Pump Type	Not Published	Single gear pump with flow divider
Implement Flow	4.1 gpm	4.17 gpm
Steering Flow	2.11 gpm	2.11 gpm
Total Hydraulic Flow	6.2 gpm	6.28 gpm
Overall Hydraulic Pump Flow	6.2 gpm	Not Published
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	3.7 qt
Crankcase Capacity	Not Published	2.1 qt
Transmission / Hydraulic System Capacity	Not Published	3.6 gal
Front Axle Fluid Capacity	Not Published	2.6 qt

PTO Type	Independent	Transmission-driven (over-running clutch)
PTO Rear	540 @ 2942 rpm	Not Published
Mid-PTO Availability	Available; 2500 @ 2958 rpm	Not Published
Category, 3-Point Hitch	CAT I Narrow with Check Chains	Category I
Hitch Lift Capacity	1100 lb	1,100 lb
Hitch Lift Capacity (at 24”)	680 lb	679 lb
Lift Control Type	Inching control valve	Position control

Transmission Type	HST - 2 range	Hydrostatic (HST)
No. of Speeds	Infinite	Infinite (2-range HST)
Max Travel Speed (Forward)	7.8 mph	7.8 mph
Max Travel Speed (Reverse)	Not Published	7.8 mph
Clutch	Dry-Single	Dry, single
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet Disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	94.2 in
Overall Width	44.5 in	44.5 in
Wheelbase	53.1 in	53.1 in
Ground Clearance	8.3 in	8.3 in
Min. Turn Radius without Brakes	7.2 ft	Not Published
Height to Top of ROPS	Not Published	86.6 in
Height to Top of ROPS (folded)	Not Published	60 in
Height to Top of Cab Model	79.6 in	Not Published

Tractor Weight (Base)	1800 lb	1,433 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	2219 lb	Not Published

Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	Turf: 18x8.5-10 front / 26x12-12 rear; Industrial: 18x8.5-10 front / 26x12-12 rear
R1 Agricultural - Front	18x8.5-10	16x7.50-9
R1 Agricultural - Rear	26x12-12	24x12.00-12
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12-12	Not Published
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12-12	26x12-12

Quick Attach Loader System	23L: Standard skid steer style loader couplers provide fast and easy front implement connection.	BL90: Standard pin-on (skid steer quick-attach optional)
Loader Model	23L	BL90
Loader Lift Height	23L: 71.3 in	BL90: 71.3 in
Loader Lift Capacity (Full Height)	23L: 617 lb (at pivot pin)	BL90: 617 lb
Loader Breakout Force	23L: 1235 lb (at pivot pin)	BL90: 1,235 lbf

Warranty Length & Coverage	Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases	2 years or 1,000 hours bumper-to-bumper; 7 years or 2,000 hours powertrain and engine (whichever comes first)

Find a Mahindra dealer near you Find a TYM dealer near you

Mahindra eMax 20S HST Cab vs TYM 1905: Quick Answers

Which has more horsepower, the Mahindra eMax 20S HST Cab or the TYM 1905?: The Mahindra eMax 20S HST Cab leads on engine hp at 19.4 hp hp, compared to 19 hp hp for the TYM 1905.
Which has more PTO horsepower, the Mahindra eMax 20S HST Cab or the TYM 1905?: The Mahindra eMax 20S HST Cab leads on pto hp at 14.2 hp hp, compared to 13.4 hp hp for the TYM 1905.
Which is heavier, the Mahindra eMax 20S HST Cab or the TYM 1905?: The Mahindra eMax 20S HST Cab leads on weight at 1,800 lb lb, compared to 1,433 lb lb for the TYM 1905.
Which has more loader lift capacity, the Mahindra eMax 20S HST Cab or the TYM 1905?: They are effectively tied: both machines are rated at 617 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Mahindra eMax 20S HST Cab or the TYM 1905?: The Mahindra eMax 20S HST Cab leads on 3-pt lift (24 in) at 680 lb lb, compared to 679 lb lb for the TYM 1905.

More Head-to-Heads

Category Verdict

Spec	Mahindra eMax 20S HST Cab	TYM 1905
Engine HP (hp)	▲ 19.4 hp	19 hp
PTO HP (hp)	▲ 14.2 hp	13.4 hp
Weight (lb)	▲ 1,800 lb	1,433 lb
Loader Lift (lb)	617 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 680 lb	679 lb
Lift Height (in)	71.3 in	71.3 in
Breakout Force (lbf)	1,235 lbf	1,235 lbf
Hydraulic Flow (gpm)	6.2 gpm	▲ 6.3 gpm
Travel Speed (mph)	7.8 mph	7.8 mph

The headline numbers at a glance.

Mahindra eMax 20S HST CabTYM 1905

Engine HPhp

▲19.4 hp

19 hp

PTO HPhp

▲14.2 hp

13.4 hp

Weightlb

▲1,800 lb

1,433 lb

Loader Liftlb

▲617 lb

3-Pt Lift (24 in)lb

▲680 lb

679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 20S HST Cab	TYM1905


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV74F	3TNV74F
Engine Type	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine	Diesel, swirl chamber combustion, naturally aspirated
No. of Cylinders	3	3
Displacement	60.6 in³	60.6 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	19.4 hp	19 hp
PTO Power	14.2 hp	13.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry, single filter element
Fuel System	Indirect Injection	Indirect injection (swirl chamber)
Alternator	45 A, 12 V	40 A, 12 V

Pump Type	Not Published	Single gear pump with flow divider
Implement Flow	4.1 gpm	4.17 gpm
Steering Flow	2.11 gpm	2.11 gpm
Total Hydraulic Flow	6.2 gpm	6.28 gpm
Overall Hydraulic Pump Flow	6.2 gpm	Not Published
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	3.7 qt
Crankcase Capacity	Not Published	2.1 qt
Transmission / Hydraulic System Capacity	Not Published	3.6 gal
Front Axle Fluid Capacity	Not Published	2.6 qt

PTO Type	Independent	Transmission-driven (over-running clutch)
PTO Rear	540 @ 2942 rpm	Not Published
Mid-PTO Availability	Available; 2500 @ 2958 rpm	Not Published
Category, 3-Point Hitch	CAT I Narrow with Check Chains	Category I
Hitch Lift Capacity	1100 lb	1,100 lb
Hitch Lift Capacity (at 24”)	680 lb	679 lb
Lift Control Type	Inching control valve	Position control

Transmission Type	HST - 2 range	Hydrostatic (HST)
No. of Speeds	Infinite	Infinite (2-range HST)
Max Travel Speed (Forward)	7.8 mph	7.8 mph
Max Travel Speed (Reverse)	Not Published	7.8 mph
Clutch	Dry-Single	Dry, single
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet Disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	94.2 in
Overall Width	44.5 in	44.5 in
Wheelbase	53.1 in	53.1 in
Ground Clearance	8.3 in	8.3 in
Min. Turn Radius without Brakes	7.2 ft	Not Published
Height to Top of ROPS	Not Published	86.6 in
Height to Top of ROPS (folded)	Not Published	60 in
Height to Top of Cab Model	79.6 in	Not Published

Tractor Weight (Base)	1800 lb	1,433 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	2219 lb	Not Published

Tire Size & Options	R1 Agriculture, R3 Turf, R4 Industrial	Turf: 18x8.5-10 front / 26x12-12 rear; Industrial: 18x8.5-10 front / 26x12-12 rear
R1 Agricultural - Front	18x8.5-10	16x7.50-9
R1 Agricultural - Rear	26x12-12	24x12.00-12
R3 Turf - Front	18x8.5-10	Not Published
R3 Turf - Rear	26x12-12	Not Published
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12-12	26x12-12

Quick Attach Loader System	23L: Standard skid steer style loader couplers provide fast and easy front implement connection.	BL90: Standard pin-on (skid steer quick-attach optional)
Loader Model	23L	BL90
Loader Lift Height	23L: 71.3 in	BL90: 71.3 in
Loader Lift Capacity (Full Height)	23L: 617 lb (at pivot pin)	BL90: 617 lb
Loader Breakout Force	23L: 1235 lb (at pivot pin)	BL90: 1,235 lbf

Warranty Length & Coverage	Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases	2 years or 1,000 hours bumper-to-bumper; 7 years or 2,000 hours powertrain and engine (whichever comes first)

Find a Mahindra dealer near you Find a TYM dealer near you

Mahindra eMax 20S HST Cab vs TYM 1905: Quick Answers

Which has more horsepower, the Mahindra eMax 20S HST Cab or the TYM 1905?

The Mahindra eMax 20S HST Cab leads on engine hp at 19.4 hp hp, compared to 19 hp hp for the TYM 1905.

Which has more PTO horsepower, the Mahindra eMax 20S HST Cab or the TYM 1905?

The Mahindra eMax 20S HST Cab leads on pto hp at 14.2 hp hp, compared to 13.4 hp hp for the TYM 1905.

Which is heavier, the Mahindra eMax 20S HST Cab or the TYM 1905?

The Mahindra eMax 20S HST Cab leads on weight at 1,800 lb lb, compared to 1,433 lb lb for the TYM 1905.

Which has more loader lift capacity, the Mahindra eMax 20S HST Cab or the TYM 1905?

They are effectively tied: both machines are rated at 617 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Mahindra eMax 20S HST Cab or the TYM 1905?

The Mahindra eMax 20S HST Cab leads on 3-pt lift (24 in) at 680 lb lb, compared to 679 lb lb for the TYM 1905.
