Across 7 measurable specs, the Solis S24 Shuttle XL leads 3 categories to 2 (2 tied). Machine pages: Mahindra eMax 25L and Solis S24 Shuttle XL.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra eMax 25L | Solis S24 Shuttle XL |
|---|
| Engine HP (hp) | 24 hp | 24 hp |
| PTO HP (hp) | 16.9 hp | n/a |
| Weight (lb) | 1,638 lb | ▲ 2,513 lb |
| Loader Lift (lb) | 900 lb | ▲ 1,411 lb |
| 3-Pt Lift (24 in) (lb) | 1,323 lb | 1,323 lb |
| Lift Height (in) | 75.3 in | ▲ 85 in |
| Breakout Force (lbf) | ▲ 2,000 lbf | 1,146 lbf |
| Hydraulic Flow (gpm) | ▲ 7.1 gpm | 6.5 gpm |

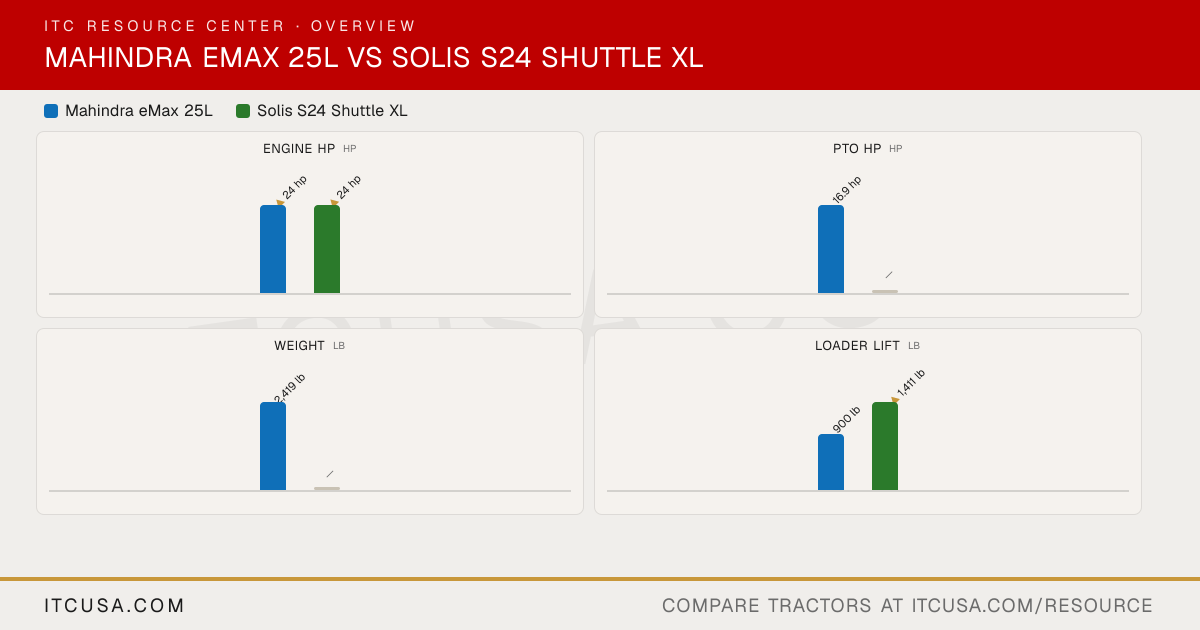

The headline numbers at a glance.
Mahindra eMax 25LSolis S24 Shuttle XL
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | MahindraeMax 25L | SolisS24 Shuttle XL |
|---|
|
|---|
| Engine Manufacturer | Kukje | Mitsubishi |
|---|
| Engine Model | A1100N2 | S3L2 |
|---|
| Engine Type | Four-stroke, naturally aspirated, indirect injection, water-cooled diesel | 3-cylinder, naturally aspirated diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 71.7 in³ | 80.42 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2500 rpm |
|---|
| Engine Power (Gross) | 24 hp | 24 hp |
|---|
| PTO Power | 16.9 hp | Not Published |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Indirect Injection | Not Published |
|---|
| Alternator | 50 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 4.5 gpm | Not Published |
|---|
| Steering Flow | Not Published | Not Published |
|---|
| Total Hydraulic Flow | 7.1 gpm | 6.5 gpm |
|---|
| Overall Hydraulic Pump Flow | 7.1 gpm | Not Published |
|---|
| Hydraulic System Type | Open Center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | 1 |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 5.8 gal | 5.8 gal |
|---|
| Coolant Capacity | 3.7 qt | Not Published |
|---|
| Crankcase Capacity | 2.3 qt | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 15.3 qt | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Mechanical |
|---|
| PTO Rear | 540 @ 2550 rpm | 540/540E rpm |
|---|
| Mid-PTO Availability | Available; 2000 @ 2550 rpm | Not Published |
|---|
| Category, 3-Point Hitch | CAT I with Check Chains | Category I (CAT-1N) |
|---|
| Hitch Lift Capacity | 1,323 lb | 1,323 lb |
|---|
| Hitch Lift Capacity (at 24”) | Not Published | Not Published |
|---|
| Lift Control Type | Not Published | Not Published |
|---|
|
|---|
| Transmission Type | HST - 2 range | Constant mesh with synchromesh shuttle transmission |
|---|
| No. of Speeds | Infinite | 9 forward, 9 reverse |
|---|
| Max Travel Speed (Forward) | Not Published | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Clutch | Dry-Single | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock | Differential lock standard |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Power steering |
|---|
| Brakes | Wet Disc | Oil immersed brakes, mechanical foot operated |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Four wheel drive (4WD) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 45.8 in | 47.83 in |
|---|
| Wheelbase | 57.5 in | 61.8 in |
|---|
| Ground Clearance | 9.4 in | 9.44 in (front axle) |
|---|
| Min. Turn Radius without Brakes | 7.2 ft | Not Published |
|---|
| Height to Top of ROPS | 91.3 in | 91.53 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 78.2 in | Not Published |
|---|
| Overall Length | 100.5 in | 113.98 in |
|---|
|
|---|
| Tractor Weight (Base) | 1,638 lb | 2,513 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | 2,419 lb (1,870 + 549, computed; 25LSK loader shipping weight) | Not Published |
|---|
|
|---|
| Tire Size & Options | AG, IND, TURF | Industrial: 23x8.50-12 & 33x15.5-16.5; Turf 1: 23x8.50-12 & 33x15.5-16.5; Turf 2: 25x8.50-14 & 13.6x16; Agri 1: 6x12 & 8.3x20; Agri 2: 7x14 & 8.3x24; Radial Agri: 6.5/80-12 & 280/70 R18; Galaxy Pro: 220/55 R12 & 280/70 R16 |
|---|
| R1 Agricultural - Front | 6x12 | 6x12; 7x14; 6.5/80-12 |
|---|
| R1 Agricultural - Rear | 9.5x16 | 8.3x20; 8.3x24; 280/70R18 |
|---|
| R3 Turf - Front | 20x8-10 | 23x8.50-12; 25x8.50-14 |
|---|
| R3 Turf - Rear | 29x12.5-15 | 33x15.5-16.5; 13.6x16 |
|---|
| R4 Industrial - Front | 20x8-10 | 23x8.50-12 |
|---|
| R4 Industrial - Rear | 27x12.5-15 | 33x15.5-16.5 |
|---|
|
|---|
| Quick Attach Loader System | 25LSK: Skid steer style quick coupler, standard | Skid steer quick attach |
|---|
| Loader Model | 25LSK | XB24 (MSL) |
|---|
| Loader Lift Height | 25LSK: 75.3 in | XB24: 85 in (at pivot pin) |
|---|
| Loader Lift Capacity (Full Height) | 25LSK: 900 lb | XB24: 1,411 lb (at pivot pin) |
|---|
| Loader Breakout Force | 25LSK: 2,000 lb | XB24: 1,146 lb (at pivot pin, dig position) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | 3 year full machine warranty; 7 year powertrain warranty |
|---|
|
|---|
| Accessories that fit | | None tagged yet |
|---|
Mahindra eMax 25L vs Solis S24 Shuttle XL: Quick Answers
- Which has more horsepower, the Mahindra eMax 25L or the Solis S24 Shuttle XL?
- They are effectively tied: both machines are rated at 24 hp hp for engine hp.
- Which is heavier, the Mahindra eMax 25L or the Solis S24 Shuttle XL?
- The Solis S24 Shuttle XL leads on weight at 2,513 lb lb, compared to 1,638 lb lb for the Mahindra eMax 25L.
- Which has more loader lift capacity, the Mahindra eMax 25L or the Solis S24 Shuttle XL?
- The Solis S24 Shuttle XL leads on loader lift at 1,411 lb lb, compared to 900 lb lb for the Mahindra eMax 25L.
- Which has more three-point hitch lift capacity, the Mahindra eMax 25L or the Solis S24 Shuttle XL?
- They are effectively tied: both machines are rated at 1,323 lb lb for 3-pt lift (24 in).
