Massey Ferguson 1533 vs New Holland TC33D

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Massey Ferguson 1533 leads 5 categories to 1 (1 tied). Machine pages: Massey Ferguson 1533 and New Holland TC33D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1533	New Holland TC33D
Engine HP (hp)	33 hp	33 hp
PTO HP (hp)	26 hp	▲ 28.6 hp
Weight (lb)	▲ 3,384 lb	2,588 lb
Loader Lift (lb)	▲ 1,900 lb	875 lb
3-Pt Lift (24 in) (lb)	▲ 2,800 lb	1,635 lb
Lift Height (in)	▲ 102 in	100.8 in
Breakout Force (lbf)	n/a	2,344 lbf
Hydraulic Flow (gpm)	▲ 15.1 gpm	12.7 gpm
Travel Speed (mph)	n/a	14.3 mph

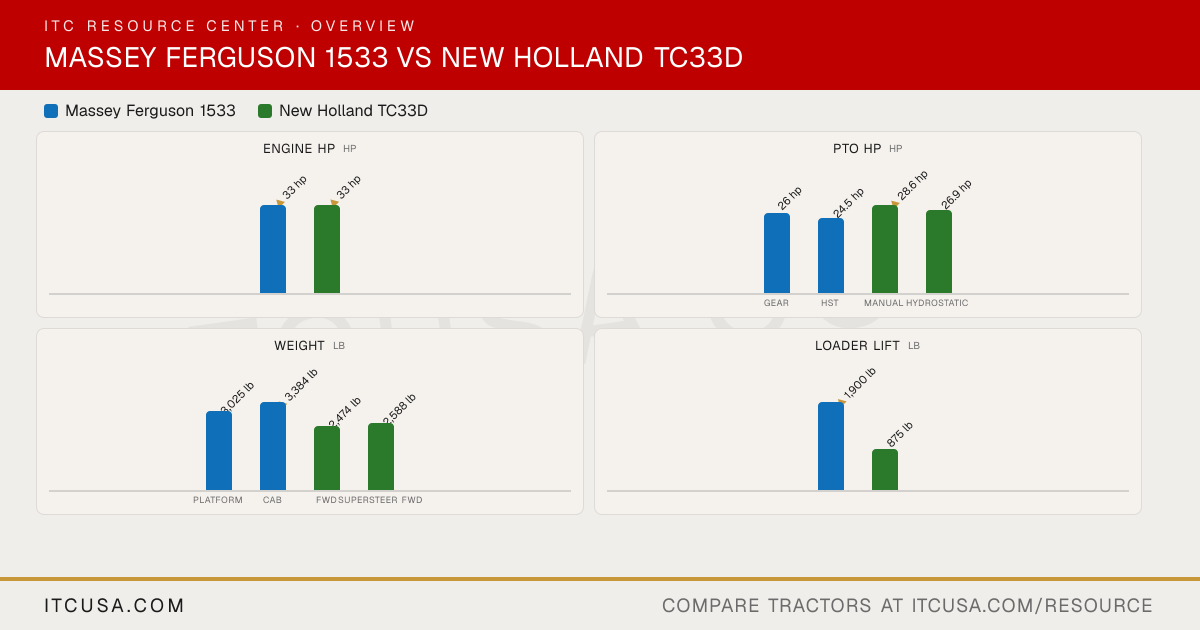

The headline numbers at a glance.

Massey Ferguson 1533New Holland TC33D

Engine HPhp

▲33 hp

PTO HPhp

26 hp

24.5 hp

▲28.6 hp

26.9 hp

GearHSTManualHydrostatic

Weightlb

3,025 lb

▲3,384 lb

2,474 lb

2,588 lb

PlatformCabFWDSuperSteer FWD

Loader Liftlb

▲1,900 lb

875 lb

3-Pt Lift (24 in)lb

▲2,800 lb

1,635 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1533	New HollandTC33D


Engine Manufacturer	Iseki	Shibaura
Engine Model	Not Published	Not Published
Engine Type	3-cylinder liquid-cooled diesel	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.4 in³	91.3 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	33 hp	33 hp
PTO Power	Gear: 26 hp; HST: 24.5 hp	Manual: 28.6 hp; Hydrostatic: 26.9 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Not Published	Not Published
Implement Flow	9.1 gpm	7.6 gpm
Steering Flow	SynchroShuttle: 4.9 gpm; HST and PowerShuttle: 6 gpm	5.1 gpm
Total Hydraulic Flow	SynchroShuttle: 14.0 gpm; HST and PowerShuttle: 15.1 gpm	12.7 gpm
Overall Hydraulic Pump Flow	Not Published	12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	9.1 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2 spool optional	Not Published

Fuel Tank Capacity	10.6 gal	7.3 gal
Coolant Capacity	7.1 qt	Not Published
Crankcase Capacity	5 qt	Not Published
Transmission / Hydraulic System Capacity	32.8 qt	Not Published
Front Axle Fluid Capacity	7.9 qt	Not Published

PTO Type	Independent, electro-hydraulic control	Live
PTO Rear	540 rpm	540 rpm (live)
Mid-PTO Availability	Optional, 2000 rpm	Manual: transmission-driven 2000 rpm (DIA); Hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,800 lb	Not Published
Hitch Lift Capacity (at 24”)	Not Published	1,635 lb
Lift Control Type	Position control with rate of drop control	Not Published

Transmission Type	8x8 SynchroShuttle (platform only), 12x12 PowerShuttle, or 3-range hydrostatic with cruise (platform only)	Manual: 9x3 gear; Hydrostatic: 3-range hydrostatic
No. of Speeds	Not Published	Manual: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	Not Published	Manual: 12.8 mph; Hydrostatic: 14.3 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet multi-disc (PowerShuttle)	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Frame Type	Semi-flat isolated platform, folding ROPS	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable suspension seat with retractable seat belt and adjustable armrest	Not Published
Front Axle Type	4WD front axle, push-pull engagement lever	FWD (standard); SuperSteer FWD with Sensitrak clutch (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	121.0 in	FWD: 106.2 in; SuperSteer FWD: 115.3 in
Overall Width	62.0 in	54.3 in
Wheelbase	70.0 in	FWD: 63.0 in; SuperSteer FWD: 72.0 in
Ground Clearance	14.0 in	14.0 in
Min. Turn Radius without Brakes	Not Published	FWD: 96.5 in; SuperSteer FWD: 93.8 in (with brake applied)
Height to Top of ROPS	87.4 in	87.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Platform: 3,025 lb; Cab: 3,384 lb	FWD: 2,474 lb; SuperSteer FWD: 2,588 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)	R1 Ag, R3 Turf (including Galaxy Turf Special), R4 Industrial; FWD only (2WD not available)
R1 Agricultural - Front	8-16	7x14 (FWD)
R1 Agricultural - Rear	12.4-24 (13.6-24 optional)	11.2x24
R3 Turf - Front	27x8.50-15 (LSW305 R343 optional)	24x8.50-14 (FWD); Galaxy 25/10.50LLx15
R3 Turf - Rear	41x14.00-20 (LSW610 R470 optional)	13.6x16; Turf Special 41/18LLx16.1
R4 Industrial - Front	10-16.5 or 25x8.5-14	25x8.50-14
R4 Industrial - Rear	14.9-24 or 15x19.5	15x19.5

Quick Attach Loader System	DL120: pin-type or skid-steer quick attach	Not Published
Loader Model	DL120	7308
Loader Lift Height	DL120: 102 in	7308: 100.8 in
Loader Lift Capacity (Full Height)	DL120: 1,900 lb	7308: 875 lb
Loader Breakout Force	Not Published	7308: 2,344 lb

Warranty Length & Coverage	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain	Not Published

Find a dealer near you Find a New Holland dealer near you

Massey Ferguson 1533 vs New Holland TC33D: Quick Answers

Which has more horsepower, the Massey Ferguson 1533 or the New Holland TC33D?: They are effectively tied: both machines are rated at 33 hp hp for engine hp.
Which has more PTO horsepower, the Massey Ferguson 1533 or the New Holland TC33D?: The New Holland TC33D leads on pto hp at 28.6 hp hp, compared to 26 hp hp for the Massey Ferguson 1533.
Which is heavier, the Massey Ferguson 1533 or the New Holland TC33D?: The Massey Ferguson 1533 leads on weight at 3,384 lb lb, compared to 2,588 lb lb for the New Holland TC33D.
Which has more loader lift capacity, the Massey Ferguson 1533 or the New Holland TC33D?: The Massey Ferguson 1533 leads on loader lift at 1,900 lb lb, compared to 875 lb lb for the New Holland TC33D.
Which has more three-point hitch lift capacity, the Massey Ferguson 1533 or the New Holland TC33D?: The Massey Ferguson 1533 leads on 3-pt lift (24 in) at 2,800 lb lb, compared to 1,635 lb lb for the New Holland TC33D.
