Massey Ferguson 1734E vs New Holland TC33D

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Massey Ferguson 1734E, 4 to the New Holland TC33D. Machine pages: Massey Ferguson 1734E and New Holland TC33D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1734E	New Holland TC33D
Engine HP (hp)	▲ 34 hp	33 hp
PTO HP (hp)	▲ 29 hp	28.6 hp
Weight (lb)	▲ 2,767 lb	2,588 lb
Loader Lift (lb)	▲ 1,210 lb	875 lb
3-Pt Lift (24 in) (lb)	1,600 lb	▲ 1,635 lb
Lift Height (in)	95.7 in	▲ 100.8 in
Breakout Force (lbf)	1,460 lbf	▲ 2,344 lbf
Hydraulic Flow (gpm)	10.5 gpm	▲ 12.7 gpm
Travel Speed (mph)	n/a	14.3 mph

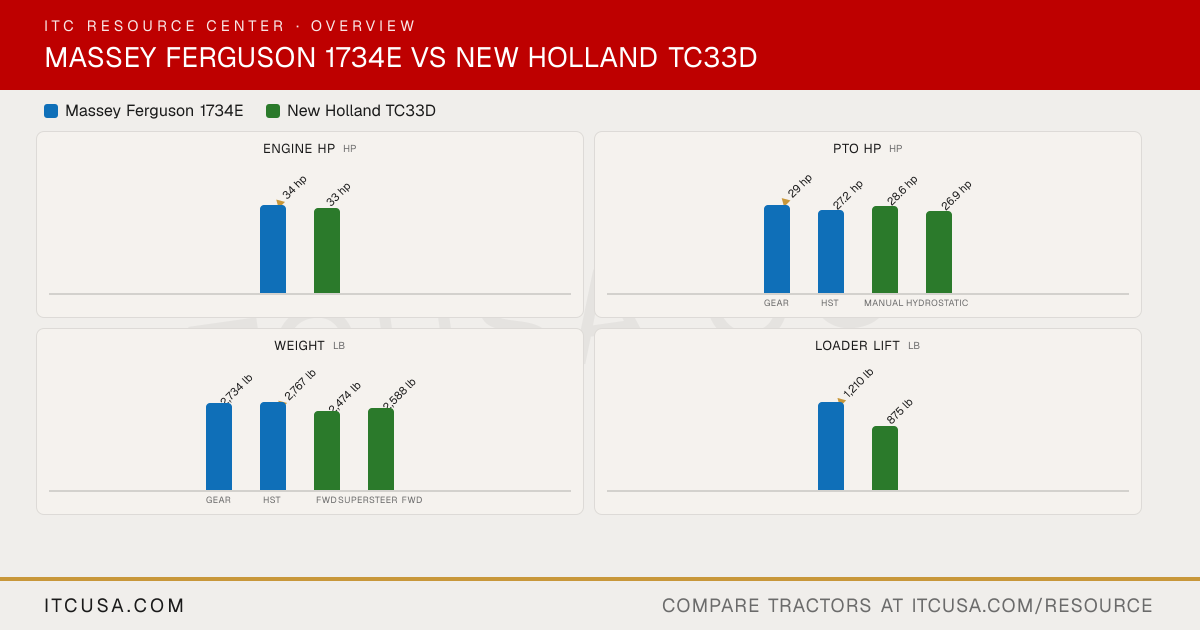

The headline numbers at a glance.

Massey Ferguson 1734ENew Holland TC33D

Engine HPhp

▲34 hp

33 hp

PTO HPhp

▲29 hp

27.2 hp

28.6 hp

26.9 hp

GearHSTManualHydrostatic

Weightlb

2,734 lb

▲2,767 lb

2,474 lb

2,588 lb

GearHSTFWDSuperSteer FWD

Loader Liftlb

▲1,210 lb

875 lb

3-Pt Lift (24 in)lb

1,600 lb

▲1,635 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1734E	New HollandTC33D


Engine Manufacturer	Shibaura	Shibaura
Engine Model	N843T-F	Not Published
Engine Type	3-cylinder diesel, liquid-cooled, turbocharged	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.5 in³	91.3 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	34 hp	33 hp
PTO Power	Gear: 29 hp; HST: 27.2 hp	Manual: 28.6 hp; Hydrostatic: 26.9 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Turbocharged, indirect low-pressure injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Not Published
Implement Flow	Not Published	7.6 gpm
Steering Flow	3.8 gpm	5.1 gpm
Total Hydraulic Flow	10.5 gpm	12.7 gpm
Overall Hydraulic Pump Flow	Not Published	12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published

Fuel Tank Capacity	10.0 gal	7.3 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.22 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published

PTO Type	Not Published	Live
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (live)
Mid-PTO Availability	Not Published	Manual: transmission-driven 2000 rpm (DIA); Hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	Not Published
Hitch Lift Capacity (at 24”)	1,600 lb	1,635 lb
Lift Control Type	Not Published	Not Published

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	Manual: 9x3 gear; Hydrostatic: 3-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Manual: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	Not Published	Manual: 12.8 mph; Hydrostatic: 14.3 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Not Published
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Wet disc
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Not Published
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	FWD (standard); SuperSteer FWD with Sensitrak clutch (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	FWD: 106.2 in; SuperSteer FWD: 115.3 in
Overall Width	52.4 in	54.3 in
Wheelbase	65.9 in	FWD: 63.0 in; SuperSteer FWD: 72.0 in
Ground Clearance	Not Published	14.0 in
Min. Turn Radius without Brakes	Not Published	FWD: 96.5 in; SuperSteer FWD: 93.8 in (with brake applied)
Height to Top of ROPS	97.6 in	87.8 in
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Gear: 2,734 lb; HST: 2,767 lb	FWD: 2,474 lb; SuperSteer FWD: 2,588 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	R1 Ag, R3 Turf (including Galaxy Turf Special), R4 Industrial; FWD only (2WD not available)
R1 Agricultural - Front	Not Published	7x14 (FWD)
R1 Agricultural - Rear	Not Published	11.2x24
R3 Turf - Front	27x8.50-15	24x8.50-14 (FWD); Galaxy 25/10.50LLx15
R3 Turf - Rear	38x14.00-20	13.6x16; Turf Special 41/18LLx16.1
R4 Industrial - Front	27x8.50-15	25x8.50-14
R4 Industrial - Rear	15x19.5	15x19.5

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	Not Published
Loader Model	L105E	7308
Loader Lift Height	L105E: 95.7 in	7308: 100.8 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	7308: 875 lb
Loader Breakout Force	L105E: 1,460 lb	7308: 2,344 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a dealer near you Find a New Holland dealer near you

Massey Ferguson 1734E vs New Holland TC33D: Quick Answers

Which has more horsepower, the Massey Ferguson 1734E or the New Holland TC33D?: The Massey Ferguson 1734E leads on engine hp at 34 hp hp, compared to 33 hp hp for the New Holland TC33D.
Which has more PTO horsepower, the Massey Ferguson 1734E or the New Holland TC33D?: The Massey Ferguson 1734E leads on pto hp at 29 hp hp, compared to 28.6 hp hp for the New Holland TC33D.
Which is heavier, the Massey Ferguson 1734E or the New Holland TC33D?: The Massey Ferguson 1734E leads on weight at 2,767 lb lb, compared to 2,588 lb lb for the New Holland TC33D.
Which has more loader lift capacity, the Massey Ferguson 1734E or the New Holland TC33D?: The Massey Ferguson 1734E leads on loader lift at 1,210 lb lb, compared to 875 lb lb for the New Holland TC33D.
Which has more three-point hitch lift capacity, the Massey Ferguson 1734E or the New Holland TC33D?: The New Holland TC33D leads on 3-pt lift (24 in) at 1,635 lb lb, compared to 1,600 lb lb for the Massey Ferguson 1734E.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1734E	New Holland TC33D
Engine HP (hp)	▲ 34 hp	33 hp
PTO HP (hp)	▲ 29 hp	28.6 hp
Weight (lb)	▲ 2,767 lb	2,588 lb
Loader Lift (lb)	▲ 1,210 lb	875 lb
3-Pt Lift (24 in) (lb)	1,600 lb	▲ 1,635 lb
Lift Height (in)	95.7 in	▲ 100.8 in
Breakout Force (lbf)	1,460 lbf	▲ 2,344 lbf
Hydraulic Flow (gpm)	10.5 gpm	▲ 12.7 gpm
Travel Speed (mph)	n/a	14.3 mph

The headline numbers at a glance.

Massey Ferguson 1734ENew Holland TC33D

Engine HPhp

▲34 hp

33 hp

PTO HPhp

▲29 hp

27.2 hp

28.6 hp

26.9 hp

GearHSTManualHydrostatic

Weightlb

2,734 lb

▲2,767 lb

2,474 lb

2,588 lb

GearHSTFWDSuperSteer FWD

Loader Liftlb

▲1,210 lb

875 lb

3-Pt Lift (24 in)lb

1,600 lb

▲1,635 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1734E	New HollandTC33D


Engine Manufacturer	Shibaura	Shibaura
Engine Model	N843T-F	Not Published
Engine Type	3-cylinder diesel, liquid-cooled, turbocharged	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.5 in³	91.3 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	34 hp	33 hp
PTO Power	Gear: 29 hp; HST: 27.2 hp	Manual: 28.6 hp; Hydrostatic: 26.9 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Turbocharged, indirect low-pressure injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Not Published
Implement Flow	Not Published	7.6 gpm
Steering Flow	3.8 gpm	5.1 gpm
Total Hydraulic Flow	10.5 gpm	12.7 gpm
Overall Hydraulic Pump Flow	Not Published	12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published

Fuel Tank Capacity	10.0 gal	7.3 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.22 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published

PTO Type	Not Published	Live
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (live)
Mid-PTO Availability	Not Published	Manual: transmission-driven 2000 rpm (DIA); Hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	Not Published
Hitch Lift Capacity (at 24”)	1,600 lb	1,635 lb
Lift Control Type	Not Published	Not Published

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	Manual: 9x3 gear; Hydrostatic: 3-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Manual: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	Not Published	Manual: 12.8 mph; Hydrostatic: 14.3 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Not Published
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Wet disc
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Not Published
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	FWD (standard); SuperSteer FWD with Sensitrak clutch (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	FWD: 106.2 in; SuperSteer FWD: 115.3 in
Overall Width	52.4 in	54.3 in
Wheelbase	65.9 in	FWD: 63.0 in; SuperSteer FWD: 72.0 in
Ground Clearance	Not Published	14.0 in
Min. Turn Radius without Brakes	Not Published	FWD: 96.5 in; SuperSteer FWD: 93.8 in (with brake applied)
Height to Top of ROPS	97.6 in	87.8 in
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Gear: 2,734 lb; HST: 2,767 lb	FWD: 2,474 lb; SuperSteer FWD: 2,588 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	R1 Ag, R3 Turf (including Galaxy Turf Special), R4 Industrial; FWD only (2WD not available)
R1 Agricultural - Front	Not Published	7x14 (FWD)
R1 Agricultural - Rear	Not Published	11.2x24
R3 Turf - Front	27x8.50-15	24x8.50-14 (FWD); Galaxy 25/10.50LLx15
R3 Turf - Rear	38x14.00-20	13.6x16; Turf Special 41/18LLx16.1
R4 Industrial - Front	27x8.50-15	25x8.50-14
R4 Industrial - Rear	15x19.5	15x19.5

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	Not Published
Loader Model	L105E	7308
Loader Lift Height	L105E: 95.7 in	7308: 100.8 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	7308: 875 lb
Loader Breakout Force	L105E: 1,460 lb	7308: 2,344 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a dealer near you Find a New Holland dealer near you

Massey Ferguson 1734E vs New Holland TC33D: Quick Answers

Which has more horsepower, the Massey Ferguson 1734E or the New Holland TC33D?

The Massey Ferguson 1734E leads on engine hp at 34 hp hp, compared to 33 hp hp for the New Holland TC33D.

Which has more PTO horsepower, the Massey Ferguson 1734E or the New Holland TC33D?

The Massey Ferguson 1734E leads on pto hp at 29 hp hp, compared to 28.6 hp hp for the New Holland TC33D.

Which is heavier, the Massey Ferguson 1734E or the New Holland TC33D?

The Massey Ferguson 1734E leads on weight at 2,767 lb lb, compared to 2,588 lb lb for the New Holland TC33D.

Which has more loader lift capacity, the Massey Ferguson 1734E or the New Holland TC33D?

The Massey Ferguson 1734E leads on loader lift at 1,210 lb lb, compared to 875 lb lb for the New Holland TC33D.

Which has more three-point hitch lift capacity, the Massey Ferguson 1734E or the New Holland TC33D?

The New Holland TC33D leads on 3-pt lift (24 in) at 1,635 lb lb, compared to 1,600 lb lb for the Massey Ferguson 1734E.
