Massey Ferguson 1735E vs New Holland TC33D

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the New Holland TC33D leads 4 categories to 3. Machine pages: Massey Ferguson 1735E and New Holland TC33D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1735E	New Holland TC33D
Engine HP (hp)	▲ 34.1 hp	33 hp
PTO HP (hp)	▲ 29 hp	28.6 hp
Weight (lb)	n/a	2,588 lb
Loader Lift (lb)	▲ 1,450 lb	875 lb
3-Pt Lift (24 in) (lb)	1,598 lb	▲ 1,635 lb
Lift Height (in)	94.3 in	▲ 100.8 in
Breakout Force (lbf)	2,288 lbf	▲ 2,344 lbf
Hydraulic Flow (gpm)	9.7 gpm	▲ 12.7 gpm
Travel Speed (mph)	n/a	14.3 mph

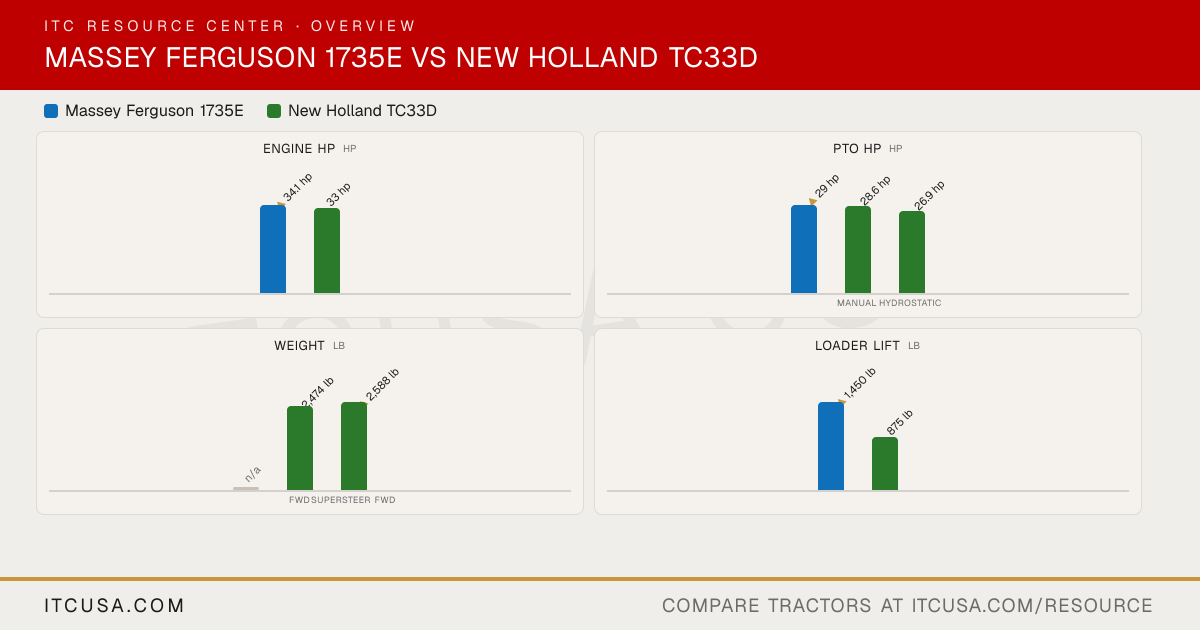

The headline numbers at a glance.

Massey Ferguson 1735ENew Holland TC33D

Engine HPhp

▲34.1 hp

33 hp

PTO HPhp

▲29 hp

28.6 hp

26.9 hp

ManualHydrostatic

Weightlb

n/a

2,474 lb

▲2,588 lb

FWDSuperSteer FWD

Loader Liftlb

▲1,450 lb

875 lb

3-Pt Lift (24 in)lb

1,598 lb

▲1,635 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1735E	New HollandTC33D


Engine Manufacturer	Shibaura	Shibaura
Engine Model	Not Published	Not Published
Engine Type	3-cylinder turbocharged diesel, liquid-cooled	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.3 in³	91.3 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	34.1 hp	33 hp
PTO Power	29 hp	Manual: 28.6 hp; Hydrostatic: 26.9 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Indirect injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Dual engine-driven gear pumps	Not Published
Implement Flow	Not Published	7.6 gpm
Steering Flow	Not Published	5.1 gpm
Total Hydraulic Flow	9.7 gpm	12.7 gpm
Overall Hydraulic Pump Flow	Not Published	12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	Not Published

Fuel Tank Capacity	Not Published	7.3 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	8x8 Synchro Shuttle: independent; HST: transmission driven	Live
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (live)
Mid-PTO Availability	Not Published	Manual: transmission-driven 2000 rpm (DIA); Hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	1,598 lb	1,635 lb
Lift Control Type	Position control	Not Published

Transmission Type	8 x 8 synchro shuttle or 3-range hydrostatic	Manual: 9x3 gear; Hydrostatic: 3-range hydrostatic
No. of Speeds	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite	Manual: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	Not Published	Manual: 12.8 mph; Hydrostatic: 14.3 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	FWD (standard); SuperSteer FWD with Sensitrak clutch (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	Not Published	FWD: 106.2 in; SuperSteer FWD: 115.3 in
Overall Width	Not Published	54.3 in
Wheelbase	Not Published	FWD: 63.0 in; SuperSteer FWD: 72.0 in
Ground Clearance	Not Published	14.0 in
Min. Turn Radius without Brakes	Not Published	FWD: 96.5 in; SuperSteer FWD: 93.8 in (with brake applied)
Height to Top of ROPS	Not Published	87.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Not Published	FWD: 2,474 lb; SuperSteer FWD: 2,588 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R4 Industrial	R1 Ag, R3 Turf (including Galaxy Turf Special), R4 Industrial; FWD only (2WD not available)
R1 Agricultural - Front	7-16	7x14 (FWD)
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	Not Published	24x8.50-14 (FWD); Galaxy 25/10.50LLx15
R3 Turf - Rear	Not Published	13.6x16; Turf Special 41/18LLx16.1
R4 Industrial - Front	27x8.50-15	25x8.50-14
R4 Industrial - Rear	15-19.5	15x19.5

Quick Attach Loader System	FLx2407: pin-on (skid steer quick attach optional)	Not Published
Loader Model	FLx2407	7308
Loader Lift Height	FLx2407: 94.3 in	7308: 100.8 in
Loader Lift Capacity (Full Height)	FLx2407: 1,450 lb	7308: 875 lb
Loader Breakout Force	FLx2407: 2,288 lb	7308: 2,344 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a dealer near you Find a New Holland dealer near you

Massey Ferguson 1735E vs New Holland TC33D: Quick Answers

Which has more horsepower, the Massey Ferguson 1735E or the New Holland TC33D?: The Massey Ferguson 1735E leads on engine hp at 34.1 hp hp, compared to 33 hp hp for the New Holland TC33D.
Which has more PTO horsepower, the Massey Ferguson 1735E or the New Holland TC33D?: The Massey Ferguson 1735E leads on pto hp at 29 hp hp, compared to 28.6 hp hp for the New Holland TC33D.
Which has more loader lift capacity, the Massey Ferguson 1735E or the New Holland TC33D?: The Massey Ferguson 1735E leads on loader lift at 1,450 lb lb, compared to 875 lb lb for the New Holland TC33D.
Which has more three-point hitch lift capacity, the Massey Ferguson 1735E or the New Holland TC33D?: The New Holland TC33D leads on 3-pt lift (24 in) at 1,635 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1735E.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1735E	New Holland TC33D
Engine HP (hp)	▲ 34.1 hp	33 hp
PTO HP (hp)	▲ 29 hp	28.6 hp
Weight (lb)	n/a	2,588 lb
Loader Lift (lb)	▲ 1,450 lb	875 lb
3-Pt Lift (24 in) (lb)	1,598 lb	▲ 1,635 lb
Lift Height (in)	94.3 in	▲ 100.8 in
Breakout Force (lbf)	2,288 lbf	▲ 2,344 lbf
Hydraulic Flow (gpm)	9.7 gpm	▲ 12.7 gpm
Travel Speed (mph)	n/a	14.3 mph

The headline numbers at a glance.

Massey Ferguson 1735ENew Holland TC33D

Engine HPhp

▲34.1 hp

33 hp

PTO HPhp

▲29 hp

28.6 hp

26.9 hp

ManualHydrostatic

Weightlb

n/a

2,474 lb

▲2,588 lb

FWDSuperSteer FWD

Loader Liftlb

▲1,450 lb

875 lb

3-Pt Lift (24 in)lb

1,598 lb

▲1,635 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1735E	New HollandTC33D


Engine Manufacturer	Shibaura	Shibaura
Engine Model	Not Published	Not Published
Engine Type	3-cylinder turbocharged diesel, liquid-cooled	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.3 in³	91.3 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	34.1 hp	33 hp
PTO Power	29 hp	Manual: 28.6 hp; Hydrostatic: 26.9 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Indirect injection	Not Published
Alternator	Not Published	Not Published

Pump Type	Dual engine-driven gear pumps	Not Published
Implement Flow	Not Published	7.6 gpm
Steering Flow	Not Published	5.1 gpm
Total Hydraulic Flow	9.7 gpm	12.7 gpm
Overall Hydraulic Pump Flow	Not Published	12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	Not Published

Fuel Tank Capacity	Not Published	7.3 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	8x8 Synchro Shuttle: independent; HST: transmission driven	Live
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (live)
Mid-PTO Availability	Not Published	Manual: transmission-driven 2000 rpm (DIA); Hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	1,598 lb	1,635 lb
Lift Control Type	Position control	Not Published

Transmission Type	8 x 8 synchro shuttle or 3-range hydrostatic	Manual: 9x3 gear; Hydrostatic: 3-range hydrostatic
No. of Speeds	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite	Manual: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	Not Published	Manual: 12.8 mph; Hydrostatic: 14.3 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	FWD (standard); SuperSteer FWD with Sensitrak clutch (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	Not Published	FWD: 106.2 in; SuperSteer FWD: 115.3 in
Overall Width	Not Published	54.3 in
Wheelbase	Not Published	FWD: 63.0 in; SuperSteer FWD: 72.0 in
Ground Clearance	Not Published	14.0 in
Min. Turn Radius without Brakes	Not Published	FWD: 96.5 in; SuperSteer FWD: 93.8 in (with brake applied)
Height to Top of ROPS	Not Published	87.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Not Published	FWD: 2,474 lb; SuperSteer FWD: 2,588 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R4 Industrial	R1 Ag, R3 Turf (including Galaxy Turf Special), R4 Industrial; FWD only (2WD not available)
R1 Agricultural - Front	7-16	7x14 (FWD)
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	Not Published	24x8.50-14 (FWD); Galaxy 25/10.50LLx15
R3 Turf - Rear	Not Published	13.6x16; Turf Special 41/18LLx16.1
R4 Industrial - Front	27x8.50-15	25x8.50-14
R4 Industrial - Rear	15-19.5	15x19.5

Quick Attach Loader System	FLx2407: pin-on (skid steer quick attach optional)	Not Published
Loader Model	FLx2407	7308
Loader Lift Height	FLx2407: 94.3 in	7308: 100.8 in
Loader Lift Capacity (Full Height)	FLx2407: 1,450 lb	7308: 875 lb
Loader Breakout Force	FLx2407: 2,288 lb	7308: 2,344 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a dealer near you Find a New Holland dealer near you

Massey Ferguson 1735E vs New Holland TC33D: Quick Answers

Which has more horsepower, the Massey Ferguson 1735E or the New Holland TC33D?

The Massey Ferguson 1735E leads on engine hp at 34.1 hp hp, compared to 33 hp hp for the New Holland TC33D.

Which has more PTO horsepower, the Massey Ferguson 1735E or the New Holland TC33D?

The Massey Ferguson 1735E leads on pto hp at 29 hp hp, compared to 28.6 hp hp for the New Holland TC33D.

Which has more loader lift capacity, the Massey Ferguson 1735E or the New Holland TC33D?

The Massey Ferguson 1735E leads on loader lift at 1,450 lb lb, compared to 875 lb lb for the New Holland TC33D.

Which has more three-point hitch lift capacity, the Massey Ferguson 1735E or the New Holland TC33D?

The New Holland TC33D leads on 3-pt lift (24 in) at 1,635 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1735E.
