Which has more horsepower, the Massey Ferguson MF 1525 or the Massey Ferguson MF 1M.20?

The Massey Ferguson MF 1525 leads on engine hp at 25 hp hp, compared to 20 hp hp for the Massey Ferguson MF 1M.20.

Which has more three-point hitch lift capacity, the Massey Ferguson MF 1525 or the Massey Ferguson MF 1M.20?

The Massey Ferguson MF 1525 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,433 lb lb for the Massey Ferguson MF 1M.20.

Massey Ferguson MF 1525 vs Massey Ferguson MF 1M.20

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, the Massey Ferguson MF 1525 leads 2 categories to 1. Machine pages: Massey Ferguson MF 1525 and Massey Ferguson MF 1M.20.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson MF 1525	Massey Ferguson MF 1M.20
Engine HP (hp)	▲ 25 hp	20 hp
3-Pt Lift (24 in) (lb)	▲ 2,646 lb	1,433 lb
Hydraulic Flow (gpm)	8.7 gpm	▲ 8.8 gpm

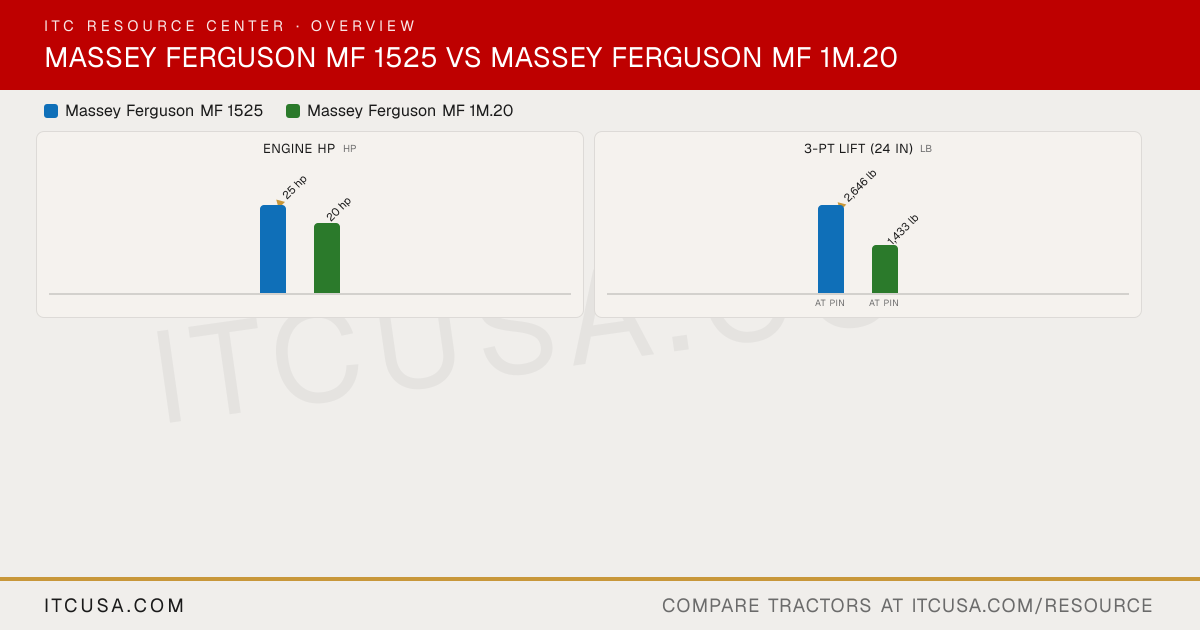

The headline numbers at a glance.

Massey Ferguson MF 1525Massey Ferguson MF 1M.20

Engine HPhp

▲25 hp

20 hp

PTO HPhp

—

Weightlb

—

Loader Liftlb

—

3-Pt Lift (24 in)lb

▲2,646 lb

1,433 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1525	Massey FergusonMF 1M.20


PTO Power	Not Published	Not Published
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	3-cylinder diesel	3-cylinder diesel
Fuel System	Not Published	Not Published
Displacement	91.4 in³	68.5 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2500 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Massey Ferguson (AGCO)	Massey Ferguson (AGCO)
Engine Power (Gross)	25 hp	20 hp
Engine Emissions Constraints	Not Published	Not Published

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	Not Published

Pump Type	Not Published	Not Published
Steering Flow	3.2 gpm	3.2 gpm
Implement Flow	5.5 gpm	5.5 gpm
Total Hydraulic Flow	8.7 gpm	8.8 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	8.7 gpm	8.8 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	2	1

PTO Rear	540 rpm / 750 rpm (540E)	540 rpm
PTO Type	Electro-hydraulic	Sliding gear
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	2,646 lb	1,433 lb
Mid-PTO Availability	Standard	Not Applicable
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	Not Published	Not Published

R3 Turf - Rear	315/80D-16	315X75D-15
R3 Turf - Front	24X8.5-12	24X8.50-12
Tire Size & Options	R1 Agricultural, R3 Turf	R1 Agricultural, R3 Turf
R4 Industrial - Rear	Not Applicable	Not Published
R4 Industrial - Front	Not Applicable	Not Published
R1 Agricultural - Rear	9.5-18	9.5-18
R1 Agricultural - Front	6.0-12	6.00-12

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	9.5 gal	7.4 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	Not Published	Not Published
Loader Breakout Force	Not Published	Not Published
Quick Attach Loader System	Not Published	Not Published
Loader Lift Capacity (Full Height)	Not Published	Not Published

Clutch	Not Applicable	Not Published
No. of Speeds	3 ranges	9F / 9R
Transmission Type	Hydrostatic	Mechanical
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Differential lock (RHS pedal)

Brakes	Not Published	Internal wet disc
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	66.9 in	61.4 in
Overall Width	43.3 in	45.7 in
Ground Clearance	10.8 in	Not Published
Height to Top of ROPS	Not Applicable	79.5 in
Height to Top of Cab Model	95.3 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	115.6 in	115.9 in

Massey Ferguson MF 1525 vs Massey Ferguson MF 1M.20: Quick Answers

Which has more horsepower, the Massey Ferguson MF 1525 or the Massey Ferguson MF 1M.20?: The Massey Ferguson MF 1525 leads on engine hp at 25 hp hp, compared to 20 hp hp for the Massey Ferguson MF 1M.20.
Which has more three-point hitch lift capacity, the Massey Ferguson MF 1525 or the Massey Ferguson MF 1M.20?: The Massey Ferguson MF 1525 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,433 lb lb for the Massey Ferguson MF 1M.20.
