Massey Ferguson MF 1M.20 vs Massey Ferguson MF 1M.25

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, this matchup is a dead heat: 1 categories to the Massey Ferguson MF 1M.20, 1 to the Massey Ferguson MF 1M.25, 1 tied. Machine pages: Massey Ferguson MF 1M.20 and Massey Ferguson MF 1M.25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson MF 1M.20	Massey Ferguson MF 1M.25
Engine HP (hp)	20 hp	▲ 24.8 hp
PTO HP (hp)	—	18.2 hp
Loader Lift (lb)	—	1,222 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,091 lb
Lift Height (in)	—	83 in
Breakout Force (lbf)	—	1,822 lbf
Hydraulic Flow (gpm)	8.8 gpm	8.8 gpm

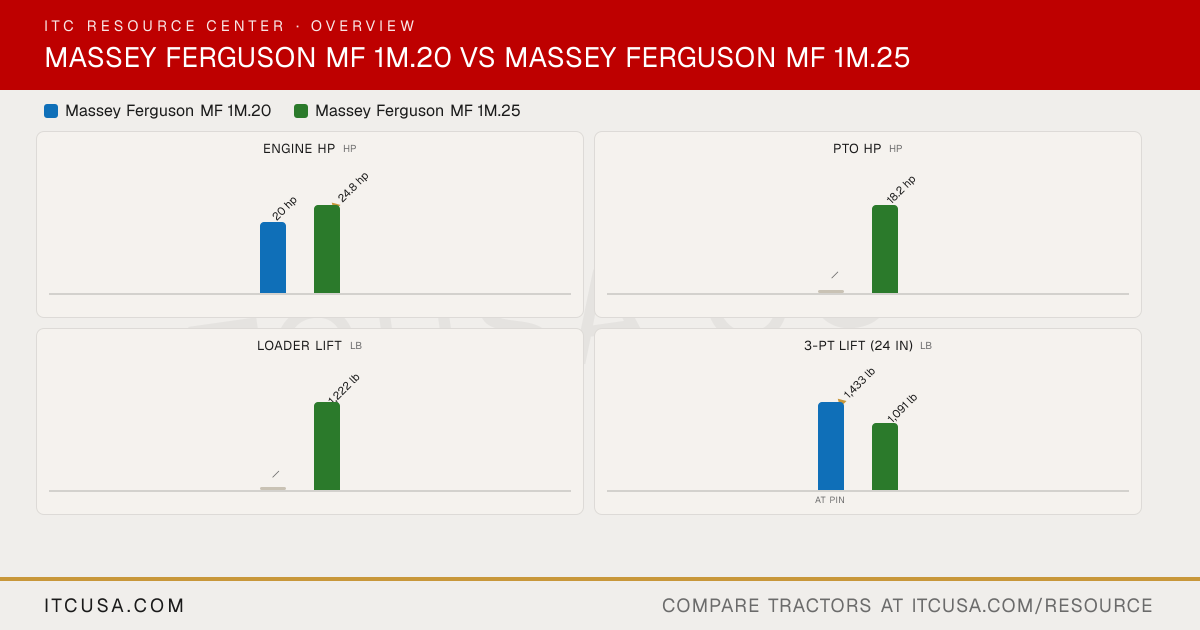

The headline numbers at a glance.

Massey Ferguson MF 1M.20Massey Ferguson MF 1M.25

Engine HPhp

20 hp

▲24.8 hp

PTO HPhp

—

18.2 hp

Weightlb

—

Loader Liftlb

—

1,222 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,091 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1M.20	Massey FergusonMF 1M.25


PTO Power	Not Published	18.2 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	3-cylinder diesel	3-cylinder diesel
Fuel System	Not Published	Not Published
Displacement	68.5 in³	91.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Massey Ferguson (AGCO)	Massey Ferguson (AGCO)
Engine Power (Gross)	20 hp	24.8 hp
Engine Emissions Constraints	Not Published	Not Published

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	Not Published

Pump Type	Not Published	Not Published
Steering Flow	3.2 gpm	3.2 gpm
Implement Flow	5.5 gpm	5.5 gpm
Total Hydraulic Flow	8.8 gpm	8.8 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	8.8 gpm	8.8 gpm
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	1	2

PTO Rear	540 rpm	540 rpm
PTO Type	Sliding gear	Independent
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	1,433 lb	1,433 lb
Mid-PTO Availability	Not Applicable	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	Not Published	1,091 lb

R3 Turf - Rear	315X75D-15	315X75D-15
R3 Turf - Front	24X8.50-12	24X8.50-12
Tire Size & Options	R1 Agricultural, R3 Turf	R1 Agricultural, R3 Turf
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	9.5-18	9.5-18
R1 Agricultural - Front	6.00-12	6.00-12

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	7.4 gal	7.4 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	Not Published	83 in
Loader Breakout Force	Not Published	1,822 lb
Quick Attach Loader System	Not Published	FL.2106: Skid Steer Tool Carrier
Loader Lift Capacity (Full Height)	Not Published	1,222 lb

Clutch	Not Published	Not Published
No. of Speeds	9F / 9R	3 Ranges
Transmission Type	Mechanical	Hydrostatic
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock (RHS pedal)	Differential lock (LHS pedal)

Brakes	Internal wet disc	Internal wet disc
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	61.4 in	61.4 in
Overall Width	45.7 in	45.7-52 in (1,160-52 in)
Ground Clearance	Not Published	9.9-11 in (250-12 in)
Height to Top of ROPS	79.5 in	95.3-97.5 in (2,420-97.4 in)
Height to Top of Cab Model	Not Applicable	80-82.1 in (2,030-82.1 in)
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	115.9 in	115.9 in
