Which has more horsepower, the Bad Boy Tractors 4025 or the Massey Ferguson MF 1M.20?

The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 20 hp hp for the Massey Ferguson MF 1M.20.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Massey Ferguson MF 1M.20?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the Massey Ferguson MF 1M.20.

Bad Boy Tractors 4025 vs Massey Ferguson MF 1M.20

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, the Bad Boy Tractors 4025 leads 3 categories to 0. Machine pages: Bad Boy Tractors 4025 and Massey Ferguson MF 1M.20.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4025	Massey Ferguson MF 1M.20
Engine HP (hp)	▲ 24.5 hp	20 hp
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	2,200 lb	—
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,433 lb
Lift Height (in)	104 in	—
Breakout Force (lbf)	3,660 lbf	—
Hydraulic Flow (gpm)	▲ 11.5 gpm	8.8 gpm

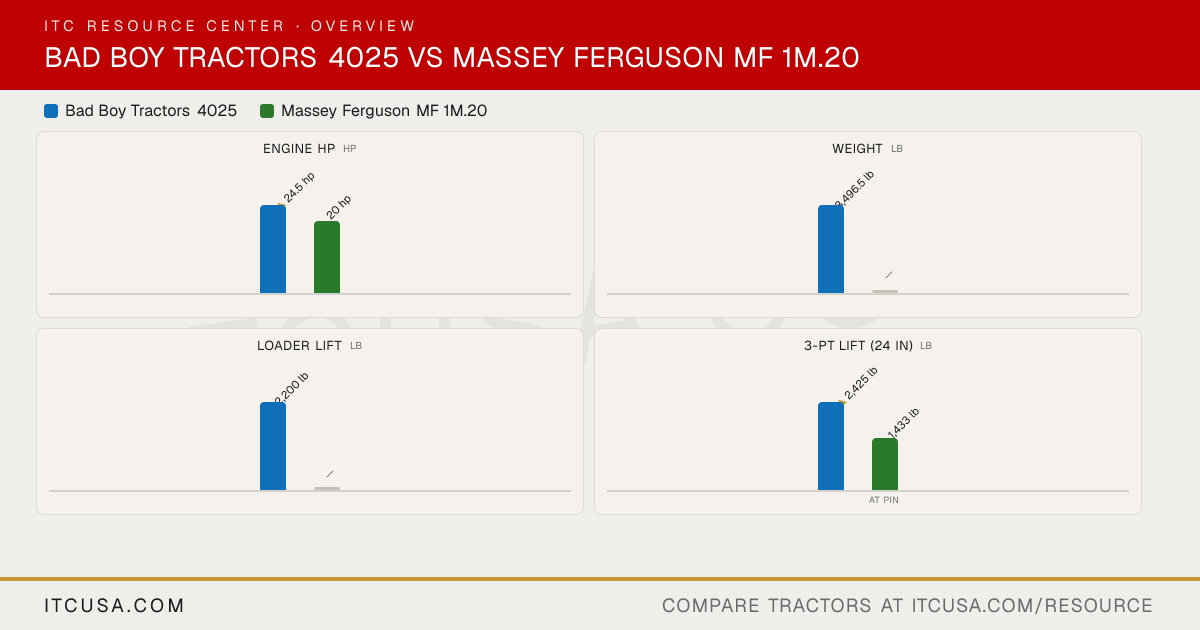

The headline numbers at a glance.

Bad Boy Tractors 4025Massey Ferguson MF 1M.20

Engine HPhp

▲24.5 hp

20 hp

PTO HPhp

—

Weightlb

3,496.5 lb

—

Loader Liftlb

2,200 lb

—

3-Pt Lift (24 in)lb

▲2,425 lb

1,433 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	Massey FergusonMF 1M.20


PTO Power	540 rpm, 1st stage	Not Published
Alternator	50 A, 12 V	Not Published
Air Cleaner	Present (standard equipment)	Not Published
Engine Type	Vertical, water cooled 4-cycle, diesel engine	3-cylinder diesel
Fuel System	Diesel fuel system with fuel injection pump	Not Published
Displacement	104.6 in³	68.5 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	2500 rpm
Cooling System Type	Pressurized Radiator	Not Published
Engine Manufacturer	A1700N6, A1700N5, A1700N4	Massey Ferguson (AGCO)
Engine Power (Gross)	24.5 hp	20 hp
Engine Emissions Constraints	Not Published	Not Published

Tractor Weight (Base)	3,496.5 lb (3,497 lbs), 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	6-year powertrain warranty	Not Published

Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Not Published
Steering Flow	4.0 gpm	3.2 gpm
Implement Flow	7.5 gpm	5.5 gpm
Total Hydraulic Flow	11.5 gpm (4.0 + 7.5)	8.8 gpm
Hydraulic System Type	Not Published	Not Published
System Operating Pressure	463 lbf/cm² maximum	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.5 gpm	8.8 gpm
No. of Optional Remote Valves	Optional (Up to 2)	Not Published
No. of Standard Remote Valves	Not Published	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Sliding gear
Lift Control Type	Position control type	Not Published
Hitch Lift Capacity	2,425 lb @ 24 in behind lift point	1,433 lb
Mid-PTO Availability	Not Published	Not Applicable
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb @ 24 in behind lift point	Not Published

R3 Turf - Rear	Not Published	315X75D-15
R3 Turf - Front	Not Published	24X8.50-12
Tire Size & Options	OEM website lists IND tires 25X8.50-14 / 15-19.5; Operator Manual spec based on 8.0-16 / 12.4-24	R1 Agricultural, R3 Turf
R4 Industrial - Rear	15-19.5	Not Published
R4 Industrial - Front	25X8.50-14	Not Published
R1 Agricultural - Rear	12.4-24 6PR	9.5-18
R1 Agricultural - Front	8.0-16 4PR	6.00-12

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	Not Published
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	Not Published
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	7.4 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	HST: 9.77 gal	Not Published

Loader Lift Height	104 in	Not Published
Loader Breakout Force	3,660 lb	Not Published
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	2,200 lb (pivot pin)	Not Published

Clutch	None (HST)	Not Published
No. of Speeds	3 Range	9F / 9R
Transmission Type	HST (Hydrostatic Transmission) with shuttle type	Mechanical
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock (RHS pedal)

Brakes	Wet, Multi-Disc	Internal wet disc
Steering	Hydrostatic power steering	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.8 in (65.79 in.)	61.4 in
Overall Width	57.1 in (57.13 in.) [ROPS Model], 55.6 in (55.63 in.) [Cabin Model]	45.7 in
Overall Length	134.9 in (134.88 in.)	—
Ground Clearance	13.2 in (13.19 in.) [ROPS Model], 13.5 in (13.50 in.) [Cabin Model]	Not Published
Height to Top of ROPS	104.1 in (104.06 in.) [ROPS Model], 88.9 in (88.9 in.) [Cabin Model]	79.5 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	115.9 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet
