New Holland Boomer 35 vs New Holland Workmaster 25S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland Boomer 35 leads 8 categories to 0. Machine pages: New Holland Boomer 35 and New Holland Workmaster 25S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 35	New Holland Workmaster 25S
Engine HP (hp)	▲ 35 hp	24.7 hp
PTO HP (hp)	▲ 28 hp	17.2 hp
Weight (lb)	—	1,444 lb
Loader Lift (lb)	▲ 1,822 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	728 lb
Lift Height (in)	▲ 104 in	72 in
Breakout Force (lbf)	▲ 2,444 lbf	2,078 lbf
Hydraulic Flow (gpm)	▲ 13.8 gpm	6.7 gpm
Travel Speed (mph)	▲ 14.8 mph	9.1 mph

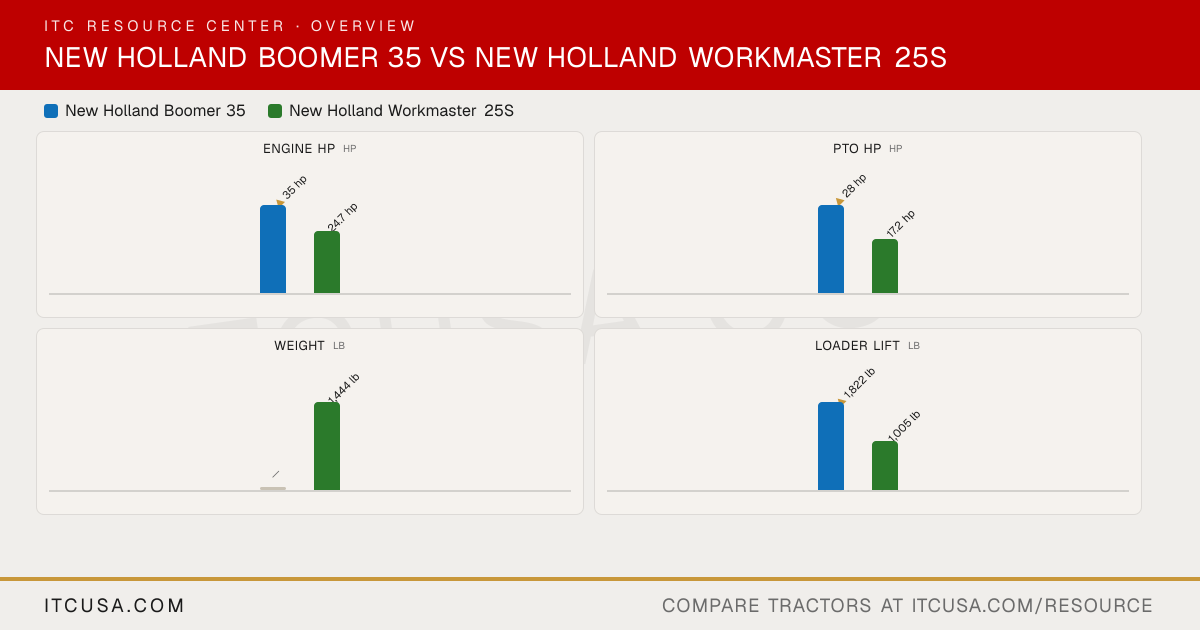

The headline numbers at a glance.

New Holland Boomer 35New Holland Workmaster 25S

Engine HPhp

▲35 hp

24.7 hp

PTO HPhp

▲28 hp

17.2 hp

Weightlb

—

1,444 lb

Loader Liftlb

▲1,822 lb

1,005 lb

3-Pt Lift (24 in)lb

▲1,433 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 35	New HollandWorkmaster 25S


PTO Power	28 hp	17.2 hp
Alternator	70 A, 12 V	40 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Not Published	3-cylinder, naturally aspirated diesel
Fuel System	CRDI	In-line injection pump
Displacement	0.1 in³	76.9 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3000 rpm
Cooling System Type	Not Published	Pressurized liquid with recirculating bypass
Engine Manufacturer	LS Mtron	Yanmar
Engine Power (Gross)	35 hp	24.7 hp
Engine Emissions Constraints	T4B Final	Tier 4B Final

Weight with ROPS and Loader	Not Published	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	Not Applicable	1,805 lb (Cab tractor only)

Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear	Gear
Steering Flow	HST: 5.6 gpm; Gear: 4.2 gpm	2.1 gpm
Implement Flow	8.2 gpm	4.6 gpm
Total Hydraulic Flow	HST: 13.8 gpm; Gear: 12.4 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	HST: 13.8 gpm; Gear: 12.4 gpm	6.7 gpm
No. of Optional Remote Valves	1 or 2	1
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent (wet clutch, switch-actuated)	Independent, electro-hydraulic engagement
Lift Control Type	Not Published	Lift-hold-lower
Hitch Lift Capacity	1808 lb	992 lb at ball ends
Mid-PTO Availability	Standard	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1433 lb	728 lb

R3 Turf - Rear	41X14.00-20	26X12.0-12
R3 Turf - Front	25X8.50-14	18X8.50-10
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16.00X20; 43X16-20	26X12.0-12
R4 Industrial - Front	25X8.50-14	18X8.50-10
R1 Agricultural - Rear	11.2-24	Not Applicable
R1 Agricultural - Front	7.0-14	Not Applicable

Coolant Capacity	Not Published	3.5 qt
Crankcase Capacity	Not Published	3.0 qt
Fuel Tank Capacity	10.5 gal	6.6 gal
Front Axle Fluid Capacity	Not Published	0.5 gal
Transmission / Hydraulic System Capacity	Not Published	3.0 gal

Loader Lift Height	104 in	72 in
Loader Breakout Force	2444 lb	2,078 lb
Quick Attach Loader System	250TLA: New Holland Quick Mount; optional skid steer quick attach	100LC: Quick Mount system (no tools)
Loader Lift Capacity (Full Height)	1822 lb	1,005 lb

Clutch	Gear: Dry single disc; HST: Not Applicable	Not Applicable
No. of Speeds	HST: 3-range; Gear: 12F/12R	Infinite (2-range)
Transmission Type	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle	2-Range Hydrostatic / Dual Pedal
Max Travel Speed (Forward)	HST: 14.8 mph; Gear: 14.2 mph	9.1 mph
Max Travel Speed (Reverse)	Not Published	5.5 mph
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical, foot-operated rear diff lock

Brakes	Wet disc	Wet, multi-disc
Steering	Power steering	Central support, bevel gear type
Frame Type	Not Published	Not Published
Front Axle Type	Four-wheel drive (4WD)	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	66 in	56.1 in
Overall Width	66.4 in	46.7 in
Ground Clearance	Not Published	12 in
Height to Top of ROPS	92.7 in	90 in
Height to Top of Cab Model	Not Applicable	87.4 in
Height to Top of ROPS (folded)	Not Published	64 in
Min. Turn Radius without Brakes	Not Published	94 in
Overall Length with 3-Point Hitch	119 in	97.4 in

New Holland Boomer 35 vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the New Holland Boomer 35 or the New Holland Workmaster 25S?: The New Holland Boomer 35 leads on engine hp at 35 hp hp, compared to 24.7 hp hp for the New Holland Workmaster 25S.
Which has more PTO horsepower, the New Holland Boomer 35 or the New Holland Workmaster 25S?: The New Holland Boomer 35 leads on pto hp at 28 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which has more loader lift capacity, the New Holland Boomer 35 or the New Holland Workmaster 25S?: The New Holland Boomer 35 leads on loader lift at 1,822 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.
Which has more three-point hitch lift capacity, the New Holland Boomer 35 or the New Holland Workmaster 25S?: The New Holland Boomer 35 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
