New Holland Boomer 40 vs New Holland Boomer 45

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Boomer 45 leads 8 categories to 0 (1 tied). Machine pages: New Holland Boomer 40 and New Holland Boomer 45.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 40	New Holland Boomer 45
Engine HP (hp)	40 hp	▲ 45 hp
PTO HP (hp)	34 hp	▲ 38.2 hp
Weight (lb)	3,574 lb	▲ 4,194 lb
Loader Lift (lb)	1,822 lb	▲ 2,371 lb
3-Pt Lift (24 in) (lb)	1,345 lb	▲ 2,116 lb
Lift Height (in)	104 in	▲ 109 in
Breakout Force (lbf)	3,257 lbf	▲ 4,081 lbf
Hydraulic Flow (gpm)	13.5 gpm	13.5 gpm
Travel Speed (mph)	14.8 mph	▲ 17.9 mph

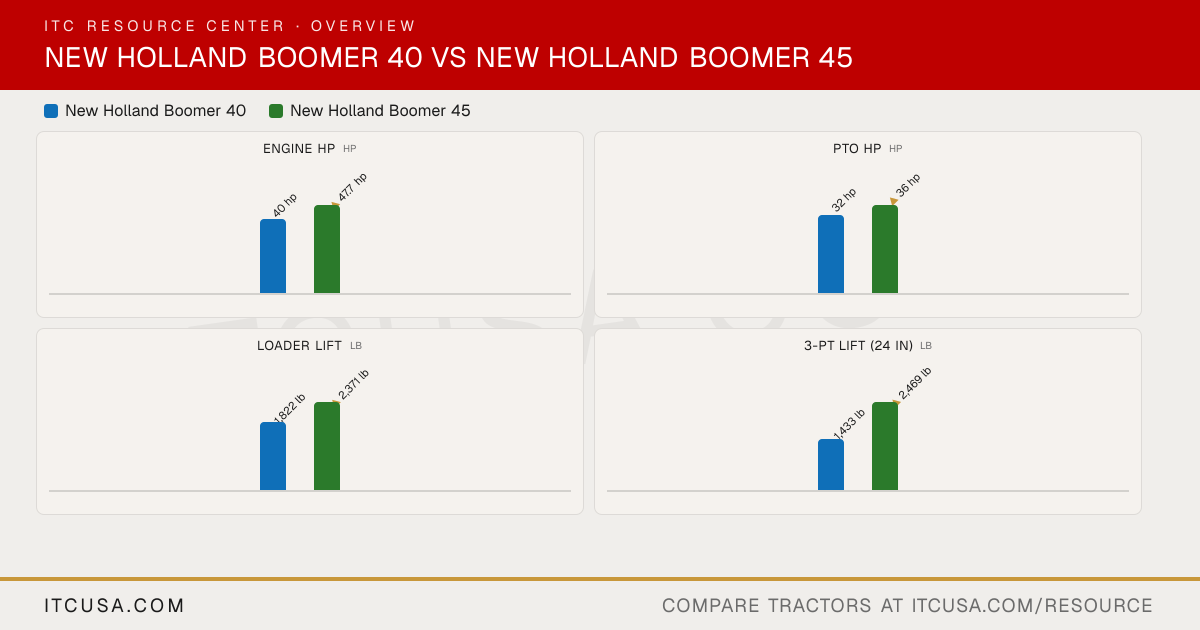

The headline numbers at a glance.

New Holland Boomer 40New Holland Boomer 45

Engine HPhp

40 hp

▲45 hp

PTO HPhp

34 hp

32 hp

▲38.2 hp

36 hp

GearHSTGearHST

Weightlb

2,804 lb

2,870 lb

3,574 lb

3,424 lb

3,490 lb

▲4,194 lb

ROPS GearROPS HSTCabROPS GearROPS HSTCab

Loader Liftlb

1,822 lb

▲2,371 lb

3-Pt Lift (24 in)lb

1,345 lb

▲2,116 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 40	New HollandBoomer 45


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3CRV-T4	L3CRV-T9A
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	45 hp
PTO Power	Gear: 34 hp; HST: 32 hp	Gear: 38.2 hp; HST: 36 hp
Engine Emissions Constraints	Tier 4B (final)	Tier 4B (final)
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Replaceable primary and inner elements	Replaceable primary and inner elements
Fuel System	Electronically controlled common rail direct injection	Electronically controlled common rail direct injection
Alternator	ROPS: 70 A, 12 V; Cab: 85 A, 12 V	ROPS: 70 A, 12 V; Cab: 85 A, 12 V

Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	Up to 2 (second valve optional)	Up to 2 (second valve optional)

Fuel Tank Capacity	ROPS: 10.5 gal; Cab: 12.4 gal	ROPS: 10.5 gal; Cab: 12.4 gal
Coolant Capacity	7.5 qt	2.3 gal
Crankcase Capacity	5.8 qt	5.8 qt
Transmission / Hydraulic System Capacity	8.5 gal	11.4 gal
Front Axle Fluid Capacity	6.87 qt	2.2 gal

PTO Type	Independent, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2000 rpm)	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	2,756 lb
Hitch Lift Capacity (at 24”)	1,345 lb	2,116 lb
Lift Control Type	Position control (draft control optional)	Position control (draft control optional)

Transmission Type	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	Gear: 12F/12R; HST: 3-range	Gear: 16F/16R; HST: 3-range
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Gear: 17.0 mph; HST: 17.9 mph
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 13.60 mph	Gear: 15.3 mph; HST: 11.37 mph
Clutch	Gear: dry single disc (9.4 in); HST: n/a	Gear: dry single disc (10.8 in); HST: n/a
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Mechanical rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth seat with weight control, easy fore/aft movement and adjustable armrests	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests
Front Axle Type	Four-wheel drive (FWD)	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb

Overall Width	66.4 in	69.1 in
Wheelbase	66 in	73.2 in
Ground Clearance	Not Published	15 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	111.8 in (right turn); 123.2 in (left turn) (with brake applied)
Height to Top of ROPS	92.7 in	97.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	90 in	94 in
Overall Length	119 in	128.1 in

Tractor Weight (Base)	ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb	ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	9.5-16
R1 Agricultural - Rear	11.2-24	13.6-24
R3 Turf - Front	25x8.50-14	28x8.50-15
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	12x16.5
R4 Industrial - Rear	43x16.00-20	17.5Lx24

Quick Attach Loader System	Tool-free loader mount; optional skid-steer quick-attach plates	Tool-free loader mount; optional skid-steer quick-attach plates
Loader Model	250TLA	260TLA
Loader Lift Height	250TLA: 104 in (at pivot pin)	260TLA: 109 in (at pivot pin)
Loader Lift Capacity (Full Height)	250TLA: 1,822 lb (at bucket pivot pin, max height)	260TLA: 2,371 lb (at bucket pivot pin, max height)
Loader Breakout Force	250TLA: 3,257 lb (at bucket pivot pin)	260TLA: 4,081 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)

Find a New Holland dealer near you

New Holland Boomer 40 vs New Holland Boomer 45: Quick Answers

Which has more horsepower, the New Holland Boomer 40 or the New Holland Boomer 45?: The New Holland Boomer 45 leads on engine hp at 45 hp hp, compared to 40 hp hp for the New Holland Boomer 40.
Which has more PTO horsepower, the New Holland Boomer 40 or the New Holland Boomer 45?: The New Holland Boomer 45 leads on pto hp at 38.2 hp hp, compared to 34 hp hp for the New Holland Boomer 40.
Which is heavier, the New Holland Boomer 40 or the New Holland Boomer 45?: The New Holland Boomer 45 leads on weight at 4,194 lb lb, compared to 3,574 lb lb for the New Holland Boomer 40.
Which has more loader lift capacity, the New Holland Boomer 40 or the New Holland Boomer 45?: The New Holland Boomer 45 leads on loader lift at 2,371 lb lb, compared to 1,822 lb lb for the New Holland Boomer 40.
Which has more three-point hitch lift capacity, the New Holland Boomer 40 or the New Holland Boomer 45?: The New Holland Boomer 45 leads on 3-pt lift (24 in) at 2,116 lb lb, compared to 1,345 lb lb for the New Holland Boomer 40.

More Head-to-Heads

Category Verdict

Spec	New Holland Boomer 40	New Holland Boomer 45
Engine HP (hp)	40 hp	▲ 45 hp
PTO HP (hp)	34 hp	▲ 38.2 hp
Weight (lb)	3,574 lb	▲ 4,194 lb
Loader Lift (lb)	1,822 lb	▲ 2,371 lb
3-Pt Lift (24 in) (lb)	1,345 lb	▲ 2,116 lb
Lift Height (in)	104 in	▲ 109 in
Breakout Force (lbf)	3,257 lbf	▲ 4,081 lbf
Hydraulic Flow (gpm)	13.5 gpm	13.5 gpm
Travel Speed (mph)	14.8 mph	▲ 17.9 mph

The headline numbers at a glance.

New Holland Boomer 40New Holland Boomer 45

Engine HPhp

40 hp

▲45 hp

PTO HPhp

34 hp

32 hp

▲38.2 hp

36 hp

GearHSTGearHST

Weightlb

2,804 lb

2,870 lb

3,574 lb

3,424 lb

3,490 lb

▲4,194 lb

ROPS GearROPS HSTCabROPS GearROPS HSTCab

Loader Liftlb

1,822 lb

▲2,371 lb

3-Pt Lift (24 in)lb

1,345 lb

▲2,116 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 40	New HollandBoomer 45


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3CRV-T4	L3CRV-T9A
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	45 hp
PTO Power	Gear: 34 hp; HST: 32 hp	Gear: 38.2 hp; HST: 36 hp
Engine Emissions Constraints	Tier 4B (final)	Tier 4B (final)
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Replaceable primary and inner elements	Replaceable primary and inner elements
Fuel System	Electronically controlled common rail direct injection	Electronically controlled common rail direct injection
Alternator	ROPS: 70 A, 12 V; Cab: 85 A, 12 V	ROPS: 70 A, 12 V; Cab: 85 A, 12 V

Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	Up to 2 (second valve optional)	Up to 2 (second valve optional)

Fuel Tank Capacity	ROPS: 10.5 gal; Cab: 12.4 gal	ROPS: 10.5 gal; Cab: 12.4 gal
Coolant Capacity	7.5 qt	2.3 gal
Crankcase Capacity	5.8 qt	5.8 qt
Transmission / Hydraulic System Capacity	8.5 gal	11.4 gal
Front Axle Fluid Capacity	6.87 qt	2.2 gal

PTO Type	Independent, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2000 rpm)	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	2,756 lb
Hitch Lift Capacity (at 24”)	1,345 lb	2,116 lb
Lift Control Type	Position control (draft control optional)	Position control (draft control optional)

Transmission Type	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	Gear: 12F/12R; HST: 3-range	Gear: 16F/16R; HST: 3-range
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Gear: 17.0 mph; HST: 17.9 mph
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 13.60 mph	Gear: 15.3 mph; HST: 11.37 mph
Clutch	Gear: dry single disc (9.4 in); HST: n/a	Gear: dry single disc (10.8 in); HST: n/a
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Mechanical rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth seat with weight control, easy fore/aft movement and adjustable armrests	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests
Front Axle Type	Four-wheel drive (FWD)	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb

Overall Width	66.4 in	69.1 in
Wheelbase	66 in	73.2 in
Ground Clearance	Not Published	15 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	111.8 in (right turn); 123.2 in (left turn) (with brake applied)
Height to Top of ROPS	92.7 in	97.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	90 in	94 in
Overall Length	119 in	128.1 in

Tractor Weight (Base)	ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb	ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	9.5-16
R1 Agricultural - Rear	11.2-24	13.6-24
R3 Turf - Front	25x8.50-14	28x8.50-15
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	12x16.5
R4 Industrial - Rear	43x16.00-20	17.5Lx24

Quick Attach Loader System	Tool-free loader mount; optional skid-steer quick-attach plates	Tool-free loader mount; optional skid-steer quick-attach plates
Loader Model	250TLA	260TLA
Loader Lift Height	250TLA: 104 in (at pivot pin)	260TLA: 109 in (at pivot pin)
Loader Lift Capacity (Full Height)	250TLA: 1,822 lb (at bucket pivot pin, max height)	260TLA: 2,371 lb (at bucket pivot pin, max height)
Loader Breakout Force	250TLA: 3,257 lb (at bucket pivot pin)	260TLA: 4,081 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)

Find a New Holland dealer near you

New Holland Boomer 40 vs New Holland Boomer 45: Quick Answers

Which has more horsepower, the New Holland Boomer 40 or the New Holland Boomer 45?

The New Holland Boomer 45 leads on engine hp at 45 hp hp, compared to 40 hp hp for the New Holland Boomer 40.

Which has more PTO horsepower, the New Holland Boomer 40 or the New Holland Boomer 45?

The New Holland Boomer 45 leads on pto hp at 38.2 hp hp, compared to 34 hp hp for the New Holland Boomer 40.

Which is heavier, the New Holland Boomer 40 or the New Holland Boomer 45?

The New Holland Boomer 45 leads on weight at 4,194 lb lb, compared to 3,574 lb lb for the New Holland Boomer 40.

Which has more loader lift capacity, the New Holland Boomer 40 or the New Holland Boomer 45?

The New Holland Boomer 45 leads on loader lift at 2,371 lb lb, compared to 1,822 lb lb for the New Holland Boomer 40.

Which has more three-point hitch lift capacity, the New Holland Boomer 40 or the New Holland Boomer 45?

The New Holland Boomer 45 leads on 3-pt lift (24 in) at 2,116 lb lb, compared to 1,345 lb lb for the New Holland Boomer 40.

New Holland Boomer 40 vs New Holland Boomer 45

Category Verdict

Full Spec Sheet

New Holland Boomer 40 vs New Holland Boomer 45: Quick Answers

More Head-to-Heads

More in the resource center

Look up a tractor

Side-by-side comparison

The Netflix of tractor videos

Tractor guides and articles

New Holland Boomer 40 vs New Holland Boomer 45

Category Verdict

Full Spec Sheet

New Holland Boomer 40 vs New Holland Boomer 45: Quick Answers

More Head-to-Heads
