New Holland Boomer 40 vs New Holland TC45DA

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland TC45DA leads 7 categories to 1. Machine pages: New Holland Boomer 40 and New Holland TC45DA.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 40	New Holland TC45DA
Engine HP (hp)	40 hp	▲ 45 hp
PTO HP (hp)	34 hp	▲ 37.8 hp
Weight (lb)	▲ 3,574 lb	3,565 lb
Loader Lift (lb)	1,822 lb	▲ 2,000 lb
3-Pt Lift (24 in) (lb)	1,345 lb	▲ 2,330 lb
Lift Height (in)	104 in	▲ 106 in
Breakout Force (lbf)	3,257 lbf	▲ 3,540 lbf
Hydraulic Flow (gpm)	13.5 gpm	▲ 14.9 gpm
Travel Speed (mph)	14.8 mph	n/a

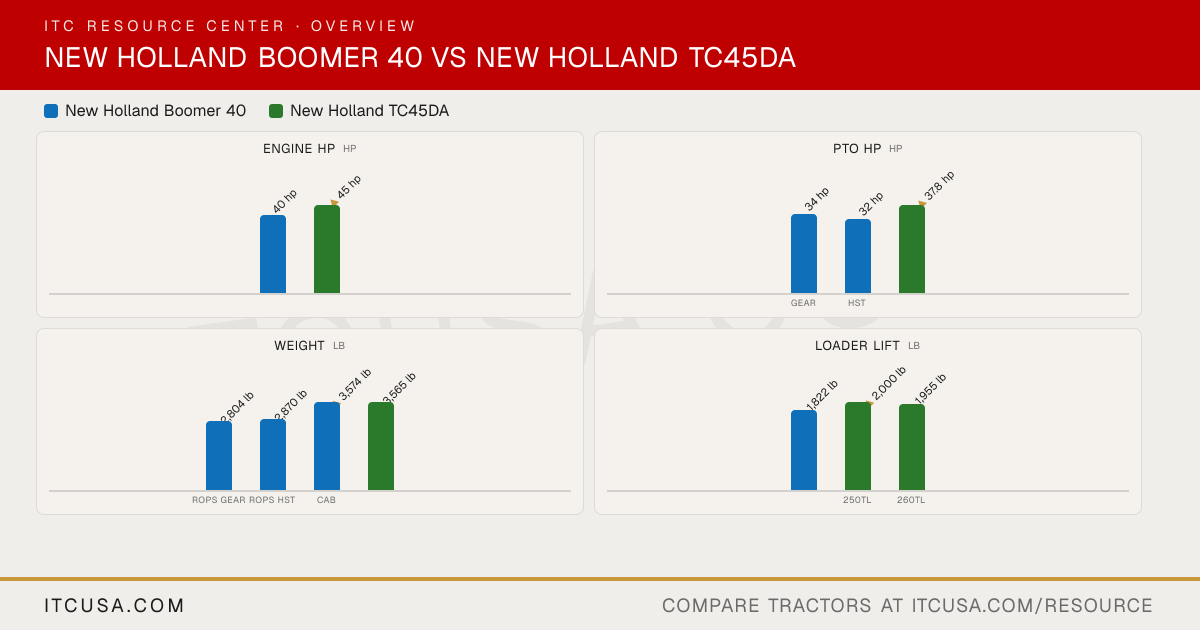

The headline numbers at a glance.

New Holland Boomer 40New Holland TC45DA

Engine HPhp

40 hp

▲45 hp

PTO HPhp

34 hp

32 hp

▲37.8 hp

GearHST

Weightlb

2,804 lb

2,870 lb

▲3,574 lb

3,565 lb

ROPS GearROPS HSTCab

Loader Liftlb

1,822 lb

▲2,000 lb

1,955 lb

250TL260TL

3-Pt Lift (24 in)lb

1,345 lb

▲2,330 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 40	New HollandTC45DA


Engine Manufacturer	LS Mtron	Shibaura
Engine Model	L3CRV-T4	N844L
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	4-cylinder diesel
No. of Cylinders	3	4
Displacement	114.7 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	45 hp
PTO Power	Gear: 34 hp; HST: 32 hp	37.8 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid cooled	Liquid-cooled
Air Cleaner	Replaceable primary and inner elements	Dual dry element
Fuel System	Electronically controlled common rail direct injection	Not Published
Alternator	ROPS: 70 A, 12 V; Cab: 85 A, 12 V	40 A

Pump Type	Gear	Gear pump
Implement Flow	8.2 gpm	9.8 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	5.1 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	14.9 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	14.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	Up to 2 (second valve optional)	3 rear (optional); 2 mid (optional)

Fuel Tank Capacity	ROPS: 10.5 gal; Cab: 12.4 gal	13 gal
Coolant Capacity	7.5 qt	8.4 qt
Crankcase Capacity	5.8 qt	6.3 qt
Transmission / Hydraulic System Capacity	8.5 gal	38 qt
Front Axle Fluid Capacity	6.87 qt	Not Published

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm (1.375 in) at 2400 engine rpm
Mid-PTO Availability	Standard (2000 rpm)	Optional (with hydrostatic transmission)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	Not Published
Hitch Lift Capacity (at 24”)	1,345 lb	2,330 lb
Lift Control Type	Position control (draft control optional)	Deluxe 3-point hitch with flexible link ends, telescoping stabilizers, swinging drawbar and crank-style leveling (most models)

Transmission Type	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	2-range hydrostatic with DualPower Hi/Lo powershift
No. of Speeds	Gear: 12F/12R; HST: 3-range	Infinite (2 hydrostatic ranges, each with DualPower High/Low)
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Not Published
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 13.60 mph	Not Published
Clutch	Gear: dry single disc (9.4 in); HST: n/a	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests	Accommodator seat on an inclined sliding track, 3 in of vertical suspension, swivels up to 20 degrees (5 positions); cab: cloth seat with weight-adjustable suspension
Front Axle Type	Four-wheel drive (FWD)	FWD (standard); SuperSteer FWD with Sensitrak automatic 4WD engagement (optional); 2WD not available
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	FWD: 125.2 in; SuperSteer FWD: 129.5 in
Overall Width	66.4 in	66.6 in (ag tires)
Wheelbase	66 in	FWD: 73.5 in; SuperSteer FWD: 81.0 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	Not Published
Height to Top of ROPS	92.7 in	95 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	90 in	90.1 in (R4 tires)

Tractor Weight (Base)	ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb	3,565 lb (FWD ROPS, R4 tires); 4,115 lb (TC45DA CAB)
Weight with ROPS and Loader	Not Published	4,770 lb
Weight with Cab and Loader	Not Published	5,320 lb

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Agricultural, industrial or turf tires; Galaxy Turf Special available from the factory
R1 Agricultural - Front	7-14	2WD: 5.50-16 or 7.50-15; 4WD: 7-16 or 8-16
R1 Agricultural - Rear	11.2-24	13.6-24 or 14.9-24
R3 Turf - Front	25x8.50-14	2WD: 25x8.50-14; 4WD: 27x8.50-15
R3 Turf - Rear	41x14.00-20	44x18-20
R4 Industrial - Front	25x8.50-14	10-16.5
R4 Industrial - Rear	43x16.00-20	17.5-24

Quick Attach Loader System	New Holland Quick Mount loader; optional skid steer quick attach plates	Quick-Mount loader mounting; pin-on or quick-attach buckets
Loader Model	250TLA	250TL (non SuperSteer); 260TL (with SuperSteer)
Loader Lift Height	250TLA: 104 in	250TL: 105 in; 260TL: 106 in
Loader Lift Capacity (Full Height)	250TLA: 1,822 lb	250TL: 2,000 lb; 260TL: 1,955 lb (at pins, max height)
Loader Breakout Force	250TLA: 3,257 lb	250TL: 3,540 lb; 260TL: 3,254 lb (at pins)

Warranty Length & Coverage	Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)	Not Published

Find a New Holland dealer near you

New Holland Boomer 40 vs New Holland TC45DA: Quick Answers

Which has more horsepower, the New Holland Boomer 40 or the New Holland TC45DA?: The New Holland TC45DA leads on engine hp at 45 hp hp, compared to 40 hp hp for the New Holland Boomer 40.
Which has more PTO horsepower, the New Holland Boomer 40 or the New Holland TC45DA?: The New Holland TC45DA leads on pto hp at 37.8 hp hp, compared to 34 hp hp for the New Holland Boomer 40.
Which is heavier, the New Holland Boomer 40 or the New Holland TC45DA?: The New Holland Boomer 40 leads on weight at 3,574 lb lb, compared to 3,565 lb lb for the New Holland TC45DA.
Which has more loader lift capacity, the New Holland Boomer 40 or the New Holland TC45DA?: The New Holland TC45DA leads on loader lift at 2,000 lb lb, compared to 1,822 lb lb for the New Holland Boomer 40.
Which has more three-point hitch lift capacity, the New Holland Boomer 40 or the New Holland TC45DA?: The New Holland TC45DA leads on 3-pt lift (24 in) at 2,330 lb lb, compared to 1,345 lb lb for the New Holland Boomer 40.
