New Holland TC30 vs New Holland TC33D
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the New Holland TC33D leads 6 categories to 1 (2 tied). Machine pages: New Holland TC30 and New Holland TC33D.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

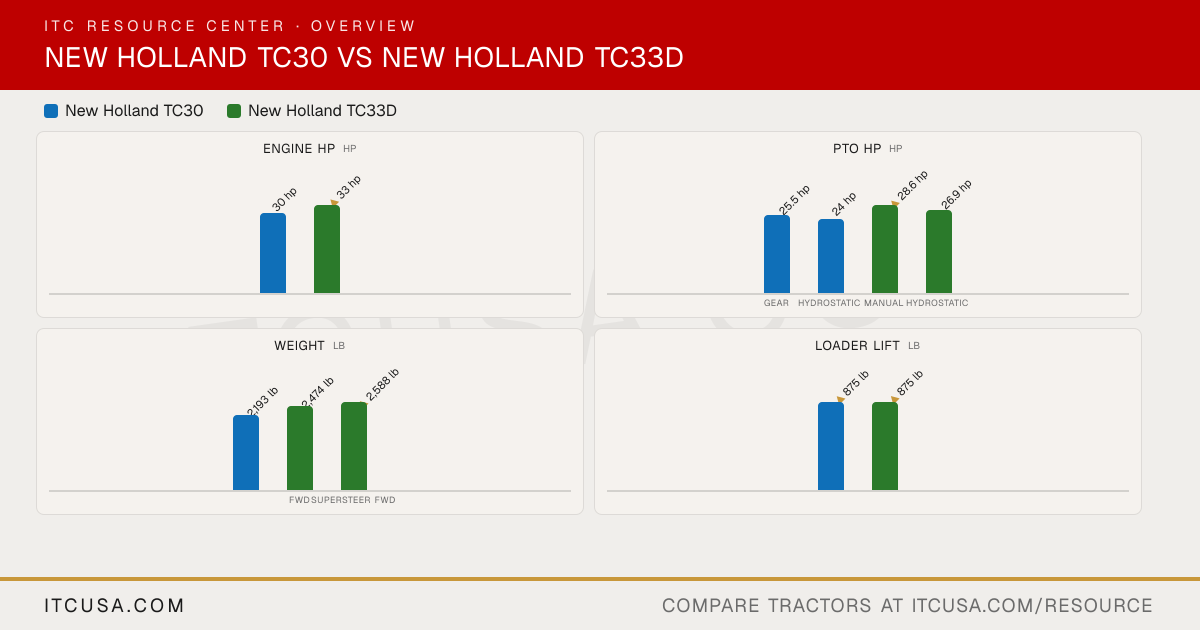

Category Verdict
| Spec | New Holland TC30 | New Holland TC33D |
|---|---|---|
| Engine HP (hp) | 30 hp | ▲ 33 hp |
| PTO HP (hp) | 25.5 hp | ▲ 28.6 hp |
| Weight (lb) | 2,193 lb | ▲ 2,588 lb |
| Loader Lift (lb) | 875 lb | 875 lb |
| 3-Pt Lift (24 in) (lb) | 1,635 lb | 1,635 lb |
| Lift Height (in) | 100.5 in | ▲ 100.8 in |
| Breakout Force (lbf) | 1,602 lbf | ▲ 2,344 lbf |
| Hydraulic Flow (gpm) | 10 gpm | ▲ 12.7 gpm |
| Travel Speed (mph) | ▲ 14.5 mph | 14.3 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | New HollandTC30 | New HollandTC33D |
|---|
| Engine Manufacturer | Shibaura | Shibaura |
|---|---|---|
| Engine Model | N843 | Not Published |
| Engine Type | 3-cylinder naturally aspirated diesel | 3-cylinder liquid-cooled diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 91.3 in³ | 91.3 in³ |
| Rated Engine Speed | 2600 rpm | 2800 rpm |
| Engine Power (Gross) | 30 hp | 33 hp |
| PTO Power | Gear: 25.5 hp; Hydrostatic: 24 hp | Manual: 28.6 hp; Hydrostatic: 26.9 hp |
| Engine Emissions Constraints | Not Published | Not Published |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Not Published | Not Published |
| Fuel System | Not Published | Not Published |
| Alternator | Not Published | Not Published |
New Holland TC30 vs New Holland TC33D: Quick Answers
- Which has more horsepower, the New Holland TC30 or the New Holland TC33D?
- The New Holland TC33D leads on engine hp at 33 hp hp, compared to 30 hp hp for the New Holland TC30.
- Which has more PTO horsepower, the New Holland TC30 or the New Holland TC33D?
- The New Holland TC33D leads on pto hp at 28.6 hp hp, compared to 25.5 hp hp for the New Holland TC30.
- Which is heavier, the New Holland TC30 or the New Holland TC33D?
- The New Holland TC33D leads on weight at 2,588 lb lb, compared to 2,193 lb lb for the New Holland TC30.
- Which has more loader lift capacity, the New Holland TC30 or the New Holland TC33D?
- They are effectively tied: both machines are rated at 875 lb lb for loader lift.
- Which has more three-point hitch lift capacity, the New Holland TC30 or the New Holland TC33D?
- They are effectively tied: both machines are rated at 1,635 lb lb for 3-pt lift (24 in).
