New Holland Workmaster 25S vs TYM T2025P

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM T2025P leads 7 categories to 1 (1 tied). Machine pages: New Holland Workmaster 25S and TYM T2025P.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 25S	TYM T2025P
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	17.2 hp	▲ 18.3 hp
Weight (lb)	1,805 lb	▲ 2,207 lb
Loader Lift (lb)	1,005 lb	▲ 1,380 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,235 lb
Lift Height (in)	72 in	▲ 87.7 in
Breakout Force (lbf)	▲ 2,078 lbf	2,059 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 6.9 gpm
Travel Speed (mph)	9.1 mph	▲ 13.6 mph

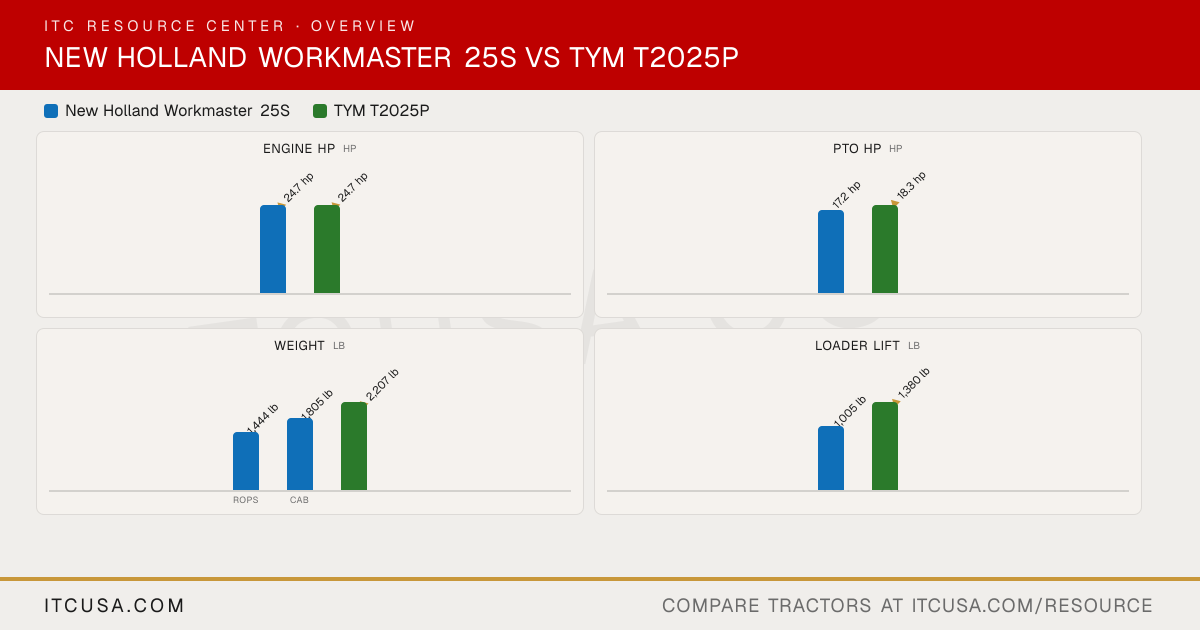

The headline numbers at a glance.

New Holland Workmaster 25STYM T2025P

Engine HPhp

▲24.7 hp

PTO HPhp

17.2 hp

▲18.3 hp

Weightlb

1,444 lb

1,805 lb

▲2,207 lb

ROPSCab

Loader Liftlb

1,005 lb

▲1,380 lb

3-Pt Lift (24 in)lb

728 lb

▲1,235 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 25S	TYMT2025P


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F	3TNV80F-NXDKTFX
Engine Type	3-cylinder, naturally aspirated, liquid-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	24.7 hp	24.7 hp
PTO Power	17.2 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Pressurized liquid with recirculating bypass	Not Published
Air Cleaner	Single-element dry air cleaner	Single dry
Fuel System	In-line injection pump, indirect injection (swirl chamber)	IDI
Alternator	40 A, 12 V	40 A, 12 V

Pump Type	Gear	Single gear pump
Implement Flow	4.6 gpm	4.17 gpm
Steering Flow	2.1 gpm	2.77 gpm
Total Hydraulic Flow	6.7 gpm	6.94 gpm
Overall Hydraulic Pump Flow	6.7 gpm	6.94 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	8.4 gal
Coolant Capacity	3.49 qt	3.8 qt
Crankcase Capacity	3 qt	Not Published
Transmission / Hydraulic System Capacity	3.3 gal	4.49 gal
Front Axle Fluid Capacity	0.5 gal	4.7 qt

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2,500 rpm)	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	1,550 lb
Hitch Lift Capacity (at 24”)	728 lb	1,235 lb
Lift Control Type	Lift-hold-lower	Position control

Transmission Type	2-range hydrostatic, dual pedal	HST
No. of Speeds	Infinite (2 ranges)	2
Max Travel Speed (Forward)	9.1 mph	13.57 mph
Max Travel Speed (Reverse)	5.5 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical, foot-operated rear differential lock	Differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydraulic
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Deluxe high-back seat with armrests and adjustable backrest	Adjustable suspension seat w/ armrests
Front Axle Type	4WD	Selectable 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	97.4 in	105.11 in
Overall Width	46.7 in	56.29 in
Wheelbase	56.1 in	61.02 in
Ground Clearance	12 in	10.23 in
Min. Turn Radius without Brakes	94 in	110.23 in
Height to Top of ROPS	90 in	85.94 in
Height to Top of ROPS (folded)	64 in	Not Published
Height to Top of Cab Model	87.4 in	Not Published

Tractor Weight (Base)	ROPS: 1,444 lb; Cab: 1,805 lb	2,207 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.50-10	23x8.5-12
R3 Turf - Rear	26x12.0-12	33x12.5-16.5
R4 Industrial - Front	18x8.50-10	23x8.5-14
R4 Industrial - Rear	26x12.0-12	14-17.5

Quick Attach Loader System	100LC: Quick Mount system, no tools needed	L2025P: Quick attach mechanism
Loader Model	100LC	L2025P
Loader Lift Height	100LC: 72 in	L2025P: 87.7 in
Loader Lift Capacity (Full Height)	100LC: 1,005 lb	L2025P: 1,380 lb
Loader Breakout Force	100LC: 2,078 lb	L2025P: 2,059 lb

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months

Find a New Holland dealer near you Find a TYM dealer near you

New Holland Workmaster 25S vs TYM T2025P: Quick Answers

Which has more horsepower, the New Holland Workmaster 25S or the TYM T2025P?: They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.
Which has more PTO horsepower, the New Holland Workmaster 25S or the TYM T2025P?: The TYM T2025P leads on pto hp at 18.3 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which is heavier, the New Holland Workmaster 25S or the TYM T2025P?: The TYM T2025P leads on weight at 2,207 lb lb, compared to 1,805 lb lb for the New Holland Workmaster 25S.
Which has more loader lift capacity, the New Holland Workmaster 25S or the TYM T2025P?: The TYM T2025P leads on loader lift at 1,380 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.
Which has more three-point hitch lift capacity, the New Holland Workmaster 25S or the TYM T2025P?: The TYM T2025P leads on 3-pt lift (24 in) at 1,235 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.

More Head-to-Heads

Category Verdict

Spec	New Holland Workmaster 25S	TYM T2025P
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	17.2 hp	▲ 18.3 hp
Weight (lb)	1,805 lb	▲ 2,207 lb
Loader Lift (lb)	1,005 lb	▲ 1,380 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,235 lb
Lift Height (in)	72 in	▲ 87.7 in
Breakout Force (lbf)	▲ 2,078 lbf	2,059 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 6.9 gpm
Travel Speed (mph)	9.1 mph	▲ 13.6 mph

The headline numbers at a glance.

New Holland Workmaster 25STYM T2025P

Engine HPhp

▲24.7 hp

PTO HPhp

17.2 hp

▲18.3 hp

Weightlb

1,444 lb

1,805 lb

▲2,207 lb

ROPSCab

Loader Liftlb

1,005 lb

▲1,380 lb

3-Pt Lift (24 in)lb

728 lb

▲1,235 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 25S	TYMT2025P


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F	3TNV80F-NXDKTFX
Engine Type	3-cylinder, naturally aspirated, liquid-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	24.7 hp	24.7 hp
PTO Power	17.2 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Pressurized liquid with recirculating bypass	Not Published
Air Cleaner	Single-element dry air cleaner	Single dry
Fuel System	In-line injection pump, indirect injection (swirl chamber)	IDI
Alternator	40 A, 12 V	40 A, 12 V

Pump Type	Gear	Single gear pump
Implement Flow	4.6 gpm	4.17 gpm
Steering Flow	2.1 gpm	2.77 gpm
Total Hydraulic Flow	6.7 gpm	6.94 gpm
Overall Hydraulic Pump Flow	6.7 gpm	6.94 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	8.4 gal
Coolant Capacity	3.49 qt	3.8 qt
Crankcase Capacity	3 qt	Not Published
Transmission / Hydraulic System Capacity	3.3 gal	4.49 gal
Front Axle Fluid Capacity	0.5 gal	4.7 qt

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2,500 rpm)	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	1,550 lb
Hitch Lift Capacity (at 24”)	728 lb	1,235 lb
Lift Control Type	Lift-hold-lower	Position control

Transmission Type	2-range hydrostatic, dual pedal	HST
No. of Speeds	Infinite (2 ranges)	2
Max Travel Speed (Forward)	9.1 mph	13.57 mph
Max Travel Speed (Reverse)	5.5 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical, foot-operated rear differential lock	Differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydraulic
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Deluxe high-back seat with armrests and adjustable backrest	Adjustable suspension seat w/ armrests
Front Axle Type	4WD	Selectable 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	97.4 in	105.11 in
Overall Width	46.7 in	56.29 in
Wheelbase	56.1 in	61.02 in
Ground Clearance	12 in	10.23 in
Min. Turn Radius without Brakes	94 in	110.23 in
Height to Top of ROPS	90 in	85.94 in
Height to Top of ROPS (folded)	64 in	Not Published
Height to Top of Cab Model	87.4 in	Not Published

Tractor Weight (Base)	ROPS: 1,444 lb; Cab: 1,805 lb	2,207 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.50-10	23x8.5-12
R3 Turf - Rear	26x12.0-12	33x12.5-16.5
R4 Industrial - Front	18x8.50-10	23x8.5-14
R4 Industrial - Rear	26x12.0-12	14-17.5

Quick Attach Loader System	100LC: Quick Mount system, no tools needed	L2025P: Quick attach mechanism
Loader Model	100LC	L2025P
Loader Lift Height	100LC: 72 in	L2025P: 87.7 in
Loader Lift Capacity (Full Height)	100LC: 1,005 lb	L2025P: 1,380 lb
Loader Breakout Force	100LC: 2,078 lb	L2025P: 2,059 lb

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months

Find a New Holland dealer near you Find a TYM dealer near you

New Holland Workmaster 25S vs TYM T2025P: Quick Answers

Which has more horsepower, the New Holland Workmaster 25S or the TYM T2025P?

They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.

Which has more PTO horsepower, the New Holland Workmaster 25S or the TYM T2025P?

The TYM T2025P leads on pto hp at 18.3 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which is heavier, the New Holland Workmaster 25S or the TYM T2025P?

The TYM T2025P leads on weight at 2,207 lb lb, compared to 1,805 lb lb for the New Holland Workmaster 25S.

Which has more loader lift capacity, the New Holland Workmaster 25S or the TYM T2025P?

The TYM T2025P leads on loader lift at 1,380 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.

Which has more three-point hitch lift capacity, the New Holland Workmaster 25S or the TYM T2025P?

The TYM T2025P leads on 3-pt lift (24 in) at 1,235 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
