Which has more horsepower, the New Holland Workmaster 25S or the TYM T25?

They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.

Which has more PTO horsepower, the New Holland Workmaster 25S or the TYM T25?

The TYM T25 leads on pto hp at 18.3 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which is heavier, the New Holland Workmaster 25S or the TYM T25?

The TYM T25 leads on weight at 2,726 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.

Which has more loader lift capacity, the New Holland Workmaster 25S or the TYM T25?

The TYM T25 leads on loader lift at 1,380 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.

Which has more three-point hitch lift capacity, the New Holland Workmaster 25S or the TYM T25?

The TYM T25 leads on 3-pt lift (24 in) at 1,229.7 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.

New Holland Workmaster 25S vs TYM T25

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM T25 leads 7 categories to 1 (1 tied). Machine pages: New Holland Workmaster 25S and TYM T25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 25S	TYM T25
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	17.2 hp	▲ 18.3 hp
Weight (lb)	1,444 lb	▲ 2,726 lb
Loader Lift (lb)	1,005 lb	▲ 1,380 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,229.7 lb
Lift Height (in)	72 in	▲ 87.2 in
Breakout Force (lbf)	▲ 2,078 lbf	2,059 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 6.9 gpm
Travel Speed (mph)	9.1 mph	▲ 13.7 mph

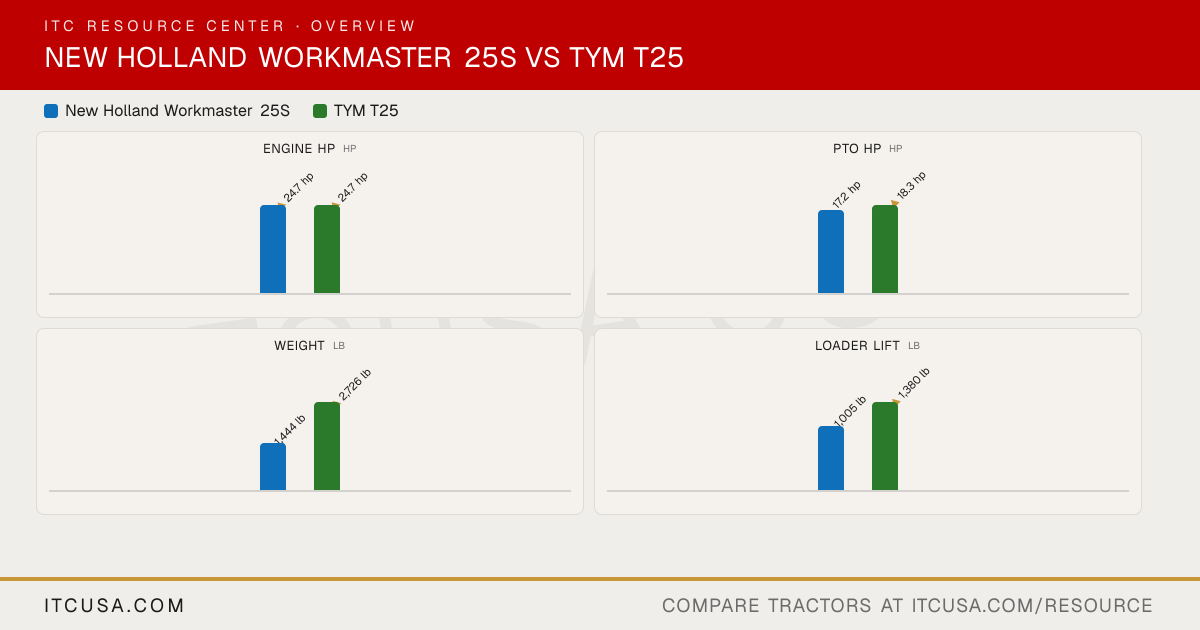

The headline numbers at a glance.

New Holland Workmaster 25STYM T25

Engine HPhp

▲24.7 hp

PTO HPhp

17.2 hp

▲18.3 hp

Weightlb

1,444 lb

▲2,726 lb

Loader Liftlb

1,005 lb

▲1,380 lb

3-Pt Lift (24 in)lb

728 lb

▲1,229.7 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 25S	TYMT25


PTO Power	17.2 hp	18.3 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Not Published	Single dry
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	In-line injection pump	IDI
Displacement	76.9 in³	77.3 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3000 rpm
Cooling System Type	Pressurized liquid with recirculating bypass	Water-cooled
Engine Manufacturer	Yanmar	Yanmar 3TNV80F
Engine Power (Gross)	24.7 hp	24.7 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4

Weight with ROPS and Loader	1,444 lb (ROPS tractor only)	2,726 lb
Weight with Cab and Loader	1,805 lb (Cab tractor only)	Not Published

Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear	Single gear pump
Steering Flow	2.1 gpm	2.8 gpm
Implement Flow	4.6 gpm	4.2 gpm
Total Hydraulic Flow	6.7 gpm	6.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.7 gpm	6.9 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	0	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent, electro-hydraulic engagement	Independent
Lift Control Type	Lift-hold-lower	Position control
Hitch Lift Capacity	992 lb at ball ends	1,551.2 lb
Mid-PTO Availability	Standard (2,500 rpm)	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	728 lb	1,229.7 lb

R3 Turf - Rear	26X12.0-12	Multi-Trac CS 33x12.50-16.5 NHS TL 4PR
R3 Turf - Front	18X8.50-10	Turf Master 23x8.50-12 NHS TL 4PR
Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	26X12.0-12	36x12.5-15; Trac Chief 14-17.5 NHS TL 6PR
R4 Industrial - Front	18X8.50-10	Trac Chief 23x8.50-14 NHS TL 4PR
R1 Agricultural - Rear	Not Applicable	9.5-20 6PR
R1 Agricultural - Front	Not Applicable	6-12 4PR

Coolant Capacity	3.5 qt	3.8 qt
Crankcase Capacity	3.0 qt	2.9 qt
Fuel Tank Capacity	6.6 gal	6.6 gal
Front Axle Fluid Capacity	0.5 gal	4.7 qt
Transmission / Hydraulic System Capacity	3.0 gal	4.5 gal

Loader Lift Height	72 in	87.2 in
Loader Breakout Force	2,078 lb	2,059 lb
Quick Attach Loader System	100LC: Quick Mount system (no tools)	TL25: Quick attachment assembly
Loader Lift Capacity (Full Height)	1,005 lb	1,380 lb

Clutch	Not Applicable	Not Applicable
No. of Speeds	Infinite (2-range)	Infinite 2-Range
Transmission Type	2-Range Hydrostatic / Dual Pedal	HST
Max Travel Speed (Forward)	9.1 mph	13.7 mph
Max Travel Speed (Reverse)	5.5 mph	Not Published
Differential Lock & Limited Slip Options	Mechanical, foot-operated rear diff lock	Not Published

Brakes	Wet, multi-disc	Wet disc
Steering	Central support, bevel gear type	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	4WD (FWD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Heavy duty mechanical suspension; manual weight adjustment

Wheelbase	56.1 in	61 in
Overall Width	46.7 in	50 in
Ground Clearance	12 in	10.2 in
Height to Top of ROPS	90 in	91.3 in
Height to Top of Cab Model	87.4 in	Not Published
Height to Top of ROPS (folded)	64 in	Not Published
Min. Turn Radius without Brakes	94 in	111.8 in
Overall Length with 3-Point Hitch	97.4 in	102.8 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T264 / T25 Tractor Step $145.00 Rural King RK25 Hydraulic Valve Cover $124.99 TYM T25 Rural King RK25 Brush Guard Insert $249.99

New Holland Workmaster 25S vs TYM T25: Quick Answers

Which has more horsepower, the New Holland Workmaster 25S or the TYM T25?: They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.
Which has more PTO horsepower, the New Holland Workmaster 25S or the TYM T25?: The TYM T25 leads on pto hp at 18.3 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which is heavier, the New Holland Workmaster 25S or the TYM T25?: The TYM T25 leads on weight at 2,726 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.
Which has more loader lift capacity, the New Holland Workmaster 25S or the TYM T25?: The TYM T25 leads on loader lift at 1,380 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.
Which has more three-point hitch lift capacity, the New Holland Workmaster 25S or the TYM T25?: The TYM T25 leads on 3-pt lift (24 in) at 1,229.7 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
