New Holland Workmaster 35C vs New Holland Workmaster 40C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 40C leads 3 categories to 0 (6 tied). Machine pages: New Holland Workmaster 35C and New Holland Workmaster 40C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 35C	New Holland Workmaster 40C
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	31 hp	▲ 35.9 hp
Weight (lb)	3,062 lb	▲ 3,073 lb
Loader Lift (lb)	1,344 lb	1,344 lb
3-Pt Lift (24 in) (lb)	1,596 lb	1,596 lb
Lift Height (in)	92 in	92 in
Breakout Force (lbf)	2,138 lbf	2,138 lbf
Hydraulic Flow (gpm)	13.3 gpm	13.3 gpm
Travel Speed (mph)	14.9 mph	14.9 mph

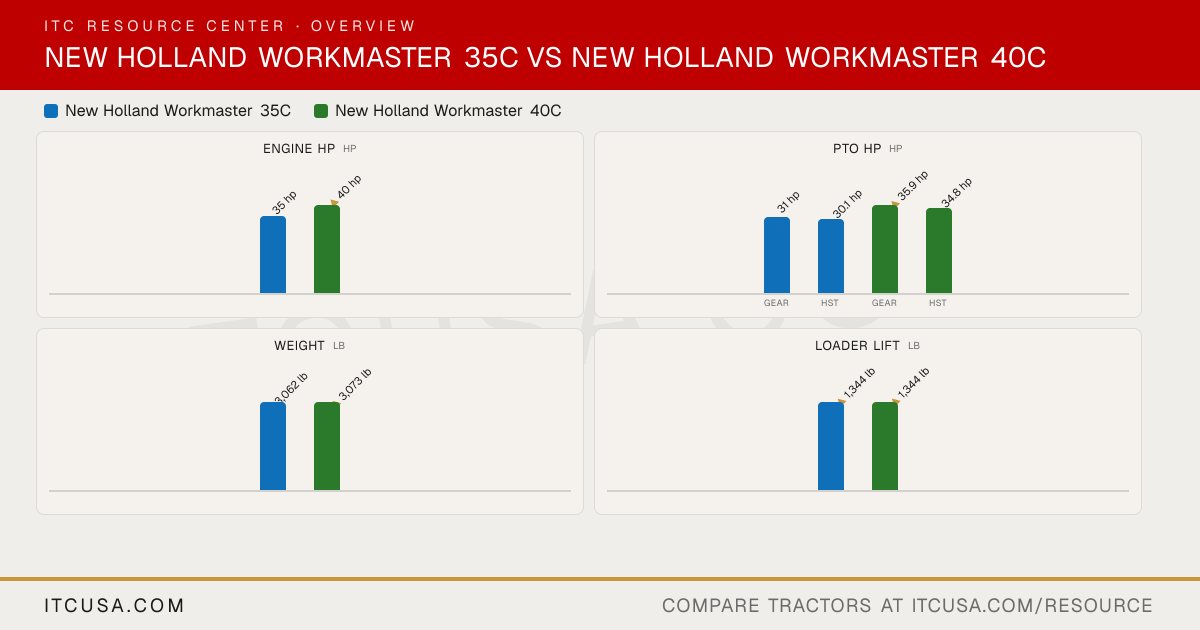

The headline numbers at a glance.

New Holland Workmaster 35CNew Holland Workmaster 40C

Engine HPhp

35 hp

▲40 hp

PTO HPhp

31 hp

30.1 hp

▲35.9 hp

34.8 hp

GearHSTGearHST

Weightlb

3,062 lb

▲3,073 lb

Loader Liftlb

▲1,344 lb

3-Pt Lift (24 in)lb

▲1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 35C	New HollandWorkmaster 40C


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, turbocharged diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	Gear: 31 hp; HST: 30.1 hp	Gear: 35.9 hp; HST: 34.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Dual-element	Dual-element
Fuel System	Common rail direct injection	Common rail direct injection
Alternator	70 A	70 A

Pump Type	Dual pump (dedicated steering pump)	Dual pump (dedicated steering pump)
Implement Flow	8.4 gpm	8.4 gpm
Steering Flow	4.9 gpm	4.9 gpm
Total Hydraulic Flow	13.3 gpm	13.3 gpm
Overall Hydraulic Pump Flow	13.3 gpm	13.3 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0 (rear remotes optional)	0 (rear remotes optional)
No. of Optional Remote Valves	Up to 3	Up to 3

Fuel Tank Capacity	12.6 gal	12.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	2067 lb	2067 lb
Hitch Lift Capacity (at 24”)	1596 lb	1596 lb
Lift Control Type	Position control with drop-rate control	Position control with drop-rate control

Transmission Type	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	Gear: 14.3 mph; HST: 14.9 mph	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock, mechanical (foot-engaged)	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Power steering (dedicated steering pump)	Power steering (dedicated steering pump)
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	4WD front axle, mechanically engaged	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	133 in	133 in
Overall Width	65.4 in	65.4 in
Wheelbase	66 in	66 in
Ground Clearance	12.7 in	12.7 in
Min. Turn Radius without Brakes	123.2 in	123.2 in
Height to Top of ROPS	92.4 in	92.4 in
Height to Top of ROPS (folded)	74 in	74 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3062 lb	3073 lb
Weight with ROPS and Loader	4131 lb	4142 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	Skid steer quick attach	Skid steer quick attach
Loader Model	250LC	250LC
Loader Lift Height	250LC: 92 in	250LC: 92 in
Loader Lift Capacity (Full Height)	250LC: 1344 lb	250LC: 1344 lb
Loader Breakout Force	250LC: 2,138 lb	250LC: 2,138 lb

Warranty Length & Coverage	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain

Find a New Holland dealer near you

New Holland Workmaster 35C vs New Holland Workmaster 40C: Quick Answers

Which has more horsepower, the New Holland Workmaster 35C or the New Holland Workmaster 40C?: The New Holland Workmaster 40C leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Workmaster 35C.
Which has more PTO horsepower, the New Holland Workmaster 35C or the New Holland Workmaster 40C?: The New Holland Workmaster 40C leads on pto hp at 35.9 hp hp, compared to 31 hp hp for the New Holland Workmaster 35C.
Which is heavier, the New Holland Workmaster 35C or the New Holland Workmaster 40C?: The New Holland Workmaster 40C leads on weight at 3,073 lb lb, compared to 3,062 lb lb for the New Holland Workmaster 35C.
Which has more loader lift capacity, the New Holland Workmaster 35C or the New Holland Workmaster 40C?: They are effectively tied: both machines are rated at 1,344 lb lb for loader lift.
Which has more three-point hitch lift capacity, the New Holland Workmaster 35C or the New Holland Workmaster 40C?: They are effectively tied: both machines are rated at 1,596 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	New Holland Workmaster 35C	New Holland Workmaster 40C
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	31 hp	▲ 35.9 hp
Weight (lb)	3,062 lb	▲ 3,073 lb
Loader Lift (lb)	1,344 lb	1,344 lb
3-Pt Lift (24 in) (lb)	1,596 lb	1,596 lb
Lift Height (in)	92 in	92 in
Breakout Force (lbf)	2,138 lbf	2,138 lbf
Hydraulic Flow (gpm)	13.3 gpm	13.3 gpm
Travel Speed (mph)	14.9 mph	14.9 mph

The headline numbers at a glance.

New Holland Workmaster 35CNew Holland Workmaster 40C

Engine HPhp

35 hp

▲40 hp

PTO HPhp

31 hp

30.1 hp

▲35.9 hp

34.8 hp

GearHSTGearHST

Weightlb

3,062 lb

▲3,073 lb

Loader Liftlb

▲1,344 lb

3-Pt Lift (24 in)lb

▲1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 35C	New HollandWorkmaster 40C


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, turbocharged diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	Gear: 31 hp; HST: 30.1 hp	Gear: 35.9 hp; HST: 34.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Dual-element	Dual-element
Fuel System	Common rail direct injection	Common rail direct injection
Alternator	70 A	70 A

Pump Type	Dual pump (dedicated steering pump)	Dual pump (dedicated steering pump)
Implement Flow	8.4 gpm	8.4 gpm
Steering Flow	4.9 gpm	4.9 gpm
Total Hydraulic Flow	13.3 gpm	13.3 gpm
Overall Hydraulic Pump Flow	13.3 gpm	13.3 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0 (rear remotes optional)	0 (rear remotes optional)
No. of Optional Remote Valves	Up to 3	Up to 3

Fuel Tank Capacity	12.6 gal	12.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	2067 lb	2067 lb
Hitch Lift Capacity (at 24”)	1596 lb	1596 lb
Lift Control Type	Position control with drop-rate control	Position control with drop-rate control

Transmission Type	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	Gear: 14.3 mph; HST: 14.9 mph	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock, mechanical (foot-engaged)	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Power steering (dedicated steering pump)	Power steering (dedicated steering pump)
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	4WD front axle, mechanically engaged	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	133 in	133 in
Overall Width	65.4 in	65.4 in
Wheelbase	66 in	66 in
Ground Clearance	12.7 in	12.7 in
Min. Turn Radius without Brakes	123.2 in	123.2 in
Height to Top of ROPS	92.4 in	92.4 in
Height to Top of ROPS (folded)	74 in	74 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3062 lb	3073 lb
Weight with ROPS and Loader	4131 lb	4142 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	Skid steer quick attach	Skid steer quick attach
Loader Model	250LC	250LC
Loader Lift Height	250LC: 92 in	250LC: 92 in
Loader Lift Capacity (Full Height)	250LC: 1344 lb	250LC: 1344 lb
Loader Breakout Force	250LC: 2,138 lb	250LC: 2,138 lb

Warranty Length & Coverage	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain

Find a New Holland dealer near you

New Holland Workmaster 35C vs New Holland Workmaster 40C: Quick Answers

Which has more horsepower, the New Holland Workmaster 35C or the New Holland Workmaster 40C?

The New Holland Workmaster 40C leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Workmaster 35C.

Which has more PTO horsepower, the New Holland Workmaster 35C or the New Holland Workmaster 40C?

The New Holland Workmaster 40C leads on pto hp at 35.9 hp hp, compared to 31 hp hp for the New Holland Workmaster 35C.

Which is heavier, the New Holland Workmaster 35C or the New Holland Workmaster 40C?

The New Holland Workmaster 40C leads on weight at 3,073 lb lb, compared to 3,062 lb lb for the New Holland Workmaster 35C.

Which has more loader lift capacity, the New Holland Workmaster 35C or the New Holland Workmaster 40C?

They are effectively tied: both machines are rated at 1,344 lb lb for loader lift.

Which has more three-point hitch lift capacity, the New Holland Workmaster 35C or the New Holland Workmaster 40C?

They are effectively tied: both machines are rated at 1,596 lb lb for 3-pt lift (24 in).
