New Holland Workmaster 40 vs New Holland Workmaster 40C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 40C leads 5 categories to 3 (1 tied). Machine pages: New Holland Workmaster 40 and New Holland Workmaster 40C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 40	New Holland Workmaster 40C
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	34 hp	▲ 35.9 hp
Weight (lb)	3,067 lb	▲ 3,073 lb
Loader Lift (lb)	▲ 1,500 lb	1,344 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 1,596 lb
Lift Height (in)	91.5 in	▲ 92 in
Breakout Force (lbf)	▲ 2,700 lbf	2,138 lbf
Hydraulic Flow (gpm)	▲ 13.5 gpm	13.3 gpm
Travel Speed (mph)	14.8 mph	▲ 14.9 mph

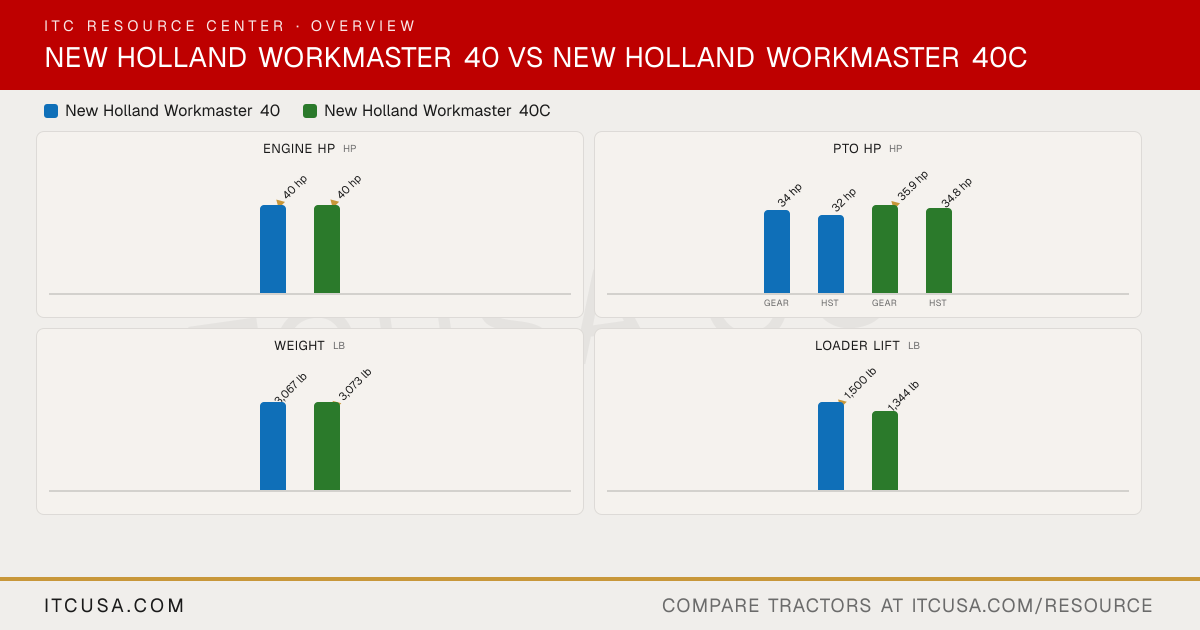

The headline numbers at a glance.

New Holland Workmaster 40New Holland Workmaster 40C

Engine HPhp

▲40 hp

PTO HPhp

34 hp

32 hp

▲35.9 hp

34.8 hp

GearHSTGearHST

Weightlb

3,067 lb

▲3,073 lb

Loader Liftlb

▲1,500 lb

1,344 lb

3-Pt Lift (24 in)lb

1,433 lb

▲1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 40	New HollandWorkmaster 40C


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3C19-T4	Not Published
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	Gear: 34 hp; HST: 32 hp	Gear: 35.9 hp; HST: 34.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Pressurized liquid with recirculating bypass	Liquid cooled
Air Cleaner	Dual element dry air cleaner (primary and inner safety element)	Dual-element
Fuel System	High pressure common rail, ECU-controlled timing	Common rail direct injection
Alternator	70 A, 12 V	70 A

Pump Type	Gear	Dual pump (dedicated steering pump)
Implement Flow	8.2 gpm	8.4 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	4.9 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.3 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0 (rear remotes optional)
No. of Optional Remote Valves	1 or 2	Up to 3

Fuel Tank Capacity	7.4 gal	12.6 gal
Coolant Capacity	7.5 qt	Not Published
Crankcase Capacity	5.8 qt	Not Published
Transmission / Hydraulic System Capacity	8.5 gal	Not Published
Front Axle Fluid Capacity	6.9 qt	Not Published

PTO Type	Independent, electro-hydraulic engagement	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	HST: Standard; Gear: Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	1,808 lb	2067 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1596 lb
Lift Control Type	Position control	Position control with drop-rate control

Transmission Type	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	Gear: 12F/12R; HST: Infinite (3 ranges)	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 14.96 mph	Not Published
Clutch	Gear: 9.4 in single dry disc; HST: Not applicable	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering (dedicated steering pump)
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Mechanical suspension seat, fore/aft adjustable, tilting	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	4WD	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	121 in	133 in
Overall Width	66.5 in	65.4 in
Wheelbase	67.5 in	66 in
Ground Clearance	13 in	12.7 in
Min. Turn Radius without Brakes	123 in (left turn); 124 in (right turn)	123.2 in
Height to Top of ROPS	87.7 in	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,067 lb	3073 lb
Weight with ROPS and Loader	Not Published	4142 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	25x8.50-14	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	140TL: Quick Mount system, no tools needed; optional skid steer quick attach plates	Skid steer quick attach
Loader Model	140TL	250LC
Loader Lift Height	140TL: 91.5 in	250LC: 92 in
Loader Lift Capacity (Full Height)	140TL: 1,500 lb	250LC: 1344 lb
Loader Breakout Force	140TL: 2,700 lb	250LC: 2,138 lb

Warranty Length & Coverage	Boomer Guard6 limited warranty: 2 years or 750 hours full coverage plus powertrain coverage to 6 years or 1,500 hours total	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain

Find a New Holland dealer near you

New Holland Workmaster 40 vs New Holland Workmaster 40C: Quick Answers

Which has more horsepower, the New Holland Workmaster 40 or the New Holland Workmaster 40C?: They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which has more PTO horsepower, the New Holland Workmaster 40 or the New Holland Workmaster 40C?: The New Holland Workmaster 40C leads on pto hp at 35.9 hp hp, compared to 34 hp hp for the New Holland Workmaster 40.
Which is heavier, the New Holland Workmaster 40 or the New Holland Workmaster 40C?: The New Holland Workmaster 40C leads on weight at 3,073 lb lb, compared to 3,067 lb lb for the New Holland Workmaster 40.
Which has more loader lift capacity, the New Holland Workmaster 40 or the New Holland Workmaster 40C?: The New Holland Workmaster 40 leads on loader lift at 1,500 lb lb, compared to 1,344 lb lb for the New Holland Workmaster 40C.
Which has more three-point hitch lift capacity, the New Holland Workmaster 40 or the New Holland Workmaster 40C?: The New Holland Workmaster 40C leads on 3-pt lift (24 in) at 1,596 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 40.

More Head-to-Heads

Category Verdict

Spec	New Holland Workmaster 40	New Holland Workmaster 40C
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	34 hp	▲ 35.9 hp
Weight (lb)	3,067 lb	▲ 3,073 lb
Loader Lift (lb)	▲ 1,500 lb	1,344 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 1,596 lb
Lift Height (in)	91.5 in	▲ 92 in
Breakout Force (lbf)	▲ 2,700 lbf	2,138 lbf
Hydraulic Flow (gpm)	▲ 13.5 gpm	13.3 gpm
Travel Speed (mph)	14.8 mph	▲ 14.9 mph

The headline numbers at a glance.

New Holland Workmaster 40New Holland Workmaster 40C

Engine HPhp

▲40 hp

PTO HPhp

34 hp

32 hp

▲35.9 hp

34.8 hp

GearHSTGearHST

Weightlb

3,067 lb

▲3,073 lb

Loader Liftlb

▲1,500 lb

1,344 lb

3-Pt Lift (24 in)lb

1,433 lb

▲1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 40	New HollandWorkmaster 40C


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3C19-T4	Not Published
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	Gear: 34 hp; HST: 32 hp	Gear: 35.9 hp; HST: 34.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Pressurized liquid with recirculating bypass	Liquid cooled
Air Cleaner	Dual element dry air cleaner (primary and inner safety element)	Dual-element
Fuel System	High pressure common rail, ECU-controlled timing	Common rail direct injection
Alternator	70 A, 12 V	70 A

Pump Type	Gear	Dual pump (dedicated steering pump)
Implement Flow	8.2 gpm	8.4 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	4.9 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.3 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0 (rear remotes optional)
No. of Optional Remote Valves	1 or 2	Up to 3

Fuel Tank Capacity	7.4 gal	12.6 gal
Coolant Capacity	7.5 qt	Not Published
Crankcase Capacity	5.8 qt	Not Published
Transmission / Hydraulic System Capacity	8.5 gal	Not Published
Front Axle Fluid Capacity	6.9 qt	Not Published

PTO Type	Independent, electro-hydraulic engagement	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	HST: Standard; Gear: Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	1,808 lb	2067 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1596 lb
Lift Control Type	Position control	Position control with drop-rate control

Transmission Type	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	Gear: 12F/12R; HST: Infinite (3 ranges)	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 14.96 mph	Not Published
Clutch	Gear: 9.4 in single dry disc; HST: Not applicable	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering (dedicated steering pump)
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Mechanical suspension seat, fore/aft adjustable, tilting	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	4WD	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	121 in	133 in
Overall Width	66.5 in	65.4 in
Wheelbase	67.5 in	66 in
Ground Clearance	13 in	12.7 in
Min. Turn Radius without Brakes	123 in (left turn); 124 in (right turn)	123.2 in
Height to Top of ROPS	87.7 in	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,067 lb	3073 lb
Weight with ROPS and Loader	Not Published	4142 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	25x8.50-14	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	140TL: Quick Mount system, no tools needed; optional skid steer quick attach plates	Skid steer quick attach
Loader Model	140TL	250LC
Loader Lift Height	140TL: 91.5 in	250LC: 92 in
Loader Lift Capacity (Full Height)	140TL: 1,500 lb	250LC: 1344 lb
Loader Breakout Force	140TL: 2,700 lb	250LC: 2,138 lb

Warranty Length & Coverage	Boomer Guard6 limited warranty: 2 years or 750 hours full coverage plus powertrain coverage to 6 years or 1,500 hours total	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain

Find a New Holland dealer near you

New Holland Workmaster 40 vs New Holland Workmaster 40C: Quick Answers

Which has more horsepower, the New Holland Workmaster 40 or the New Holland Workmaster 40C?

They are effectively tied: both machines are rated at 40 hp hp for engine hp.

Which has more PTO horsepower, the New Holland Workmaster 40 or the New Holland Workmaster 40C?

The New Holland Workmaster 40C leads on pto hp at 35.9 hp hp, compared to 34 hp hp for the New Holland Workmaster 40.

Which is heavier, the New Holland Workmaster 40 or the New Holland Workmaster 40C?

The New Holland Workmaster 40C leads on weight at 3,073 lb lb, compared to 3,067 lb lb for the New Holland Workmaster 40.

Which has more loader lift capacity, the New Holland Workmaster 40 or the New Holland Workmaster 40C?

The New Holland Workmaster 40 leads on loader lift at 1,500 lb lb, compared to 1,344 lb lb for the New Holland Workmaster 40C.

Which has more three-point hitch lift capacity, the New Holland Workmaster 40 or the New Holland Workmaster 40C?

The New Holland Workmaster 40C leads on 3-pt lift (24 in) at 1,596 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 40.
