Rural King RK24 vs Rural King RK25

Across 9 measurable specs, the Rural King RK25 leads 7 categories to 1 (1 tied). Machine pages: Rural King RK24 and Rural King RK25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

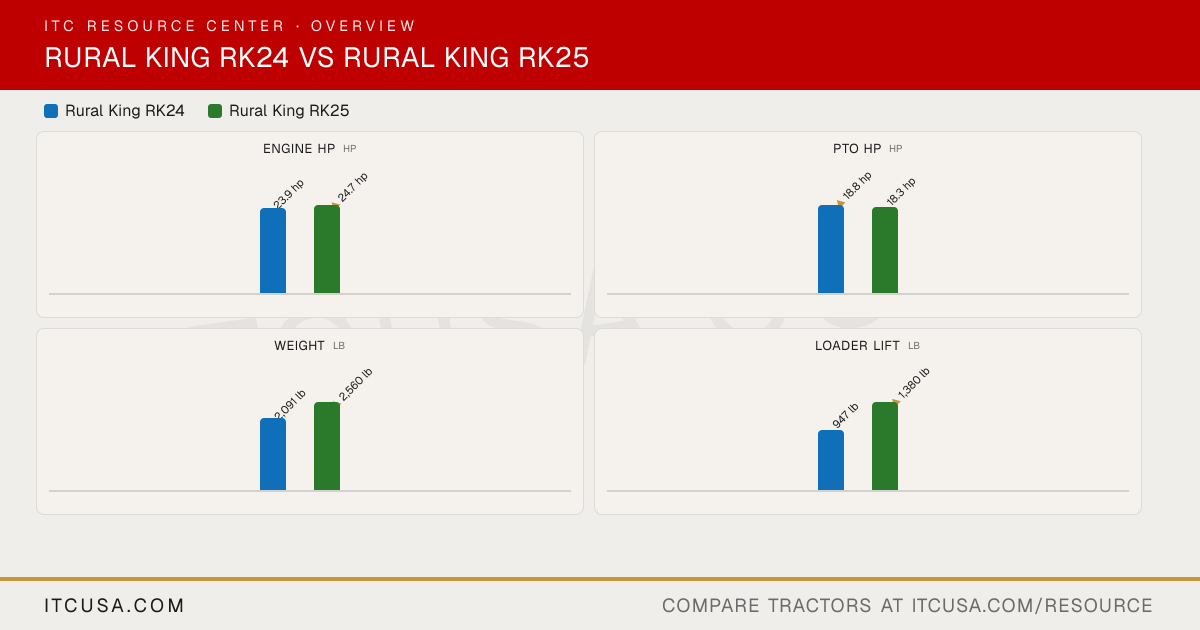

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Rural KingRK24	Rural KingRK25

▶Engine
Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV80F	3TNV80F
Engine Type	Water cooled, 4-cycle diesel	3-cylinder, liquid-cooled diesel (natural aspiration)
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	24 hp	24.7 hp
PTO Power	18.8 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water cooled, forced circulation	Liquid-cooled
Air Cleaner	Single element	Dry
Fuel System	Indirect fuel injection	Direct fuel injection
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Not Published	Single gear pump with flow divider
Implement Flow	4.18 gpm	4.18 gpm
Steering Flow	2.77 gpm	2.77 gpm
Total Hydraulic Flow	6.95 gpm	6.95 gpm
Overall Hydraulic Pump Flow	6.95 gpm	6.95 gpm
Hydraulic System Type	Live, independent	Live, independent, open centre
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	2
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	5.81 gal	6.6 gal
Coolant Capacity	0.96 gal	3.8 qt
Crankcase Capacity	0.71 gal	2.9 qt
Transmission / Hydraulic System Capacity	3.83 gal	5.8 gal
Front Axle Fluid Capacity	0.85 gal	4.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	2,000 rpm	2,000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,323 lb	1,534 lb
Hitch Lift Capacity (at 24”)	1,058 lb	1,102 lb
Lift Control Type	Position	Position
▶Transmission & Drivetrain
Transmission Type	2-range hydrostatic	2-range hydrostatic
No. of Speeds	2 ranges (high/low), infinite forward and reverse	2 Range
Max Travel Speed (Forward)	11.2 mph	13.7 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Electro-hydraulic PTO clutch assembly (hydrostatic drive, no traction clutch)	Not Published
Differential Lock & Limited Slip Options	4WD with differential lock (bevel gears with diff-lock)	4WD with mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Unit frame: engine, transmission and front axle support bolted together into a rigid assembly	Unit frame: engine, transmission and front axle support bolted together into a rigid assembly
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc, independent foot pedals that lock together	Wet disc
Seat Suspension & Adjustability	Suspension seat with armrests & retractable seat belt	Suspension seat with armrests & retractable seat belt
Front Axle Type	4WD, center-pivot reverse Eliot type	4WD, center-pivot reverse Eliot type
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	45.8 in	52.8 in
Wheelbase	57.5 in	61 in
Ground Clearance	9.4 in	7.71 in
Min. Turn Radius without Brakes	Not Published	109.5 in
Height to Top of ROPS	91.3 in	89.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	100.5 in	107.8 in
▶Weight
Tractor Weight (Base)	1,610 lb	1,881 lb
Weight with ROPS and Loader	2,091 lb (1,610 + 481, computed)	2,560 lb (1,881 + 679, computed)
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Titan: R4 Industrial (Std), R3 Turf (Opt), R1 Agricultural (Opt), R14 (Opt)	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	6-12	7x12-6
R1 Agricultural - Rear	9.5-16	11.2-16
R3 Turf - Front	20x8-10	23x8.5-12
R3 Turf - Rear	29x12.5-15	33x12.5-16.5
R4 Industrial - Front	20x8-10	23x8.5-12
R4 Industrial - Rear	27x12.5-15	12-16.5
▶Loader & Attachments
Quick Attach Loader System	L75: skid-steer compatible quick-attach	L85: skid-steer compatible quick-attach
Loader Model	L75	L85
Loader Lift Height	L75: 75.3 in (maximum lift height to pivot pin)	L85: 87.2 in (maximum lift height to pivot pin)
Loader Lift Capacity (Full Height)	L75: 947 lb (at pivot pin, to full height)	L85: 1,380 lb (at pivot pin, to full height)
Loader Breakout Force	L75: 1,680 lb (at pivot pin)	L85: 2,059 lb (at ground level, pivot pin)
▶Warranty
Warranty Length & Coverage	Government and non-institutional: basic 24 months or 2,000 hours, powertrain 96 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours	Government and non-institutional: basic 24 months or 2,000 hours, powertrain 96 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours
▶ITC Company Accessories
Accessories that fit	TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $249.99	TYM T25 Rural King RK25 Brush Guard Insert $249.99 Rural King RK25 Hydraulic Valve Cover $124.99

Find a dealer near you→

Rural King RK24 vs Rural King RK25: Quick Answers

Which has more horsepower, the Rural King RK24 or the Rural King RK25?

The Rural King RK25 leads on engine hp at 24.7 hp hp, compared to 24 hp hp for the Rural King RK24.

Which has more PTO horsepower, the Rural King RK24 or the Rural King RK25?

The Rural King RK24 leads on pto hp at 18.8 hp hp, compared to 18.3 hp hp for the Rural King RK25.

Which is heavier, the Rural King RK24 or the Rural King RK25?

The Rural King RK25 leads on weight at 1,881 lb lb, compared to 1,610 lb lb for the Rural King RK24.

Which has more loader lift capacity, the Rural King RK24 or the Rural King RK25?

The Rural King RK25 leads on loader lift at 1,380 lb lb, compared to 947 lb lb for the Rural King RK24.

Which has more three-point hitch lift capacity, the Rural King RK24 or the Rural King RK25?

The Rural King RK25 leads on 3-pt lift (24 in) at 1,102 lb lb, compared to 1,058 lb lb for the Rural King RK24.
