Solis H24 vs Solis S24 Shuttle XL

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Solis H24 leads 2 categories to 1 (4 tied). Machine pages: Solis H24 and Solis S24 Shuttle XL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Solis H24	Solis S24 Shuttle XL
Engine HP (hp)	24 hp	24 hp
Weight (lb)	2,513 lb	2,513 lb
Loader Lift (lb)	▲ 1,500 lb	1,411 lb
3-Pt Lift (24 in) (lb)	1,323 lb	1,323 lb
Lift Height (in)	85 in	85 in
Breakout Force (lbf)	▲ 1,565 lbf	1,146 lbf
Hydraulic Flow (gpm)	4 gpm	▲ 6.5 gpm

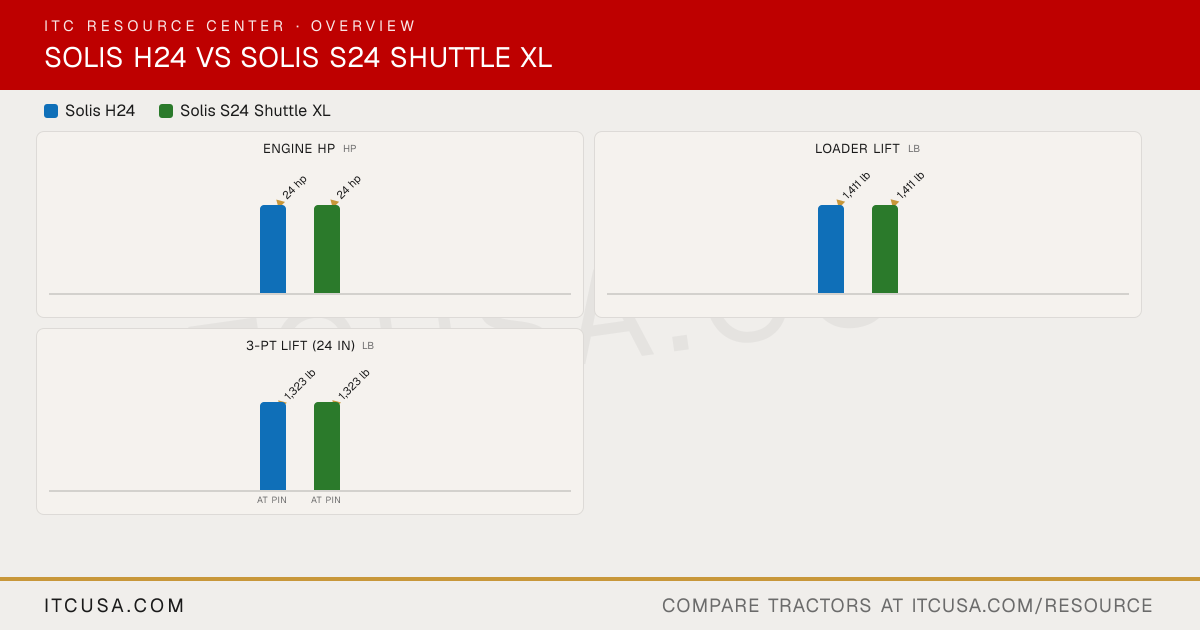

The headline numbers at a glance.

Solis H24Solis S24 Shuttle XL

Engine HPhp

▲24 hp

PTO HPhp

n/a

Weightlb

▲2,513 lb

Loader Liftlb

▲1,500 lb

926 lb

1,411 lb

HLN24HBLN24HB24

3-Pt Lift (24 in)lb

▲1,323 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	SolisH24	SolisS24 Shuttle XL


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.42 in³	80.42 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	Not Published	Not Published
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Single, open center	Not Published
Implement Flow	Not Published	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	3.98 gpm	6.5 gpm
Overall Hydraulic Pump Flow	3.98 gpm	Not Published
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	7 gal	5.8 gal
Coolant Capacity	1.1 gal	Not Published
Crankcase Capacity	1.11 gal	Not Published
Transmission / Hydraulic System Capacity	6.6 gal	Not Published
Front Axle Fluid Capacity	0.71 gal	Not Published

PTO Type	independent	Mechanical
PTO Rear	540 rpm at 2451 engine rpm	540/540E rpm
Mid-PTO Availability	Yes, 2100 rpm at 2438 engine rpm	Not Published
Category, 3-Point Hitch	Category I (CAT-1N)	Category I (CAT-1N)
Hitch Lift Capacity	1,323 lb	1,323 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Not Published	Not Published

Transmission Type	Hydrostatic (HST), 2 range	Constant mesh with synchromesh shuttle transmission
No. of Speeds	HST with 2 range speeds	9 forward, 9 reverse
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Without clutch (hydrostatic drive)	Not Published
Differential Lock & Limited Slip Options	Differential lock standard	Differential lock standard

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Oil immersed brakes, mechanical foot operated	Oil immersed brakes, mechanical foot operated
Seat Suspension & Adjustability	Standard seat with armrest	Not Published
Front Axle Type	Four wheel drive (4WD), mechanical engagement	Four wheel drive (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	47.83 in	47.83 in
Wheelbase	61.8 in	61.8 in
Ground Clearance	9.44 in (front axle)	9.44 in (front axle)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.53 in	91.53 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	113.98 in (with 3-point hitch)	113.98 in

Tractor Weight (Base)	2,513 lb	2,513 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Industrial: 23x8.50-12 & 33x15.5-16.5; Turf 1: 23x8.50-12 & 33x15.5-16.5; Turf 2: 25x8.50-14 & 13.6x16; Agri 1: 6x12 & 8.3x20; Agri 2: 7x14 & 8.3x24; Radial Agri: 6.5/80-12 & 280/70R18; Galaxy Pro: 220/55 R12 & 280/70 R16; R14: 25x8.50-14 & 14-17.5	Industrial: 23x8.50-12 & 33x15.5-16.5; Turf 1: 23x8.50-12 & 33x15.5-16.5; Turf 2: 25x8.50-14 & 13.6x16; Agri 1: 6x12 & 8.3x20; Agri 2: 7x14 & 8.3x24; Radial Agri: 6.5/80-12 & 280/70 R18; Galaxy Pro: 220/55 R12 & 280/70 R16
R1 Agricultural - Front	6x12; 7x14; 6.5/80-12	6x12; 7x14; 6.5/80-12
R1 Agricultural - Rear	8.3x20; 8.3x24; 280/70R18	8.3x20; 8.3x24; 280/70R18
R3 Turf - Front	23x8.50-12; 25x8.50-14	23x8.50-12; 25x8.50-14
R3 Turf - Rear	33x15.5-16.5; 13.6x16	33x15.5-16.5; 13.6x16
R4 Industrial - Front	23x8.50-12	23x8.50-12
R4 Industrial - Rear	33x15.5-16.5	33x15.5-16.5

Quick Attach Loader System	Skid steer quick attach	Skid steer quick attach
Loader Model	HLN24 (NSL); HBLN24 (NSL); HB24 (MSL)	XB24 (MSL)
Loader Lift Height	HLN24: 82 in; HBLN24: 85 in; HB24: 85 in	XB24: 85 in (at pivot pin)
Loader Lift Capacity (Full Height)	HLN24: 1,500 lb; HBLN24: 926 lb; HB24: 1,411 lb	XB24: 1,411 lb (at pivot pin)
Loader Breakout Force	HLN24: 1,565 lb; HBLN24: 1,058 lb; HB24: 1,146 lb	XB24: 1,146 lb (at pivot pin, dig position)

Warranty Length & Coverage	3 year full machine warranty; 7 year powertrain warranty	3 year full machine warranty; 7 year powertrain warranty
