Which has more horsepower, the Solis H24 cabin or the Solis S24 Shuttle XL?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more loader lift capacity, the Solis H24 cabin or the Solis S24 Shuttle XL?

The Solis S24 Shuttle XL leads on loader lift at 1,411 lb lb, compared to 926 lb lb for the Solis H24 cabin.

Which has more three-point hitch lift capacity, the Solis H24 cabin or the Solis S24 Shuttle XL?

They are effectively tied: both machines are rated at 1,323 lb lb for 3-pt lift (24 in).

Solis H24 cabin vs Solis S24 Shuttle XL

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Solis S24 Shuttle XL leads 2 categories to 1 (3 tied). Machine pages: Solis H24 cabin and Solis S24 Shuttle XL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Solis H24 cabin	Solis S24 Shuttle XL
Engine HP (hp)	24 hp	24 hp
Loader Lift (lb)	926 lb	▲ 1,411 lb
3-Pt Lift (24 in) (lb)	1,323 lb	1,323 lb
Lift Height (in)	85 in	85 in
Breakout Force (lbf)	▲ 1,565 lbf	1,146 lbf
Hydraulic Flow (gpm)	3 gpm	▲ 6.5 gpm

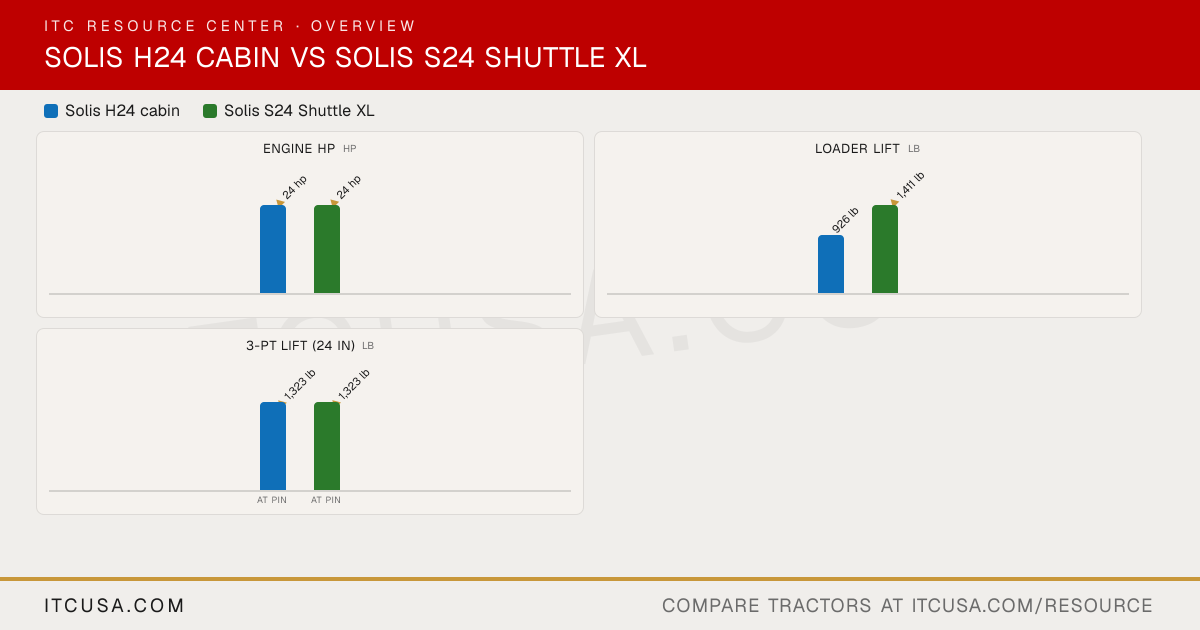

The headline numbers at a glance.

Solis H24 cabinSolis S24 Shuttle XL

Engine HPhp

▲24 hp

PTO HPhp

—

Weightlb

—

Loader Liftlb

926 lb

▲1,411 lb

3-Pt Lift (24 in)lb

▲1,323 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	SolisH24 cabin	SolisS24 Shuttle XL


PTO Power	Not Published	Not Published
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, Natural Aspiration	Natural Aspiration
Fuel System	Indirect Injection	Not Published
Displacement	80.42 ci	80.4 in³
Engine Model	Mitsubishi S3L2	—
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	2500 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Power (Gross)	24 hp	24 hp
Engine Emissions Constraints	Not Published	Not Published

Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	3-year warranty; 7-year limited powertrain	3-year warranty; 7-year limited powertrain

Pump Type	Not Published	Not Published
Steering Flow	Not Published	Not Published
Implement Flow	3.98 gpm 15.1 lpm	Not Published
Total Hydraulic Flow	3 gpm	6.5 gpm
Hydraulic System Type	open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	1	1

PTO Rear	540 RPM at 2451 RPM	540/540E rpm
PTO Type	Independent	Mechanical
Lift Control Type	NOT FOUND	Not Published
Hitch Lift Capacity	1323 lbs	1,323 lb
Mid-PTO Availability	Yes - 2100 RPM at 2438 RPM	Not Published
Category, 3-Point Hitch	Category I	CAT-1N
Hitch Lift Capacity (at 24”)	Not Published	Not Published

R3 Turf - Rear	33x15.5-16.5; 13.6x16	33x15.5-16.5; 13.6x16
R3 Turf - Front	23x8.50-12; 25x8.50-14	23x8.50-12; 25x8.50-14
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	33x15.5-16.5	33x15.5-16.5
R4 Industrial - Front	23x8.50-12	23x8.50-12
R1 Agricultural - Rear	8.3-20	8.3x20; 8.3x24; 280/70 R18
R1 Agricultural - Front	6-12	6x12; 7x14; 6.5/80-12

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	7 gal	5.8 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	HLN24: 82 in; HB24: 85 in	85 in
Loader Breakout Force	HLN24: 1,565 lb; HB24: 1,146 lb	1,146 lb
Quick Attach Loader System	HLN24 (NSL), HB24 (MSL)	XB24 (MSL)
Loader Lift Capacity (Full Height)	926 lbs	1,411 lb

Clutch	Not Published	Not Published
No. of Speeds	2 Range	9F+9R
Transmission Type	HST (2 Range), Constant Mesh	Constant Mesh with Synchromesh Shuttle transmission
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Standard	NOT FOUND — differential lock existence confirmed by user reviews but no spec-sheet value (type, actuation method) explicitly tied to S24 Shuttle XL in any reviewed source

Brakes	Mechanical wet disc brakes	Oil immersed brakes; mechanical, foot operated
Steering	Power steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	4WD	4WD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	61.8 inches	61.8 in
Overall Width	47 in	47.83 in
Ground Clearance	9.44 inches (Front Axle)	9.44 in
Height to Top of ROPS	Not Applicable	91.53 in
Height to Top of Cab Model	93 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	113.98 inches	113.98 in

Solis H24 cabin vs Solis S24 Shuttle XL: Quick Answers

Which has more horsepower, the Solis H24 cabin or the Solis S24 Shuttle XL?: They are effectively tied: both machines are rated at 24 hp hp for engine hp.
Which has more loader lift capacity, the Solis H24 cabin or the Solis S24 Shuttle XL?: The Solis S24 Shuttle XL leads on loader lift at 1,411 lb lb, compared to 926 lb lb for the Solis H24 cabin.
Which has more three-point hitch lift capacity, the Solis H24 cabin or the Solis S24 Shuttle XL?: They are effectively tied: both machines are rated at 1,323 lb lb for 3-pt lift (24 in).
