Across 9 measurable specs, the TYM 3515 leads 9 categories to 0. Machine pages: TYM 3515 and TYM T234 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

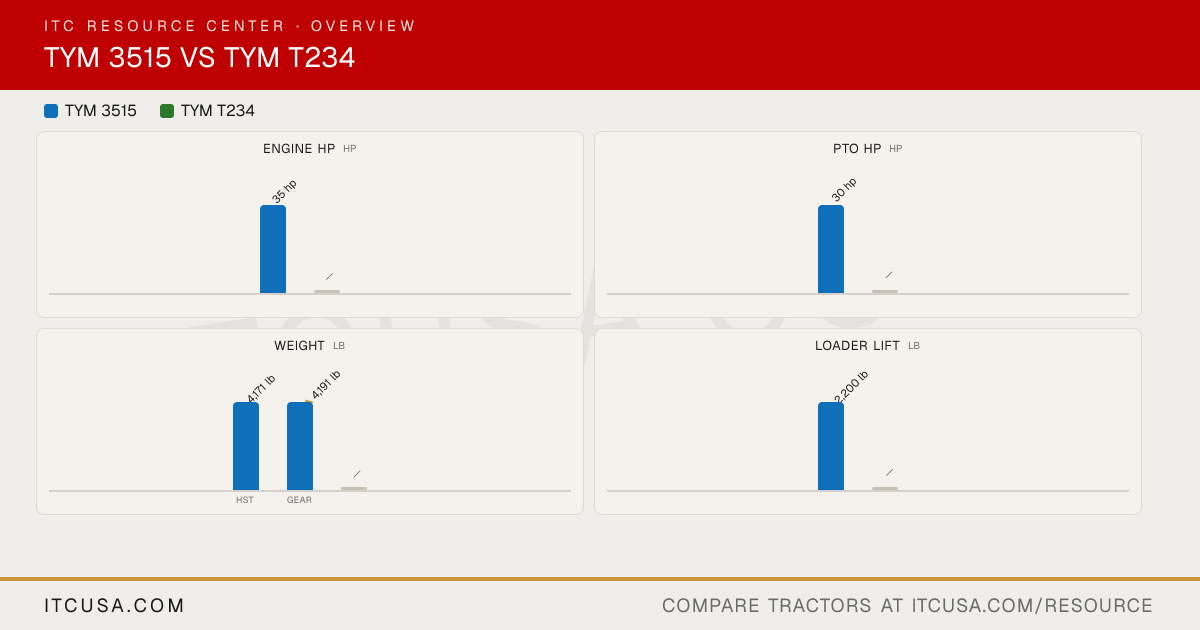

Category Verdict Spec TYM 3515 TYM T234 Engine HP (hp) ▲ 35 hp24.4 hp PTO HP (hp) ▲ 30 hp18.3 hp Weight (lb) ▲ 3,183 lb1,907 lb Loader Lift (lb) ▲ 2,200 lb1,380 lb 3-Pt Lift (24 in) (lb) ▲ 2,425 lb1,102 lb Lift Height (in) ▲ 104.9 in86.9 in Breakout Force (lbf) ▲ 3,422 lbf2,059 lbf Hydraulic Flow (gpm) ▲ 11.9 gpm6.7 gpm Travel Speed (mph) ▲ 18.8 mph9.6 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
TYM 3515 TYM T234
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Weight lb
▲ 3,183 lb
3,163 lb
1,907 lb
3515R 3515H
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
▶ EngineEngine Manufacturer TYM Mitsubishi Engine Model T1700N2 S3L2 Engine Type 3-cylinder, naturally aspirated diesel 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 104.5 in³ 80.4 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 35 hp 24.4 hp PTO Power 30 hp 18.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Dry element Dual dry Fuel System IDI (indirect injection) Indirect fuel injection Alternator 50 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Dual gear pump Dual gear pump Implement Flow 7.7 gpm 4.4 gpm Steering Flow 4.2 gpm 2.3 gpm Total Hydraulic Flow 11.9 gpm 6.7 gpm Overall Hydraulic Pump Flow 11.9 gpm 6.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Loader: 2 / Rear: 0 Not Published No. of Optional Remote Valves Up to 4 1 ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 6.6 gal Coolant Capacity 5.3 qt 5.9 qt Crankcase Capacity 4.5 qt 4.5 qt Transmission / Hydraulic System Capacity 3515R: 9 gal; 3515H: 9.8 gal 4.5 gal Front Axle Fluid Capacity 6.8 qt 4.7 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Available Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,306 lb 1,534 lb Hitch Lift Capacity (at 24”) 2,425 lb 1,102 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type 3515R: Synchromesh; 3515H: HST HST No. of Speeds 3515R: F12 x R12; 3515H: 3-Range Infinite / 2 Range Max Travel Speed (Forward) 3515R: 14.4 mph; 3515H: 18.8 mph 9.6 mph Max Travel Speed (Reverse) 3515R: 14.3 mph; 3515H: 18.7 mph Not Published Clutch 3515R: Dry single plate; 3515H: None (HST) Not Published Differential Lock & Limited Slip Options Differential lock (standard) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Wet, multi-disc Wet disc Seat Suspension & Adjustability Suspension seat Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.9 in 107.8 in Overall Width 56.3 in 52.8 in Wheelbase 65.7 in 58.3 in Ground Clearance 14.4 in 7.71 in Min. Turn Radius without Brakes L: 124.8 in; R: 121.3 in 105.5 in Height to Top of ROPS 97.3 in 89.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 3515R: 3,183 lb; 3515H: 3,163 lb 1,907 lb Weight with ROPS and Loader HST: 4,171 lb; Gear: 4,191 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24; optional R1 8.0-16 / 12.4-24 and R4 25x8.50-14 / 15x19.5 R4 Industrial R1 Agricultural - Front 8-16 Not Published R1 Agricultural - Rear 12.4-24 Not Published R3 Turf - Front 27x8.5-15, 6PR Not Published R3 Turf - Rear 41x14.00, 4PR Not Published R4 Industrial - Front 10-16.5, 6PR 23x8.5-12 R4 Industrial - Rear 420/70-24, 6PR 12x16.5 ▶ Loader & AttachmentsQuick Attach Loader System BL150: Quick attach assembly (lever-lock) TX2000: Quick attach mechanism Loader Model BL150 TX2000 Loader Lift Height BL150: 104.9 in TX2000: 86.9 in Loader Lift Capacity (Full Height) BL150: 2,200 lb TX2000: 1,380 lb Loader Breakout Force BL150: 3,422 lb TX2000: 2,059 lb ▶ WarrantyWarranty Length & Coverage 24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
TYM 3515 vs TYM T234: Quick Answers
Which has more horsepower, the TYM 3515 or the TYM T234? The TYM 3515 leads on engine hp at 35 hp hp, compared to 24.4 hp hp for the TYM T234.
Which has more PTO horsepower, the TYM 3515 or the TYM T234? The TYM 3515 leads on pto hp at 30 hp hp, compared to 18.3 hp hp for the TYM T234.
Which is heavier, the TYM 3515 or the TYM T234? The TYM 3515 leads on weight at 3,183 lb lb, compared to 1,907 lb lb for the TYM T234.
Which has more loader lift capacity, the TYM 3515 or the TYM T234? The TYM 3515 leads on loader lift at 2,200 lb lb, compared to 1,380 lb lb for the TYM T234.
Which has more three-point hitch lift capacity, the TYM 3515 or the TYM T234? The TYM 3515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,102 lb lb for the TYM T234. More Head-to-Heads
