Across 9 measurable specs, the TYM 3515C leads 9 categories to 0. Machine pages: TYM 3515C and TYM T234 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

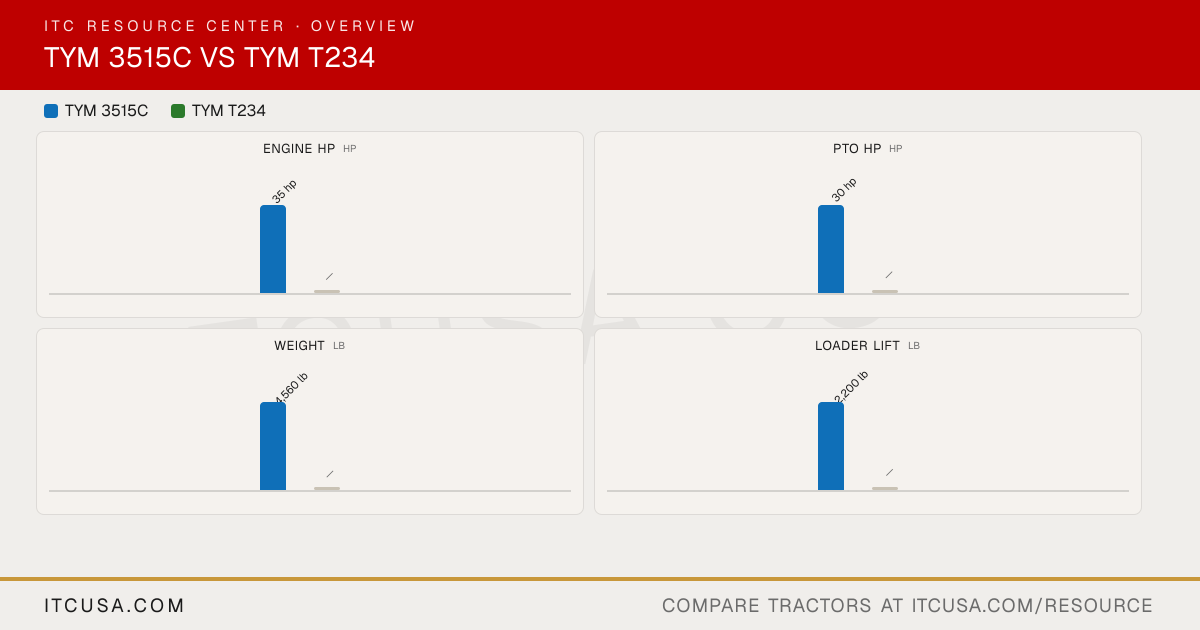

Category Verdict Spec TYM 3515C TYM T234 Engine HP (hp) ▲ 35 hp24.4 hp PTO HP (hp) ▲ 30 hp18.3 hp Weight (lb) ▲ 3,552 lb1,907 lb Loader Lift (lb) ▲ 2,200 lb1,380 lb 3-Pt Lift (24 in) (lb) ▲ 2,425 lb1,102 lb Lift Height (in) ▲ 104.9 in86.9 in Breakout Force (lbf) ▲ 3,422 lbf2,059 lbf Hydraulic Flow (gpm) ▲ 11.9 gpm6.7 gpm Travel Speed (mph) ▲ 18 mph9.6 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
TYM 3515C TYM T234
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
▶ EngineEngine Manufacturer TYM Mitsubishi Engine Model T1700N2 S3L2 Engine Type 3-cylinder, naturally aspirated diesel 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 104.5 in³ 80.4 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 35 hp 24.4 hp PTO Power 30 hp 18.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Dry element Dual dry Fuel System IDI (indirect injection) Indirect fuel injection Alternator 70 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Dual gear pump Dual gear pump Implement Flow 7.7 gpm 4.4 gpm Steering Flow 4.2 gpm 2.3 gpm Total Hydraulic Flow 11.9 gpm 6.7 gpm Overall Hydraulic Pump Flow 11.9 gpm 6.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Loader: 4 / Rear: 0 Not Published No. of Optional Remote Valves Up to 4 1 ▶ Fluid CapacityFuel Tank Capacity 7.1 gal 6.6 gal Coolant Capacity 5.3 qt 5.9 qt Crankcase Capacity 4.5 qt 4.5 qt Transmission / Hydraulic System Capacity 9.8 gal 4.5 gal Front Axle Fluid Capacity 6.8 qt 4.7 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Available Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,306 lb 1,534 lb Hitch Lift Capacity (at 24”) 2,425 lb 1,102 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type HST HST No. of Speeds 3-Range Infinite / 2 Range Max Travel Speed (Forward) 18 mph 9.6 mph Max Travel Speed (Reverse) 17.95 mph Not Published Clutch None (HST) Not Published Differential Lock & Limited Slip Options Differential lock (standard) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Wet, multi-disc Wet disc Seat Suspension & Adjustability Suspension seat Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.9 in 107.8 in Overall Width 55.6 in 52.8 in Wheelbase 65.7 in 58.3 in Ground Clearance 12.9 in 7.71 in Min. Turn Radius without Brakes L: 124.8 in; R: 121.3 in 105.5 in Height to Top of ROPS Not Published 89.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 88.0 in Not Published ▶ WeightTractor Weight (Base) 3,552 lb 1,907 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader 4,560 lb Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural 7-16 / 11.2-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 25x8.5-14 / 380/70-19.5 R4 Industrial R1 Agricultural - Front 7-16 Not Published R1 Agricultural - Rear 11.2-24 Not Published R3 Turf - Front 27x8.5-15, 6PR Not Published R3 Turf - Rear 41x14.00, 4PR Not Published R4 Industrial - Front 25x8.5-14, 6PR 23x8.5-12 R4 Industrial - Rear 380/70-19.5, 6PR 12x16.5 ▶ Loader & AttachmentsQuick Attach Loader System BL150C: Quick attachment assembly TX2000: Quick attach mechanism Loader Model BL150C TX2000 Loader Lift Height BL150C: 104.9 in TX2000: 86.9 in Loader Lift Capacity (Full Height) BL150C: 2,200 lb TX2000: 1,380 lb Loader Breakout Force BL150C: 3,422 lb TX2000: 2,059 lb ▶ WarrantyWarranty Length & Coverage 24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
TYM 3515C vs TYM T234: Quick Answers
Which has more horsepower, the TYM 3515C or the TYM T234? The TYM 3515C leads on engine hp at 35 hp hp, compared to 24.4 hp hp for the TYM T234.
Which has more PTO horsepower, the TYM 3515C or the TYM T234? The TYM 3515C leads on pto hp at 30 hp hp, compared to 18.3 hp hp for the TYM T234.
Which is heavier, the TYM 3515C or the TYM T234? The TYM 3515C leads on weight at 3,552 lb lb, compared to 1,907 lb lb for the TYM T234.
Which has more loader lift capacity, the TYM 3515C or the TYM T234? The TYM 3515C leads on loader lift at 2,200 lb lb, compared to 1,380 lb lb for the TYM T234.
Which has more three-point hitch lift capacity, the TYM 3515C or the TYM T234? The TYM 3515C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,102 lb lb for the TYM T234. More Head-to-Heads
