Which has more horsepower, the TYM T25 or the TYM T254?

The TYM T25 leads on engine hp at 24.7 hp hp, compared to 23.9 hp hp for the TYM T254.

Which has more PTO horsepower, the TYM T25 or the TYM T254?

The TYM T254 leads on pto hp at 18.8 hp hp, compared to 18.3 hp hp for the TYM T25.

Which has more loader lift capacity, the TYM T25 or the TYM T254?

The TYM T25 leads on loader lift at 1,380 lb lb, compared to 948 lb lb for the TYM T254.

Which has more three-point hitch lift capacity, the TYM T25 or the TYM T254?

The TYM T25 leads on 3-pt lift (24 in) at 1,229.7 lb lb, compared to 1,101 lb lb for the TYM T254.

TYM T25 vs TYM T254

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM T25 leads 6 categories to 1 (1 tied). Machine pages: TYM T25 and TYM T254.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM T25	TYM T254
Engine HP (hp)	▲ 24.7 hp	23.9 hp
PTO HP (hp)	18.3 hp	▲ 18.8 hp
Weight (lb)	2,726 lb	—
Loader Lift (lb)	▲ 1,380 lb	948 lb
3-Pt Lift (24 in) (lb)	▲ 1,229.7 lb	1,101 lb
Lift Height (in)	▲ 87.2 in	75 in
Breakout Force (lbf)	▲ 2,059 lbf	1,680 lbf
Hydraulic Flow (gpm)	6.9 gpm	6.9 gpm
Travel Speed (mph)	▲ 13.7 mph	11 mph

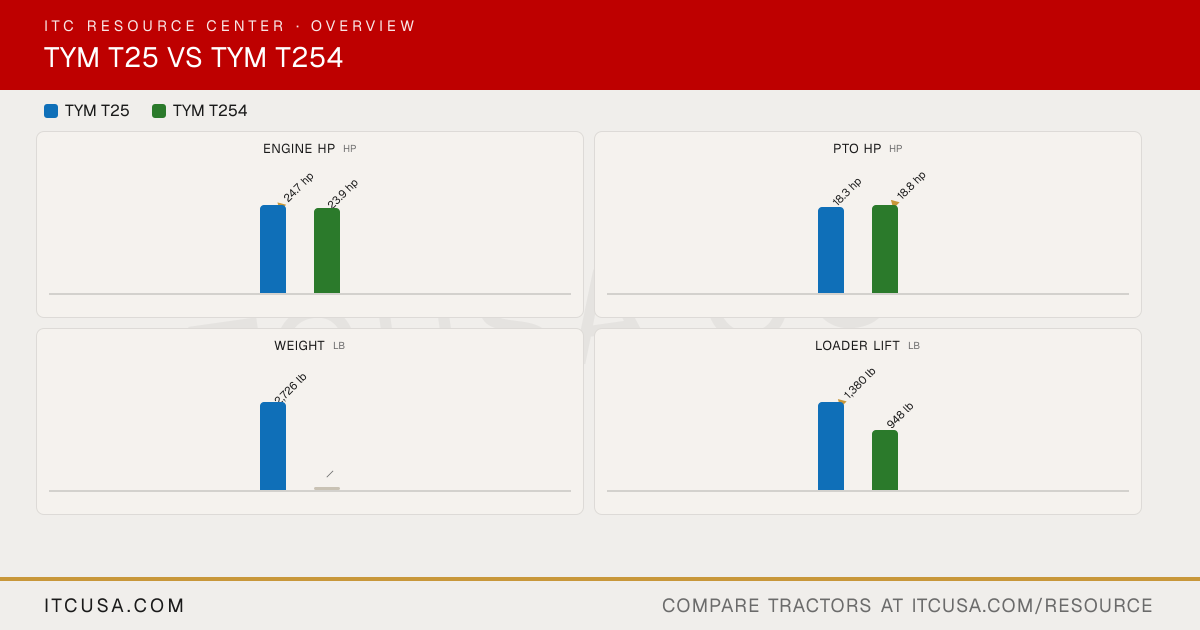

The headline numbers at a glance.

TYM T25TYM T254

Engine HPhp

▲24.7 hp

23.9 hp

PTO HPhp

18.3 hp

▲18.8 hp

Weightlb

2,726 lb

—

Loader Liftlb

▲1,380 lb

948 lb

3-Pt Lift (24 in)lb

▲1,229.7 lb

1,101 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT25	TYMT254


PTO Power	18.3 hp	18.8 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Single dry	Single dry
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	IDI	IDI
Displacement	77.3 in³	77.3 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3000 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	Yanmar 3TNV80F	Yanmar
Engine Power (Gross)	24.7 hp	23.9 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	2,726 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Single gear pump	Single gear pump
Steering Flow	2.8 gpm	2.8 gpm
Implement Flow	4.2 gpm	4.2 gpm
Total Hydraulic Flow	6.9 gpm	6.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.9 gpm	6.9 gpm
No. of Optional Remote Valves	Not Published	1
No. of Standard Remote Valves	1	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,551.2 lb	1,214 lb
Mid-PTO Availability	Available (Mid-PTO kit)	Available
Category, 3-Point Hitch	Category I	Category I (Narrow)
Hitch Lift Capacity (at 24”)	1,229.7 lb	1,101 lb

R3 Turf - Rear	Multi-Trac CS 33x12.50-16.5 NHS TL 4PR	29x12.50-15
R3 Turf - Front	Turf Master 23x8.50-12 NHS TL 4PR	20x8.00-10
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional)
R4 Industrial - Rear	36x12.5-15; Trac Chief 14-17.5 NHS TL 6PR	27x12.5-15; 12-16.5
R4 Industrial - Front	Trac Chief 23x8.50-14 NHS TL 4PR	20x8.00-10; 23x8.50-12
R1 Agricultural - Rear	9.5-20 6PR	9.5-16
R1 Agricultural - Front	6-12 4PR	6.0-12

Coolant Capacity	3.8 qt	3.8 qt
Crankcase Capacity	2.9 qt	2.9 qt
Fuel Tank Capacity	6.6 gal	5.8 gal
Front Axle Fluid Capacity	4.7 qt	3.7 qt
Transmission / Hydraulic System Capacity	4.5 gal	3.7 gal

Loader Lift Height	87.2 in	75 in
Loader Breakout Force	2,059 lb	1,680 lb
Quick Attach Loader System	TL25: Quick attachment assembly	TX25P: Quick attach mechanism
Loader Lift Capacity (Full Height)	1,380 lb	948 lb

Clutch	Not Applicable	Not applicable
No. of Speeds	Infinite 2-Range	Infinite 2-Range
Transmission Type	HST	HST
Max Travel Speed (Forward)	13.7 mph	11.0 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock

Brakes	Wet disc	Wet disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heavy duty mechanical suspension; manual weight adjustment	Ergonomic seating

Wheelbase	61 in	57.5 in
Overall Width	50 in	45.8 in
Ground Clearance	10.2 in	9.4 in
Height to Top of ROPS	91.3 in	91.3 in
Height to Top of Cab Model	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	111.8 in	100 in
Overall Length with 3-Point Hitch	102.8 in	100.5 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T264 / T25 Tractor Step $145.00 Rural King RK25 Hydraulic Valve Cover $124.99 TYM T25 Rural King RK25 Brush Guard Insert $249.99	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection RK24/T254 /BRANSON 2505/EMAX 25 Skid Plate $89.99

TYM T25 vs TYM T254: Quick Answers

Which has more horsepower, the TYM T25 or the TYM T254?: The TYM T25 leads on engine hp at 24.7 hp hp, compared to 23.9 hp hp for the TYM T254.
Which has more PTO horsepower, the TYM T25 or the TYM T254?: The TYM T254 leads on pto hp at 18.8 hp hp, compared to 18.3 hp hp for the TYM T25.
Which has more loader lift capacity, the TYM T25 or the TYM T254?: The TYM T25 leads on loader lift at 1,380 lb lb, compared to 948 lb lb for the TYM T254.
Which has more three-point hitch lift capacity, the TYM T25 or the TYM T254?: The TYM T25 leads on 3-pt lift (24 in) at 1,229.7 lb lb, compared to 1,101 lb lb for the TYM T254.
