TYM T3025 vs TYM T3025C

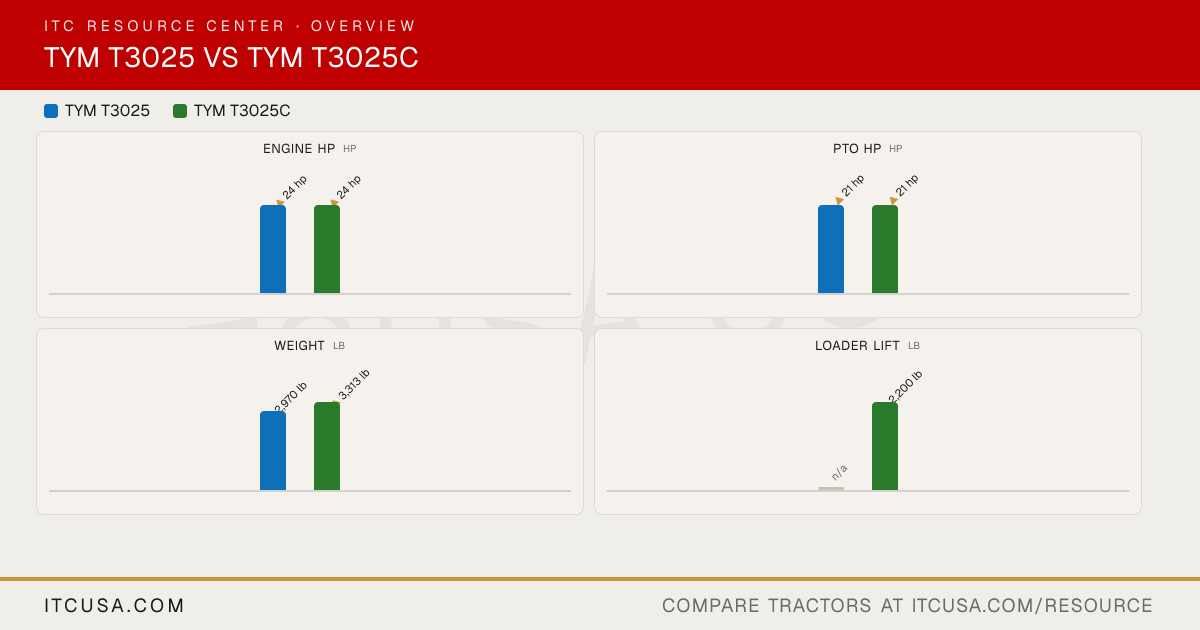

Across 6 measurable specs, the TYM T3025C leads 2 categories to 1 (3 tied). Machine pages: TYM T3025 and TYM T3025C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYMT3025	TYMT3025C

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	T1700N6	T1700N6
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	104.5 in³	104.5 in³
Rated Engine Speed	2100 rpm	2100 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	21 hp	21 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Not Published
Air Cleaner	Dry element	Dry element
Fuel System	IDI (indirect injection)	IDI (indirect injection)
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Dual gear pump	Dual gear pump
Implement Flow	7.5 gpm	7.7 gpm
Steering Flow	4.0 gpm	4.2 gpm
Total Hydraulic Flow	11.5 gpm	11.9 gpm
Overall Hydraulic Pump Flow	11.5 gpm	11.9 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Loader: 4 / Rear: 0	Loader: 4 / Rear: 0
No. of Optional Remote Valves	Up to 4	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	8.7 gal	7.1 gal
Coolant Capacity	5.3 qt	5.3 qt
Crankcase Capacity	4.5 qt	4.5 qt
Transmission / Hydraulic System Capacity	T3025R: 8.9 gal; T3025H: 9.8 gal	9.8 gal
Front Axle Fluid Capacity	6.8 qt	6.8 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	3,306 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	T3025R: Synchromesh; T3025H: HST	HST
No. of Speeds	T3025R: F12 x R12; T3025H: 3-Range	3-Range
Max Travel Speed (Forward)	T3025R: 11.7 mph; T3025H: 16.7 mph	14.6 mph
Max Travel Speed (Reverse)	Not Published	14.6 mph
Clutch	T3025R: Dry single plate; T3025H: N/A	None (HST)
Differential Lock & Limited Slip Options	Not Published	Differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Suspension seat	Suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	56.3 in	56.6 in
Wheelbase	65.7 in	65.7 in
Ground Clearance	14.4 in	13.1 in
Min. Turn Radius without Brakes	105.5 in	L: 105.51 in; R: 104.72 in
Height to Top of ROPS	97.2 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	89.3 in
Overall Length	121 in (with 3-point hitch)	120.9 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	2,970 lb (with ROPS)	3,313 lb (with cab)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 / 41x14.00; R4 Industrial 10-16.5 / 420/70-24	R1 Agricultural 7-16 / 11.2-24; Golf (turf) tires 27x8.5-15 / 41x14.00; R4 Industrial 25x8.5-14 / 380/70-19.5
R1 Agricultural - Front	8-16	7-16, 6PR
R1 Agricultural - Rear	12.4-24	11.2-24, 8PR
R3 Turf - Front	27x8.5-15	27x8.5-15, 6PR (golf tire)
R3 Turf - Rear	41x14.00	41x14.00, 4PR (golf tire)
R4 Industrial - Front	10-16.5	25x8.5-14, 6PR
R4 Industrial - Rear	420/70-24	380/70-19.5, 6PR
▶Loader & Attachments
Quick Attach Loader System	Not Published	Not Published
Loader Model	Not Published	L3035
Loader Lift Height	Not Published	L3035: 104.9 in
Loader Lift Capacity (Full Height)	Not Published	L3035: 2,200 lb (at pivot pin)
Loader Breakout Force	Not Published	L3035: 3,422 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Find a TYM dealer near you→

TYM T3025 vs TYM T3025C: Quick Answers

Which has more horsepower, the TYM T3025 or the TYM T3025C?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more PTO horsepower, the TYM T3025 or the TYM T3025C?

They are effectively tied: both machines are rated at 21 hp hp for pto hp.

Which is heavier, the TYM T3025 or the TYM T3025C?

The TYM T3025C leads on weight at 3,313 lb lb, compared to 2,970 lb lb for the TYM T3025.

Which has more three-point hitch lift capacity, the TYM T3025 or the TYM T3025C?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
