Bad Boy Tractors 3026 vs Case IH Farmall 35A Mechanical

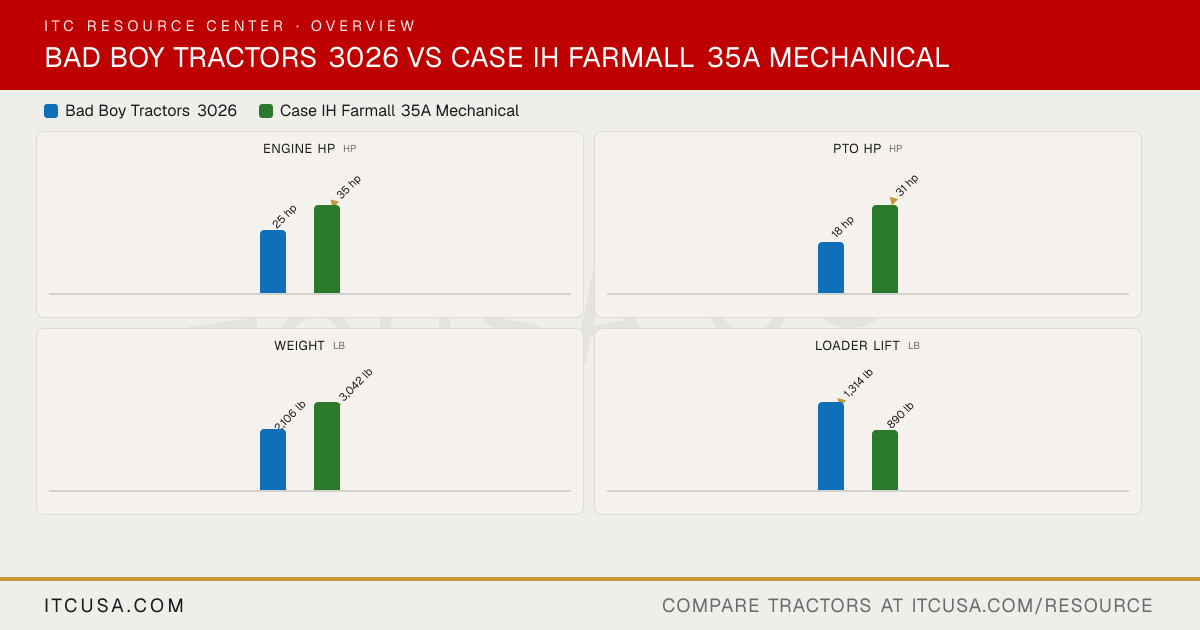

Across 9 measurable specs, the Case IH Farmall 35A Mechanical leads 6 categories to 3. Machine pages: Bad Boy Tractors 3026 and Case IH Farmall 35A Mechanical.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	Case IHFarmall 35A Mechanical

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1100N2	Not Published
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	3-cylinder, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	71.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	18 hp	31 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	8.4 gpm
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	7.4 gpm	13.3 gpm
Overall Hydraulic Pump Flow	7.7 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	3
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	12.6 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent, electro-hydraulic engagement
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	Not Published
Hitch Lift Capacity (at 24”)	974 lb	1,596 lb
Lift Control Type	Position control	Mechanical Draft Control (MDC)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	12x12 mechanical shuttle with synchro shift (dry clutch) (standard)
No. of Speeds	3 range (L/M/H)	12 forward, 12 reverse
Max Travel Speed (Forward)	14.8 mph	14.2 mph
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Dry clutch
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Not Published
Brakes	Wet disc	Not Published
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Adjustable suspension seat
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.8 in	66.5 in
Wheelbase	65.7 in	66.2 in
Ground Clearance	16.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	10.5 ft
Height to Top of ROPS	91.4 in	96.2 in
Height to Top of ROPS (folded)	Not Published	74.2 in
Height to Top of Cab Model	Not Published	Not Published
Overall Length	110 in	12.1 ft (with 3-point hitch)
▶Weight
Tractor Weight (Base)	2,106 lb	3,042 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	R1 Agricultural, R3 Turf, or R4 Industrial
R1 Agricultural - Front	7-16 6PR	7x14
R1 Agricultural - Rear	11.2-20	11.2x24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	14x17.5	43x16.00-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	L340A
Loader Lift Height	86 in	98 in
Loader Lift Capacity (Full Height)	1,314 lb	890 lb at 31.5 in forward of pivot pin
Loader Breakout Force	1,960 lbf	1,900 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years; powertrain 4 additional years (6-year total)
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a Case IH dealer near you→

Bad Boy Tractors 3026 vs Case IH Farmall 35A Mechanical: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Case IH Farmall 35A Mechanical?

The Case IH Farmall 35A Mechanical leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Case IH Farmall 35A Mechanical?

The Case IH Farmall 35A Mechanical leads on pto hp at 31 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Case IH Farmall 35A Mechanical?

The Case IH Farmall 35A Mechanical leads on weight at 3,042 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Case IH Farmall 35A Mechanical?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 890 lb lb for the Case IH Farmall 35A Mechanical.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Case IH Farmall 35A Mechanical?

The Case IH Farmall 35A Mechanical leads on 3-pt lift (24 in) at 1,596 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
