Bad Boy Tractors 4025 vs Case IH Farmall 35A Mechanical

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Bad Boy Tractors 4025, 4 to the Case IH Farmall 35A Mechanical. Machine pages: Bad Boy Tractors 4025 and Case IH Farmall 35A Mechanical.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

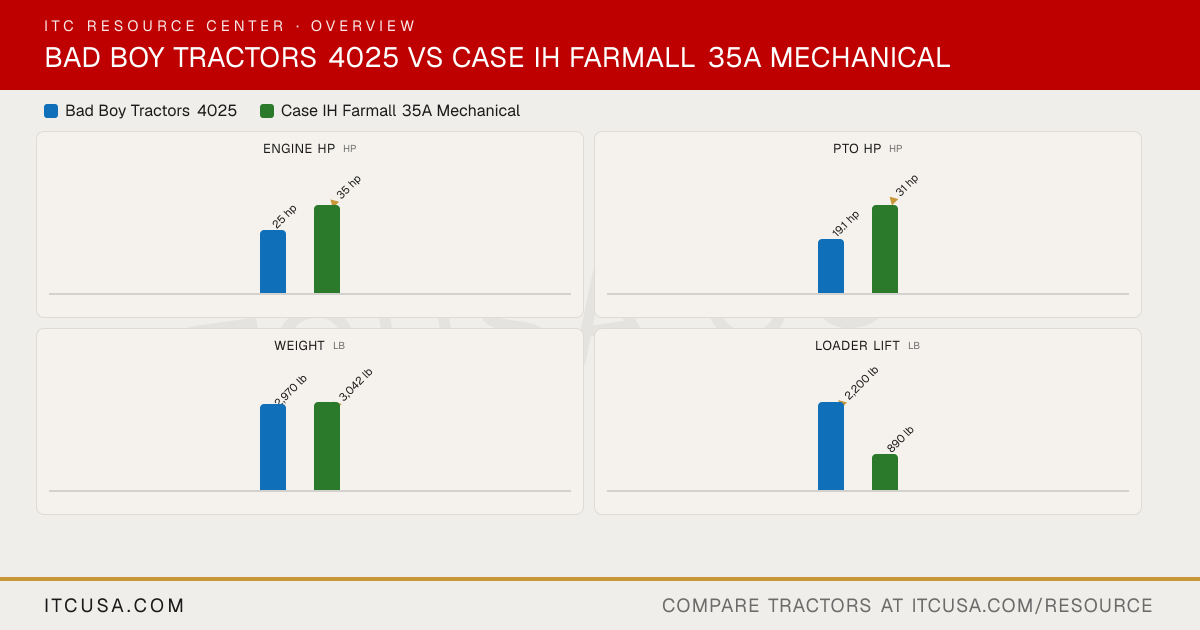

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	Case IHFarmall 35A Mechanical

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N6-BUTR_3	L3C19-T5
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, turbocharged diesel, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	104.7 in³	116 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	19.1 hp	29.7 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Pressurized liquid cooling with recirculating bypass
Air Cleaner	Dry	Not Published
Fuel System	Not Published	High pressure common rail
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Gear
Implement Flow	7.5 gpm	8.2 gpm
Steering Flow	4 gpm	4.2 gpm
Total Hydraulic Flow	11.5 gpm	12.4 gpm (8.2 + 4.2, computed)
Overall Hydraulic Pump Flow	11.5 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	2	1
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.4 gal
Coolant Capacity	1.32 gal	7.5 qt
Crankcase Capacity	1.14 gal	5.8 qt
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	8.5 gal
Front Axle Fluid Capacity	Not Published	6.9 qt
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Mechanical Draft Control (MDC)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	12x12 mechanical shuttle with synchro shift (dry clutch) (standard)
No. of Speeds	3 range (A/B/C)	12 forward, 12 reverse
Max Travel Speed (Forward)	Not Published	14.2 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Dry clutch
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Power steering
Brakes	Wet multi-disc	Wet disc, mechanical actuation
Seat Suspension & Adjustability	Not Published	Adjustable suspension seat
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	12.1 ft
Overall Width	56.7 in	66.5 in
Wheelbase	65.7 in	67.3 in
Ground Clearance	15 in	10.0 in
Min. Turn Radius without Brakes	Not Published	123 in
Height to Top of ROPS	96.85 in	93.5 in
Height to Top of ROPS (folded)	Not Published	68.2 in
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,970 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 / 15-19.5)	R1 agricultural, R3 turf, or R4 industrial (R4 standard)
R1 Agricultural - Front	8.0-16	7x14
R1 Agricultural - Rear	12.4-24	11.2x24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	15-19.5	43x16.00-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL400	L340A
Loader Lift Height	104 in	98.4 in
Loader Lift Capacity (Full Height)	2,200 lb	1,250 lb
Loader Breakout Force	3,660 lbf	1,913 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years; powertrain 4 additional years (6-year total)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Case IH dealer near you→

Bad Boy Tractors 4025 vs Case IH Farmall 35A Mechanical: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Case IH Farmall 35A Mechanical?

The Case IH Farmall 35A Mechanical leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Case IH Farmall 35A Mechanical?

The Case IH Farmall 35A Mechanical leads on pto hp at 29.7 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the Case IH Farmall 35A Mechanical?

The Case IH Farmall 35A Mechanical leads on weight at 3,067 lb lb, compared to 2,970 lb lb for the Bad Boy Tractors 4025.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Case IH Farmall 35A Mechanical?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,250 lb lb for the Case IH Farmall 35A Mechanical.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Case IH Farmall 35A Mechanical?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the Case IH Farmall 35A Mechanical.
