Bad Boy Tractors 4025 vs Kioti CK2620

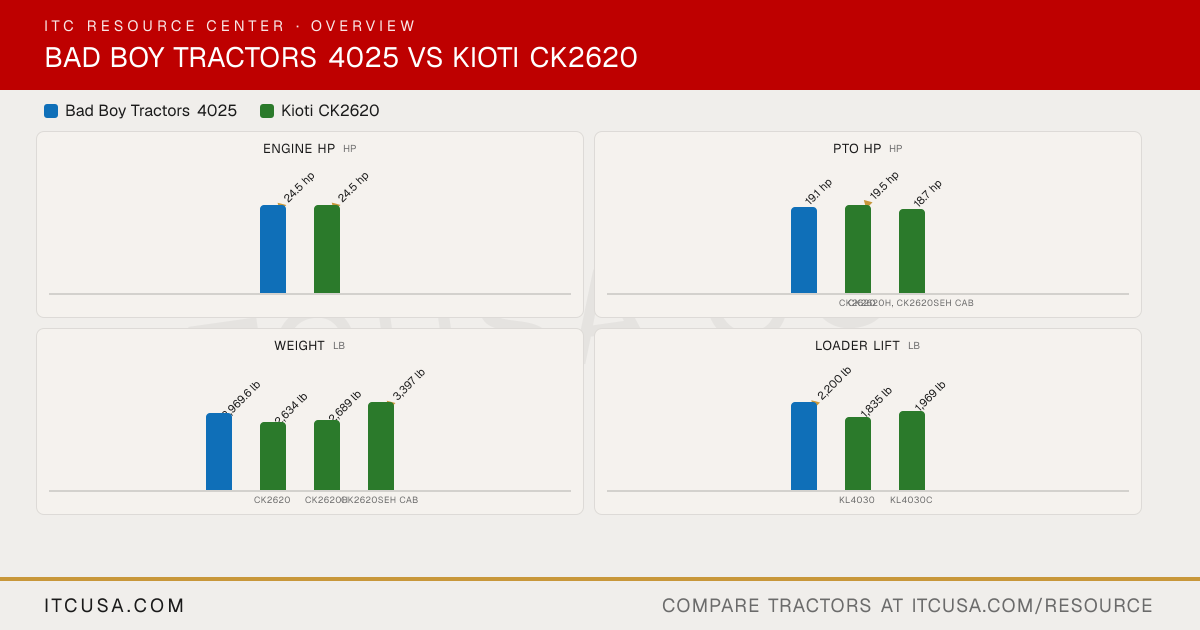

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 4 categories to 3 (1 tied). Machine pages: Bad Boy Tractors 4025 and Kioti CK2620.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	KiotiCK2620

▶Engine
Engine Manufacturer	TYM	KIOTI
Engine Model	A1700N6-BUTR_3	CK2620: 3A165LWM-U; CK2620H, CK2620SEH CAB: 3A165LWH-U
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, in-line, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	104.7 in³	100.5 in³
Rated Engine Speed	2100 rpm	2400 rpm
Engine Power (Gross)	24.5 hp	24.5 hp
PTO Power	19.1 hp	CK2620: 19.5 hp; CK2620H, CK2620SEH CAB: 18.7 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dry element
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Gear
Implement Flow	7.5 gpm	CK2620, CK2620H: 7.14 gpm; CK2620SEH CAB: 6.86 gpm
Steering Flow	4 gpm	CK2620, CK2620H: 4.59 gpm; CK2620SEH CAB: 4.46 gpm
Total Hydraulic Flow	11.5 gpm	CK2620, CK2620H: 11.73 gpm; CK2620SEH CAB: 11.33 gpm
Overall Hydraulic Pump Flow	11.5 gpm	CK2620, CK2620H: 11.73 gpm; CK2620SEH CAB: 11.33 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	CK2620, CK2620H: 0; CK2620SEH CAB: 2
No. of Optional Remote Valves	2	CK2620, CK2620H: 2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	9.0 gal
Coolant Capacity	1.32 gal	0.89 gal
Crankcase Capacity	1.14 gal	1.6 gal
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	5.8 gal
Front Axle Fluid Capacity	Not Published	1.6 gal
▶PTO & Hitch
PTO Type	Independent	CK2620, CK2620H: Live; CK2620SEH CAB: Independent
PTO Rear	533 rpm	540 rpm (1-3/8 in, 6 splines)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	2,270 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,631 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	CK2620: Manual; CK2620H, CK2620SEH CAB: Hydrostatic
No. of Speeds	3 range (A/B/C)	CK2620: 9F/3R; CK2620H, CK2620SEH CAB: Infinite, 3 range
Max Travel Speed (Forward)	Not Published	CK2620: 9.79 mph; CK2620H, CK2620SEH CAB: 10.01 mph
Max Travel Speed (Reverse)	Not Published	CK2620: 6.39 mph; CK2620H, CK2620SEH CAB: 7.01 mph
Clutch	None (HST)	CK2620: Dry dual stage; CK2620H: Dry single stage; CK2620SEH CAB: None (hydrostatic)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	4WD, manual engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	120.9 in
Overall Width	56.7 in	54.5 in
Wheelbase	65.7 in	65.7 in
Ground Clearance	15 in	13.4 in
Min. Turn Radius without Brakes	Not Published	107.5 in
Height to Top of ROPS	96.85 in	92.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	92.5 in
▶Weight
Tractor Weight (Base)	2,969.6 lb	CK2620: 2,634 lb; CK2620H: 2,689 lb; CK2620SEH CAB: 3,397 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)
R1 Agricultural - Front	8.0-16	7-16
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	28x8.5-15/6
R3 Turf - Rear	Not Published	41x14-20/4
R4 Industrial - Front	25x8.50-14	27x8.5-15
R4 Industrial - Rear	15-19.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL400	KL4030; KL4030C
Loader Lift Height	104 in	98.4 in (KL4030 and KL4030C loaders)
Loader Lift Capacity (Full Height)	2,200 lb	KL4030: 1,835 lb; KL4030C: 1,969 lb
Loader Breakout Force	3,660 lbf	KL4030: 3,464 lb; KL4030C: 2,989 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a Bad Boy dealer near you→Find a KIOTI dealer near you→

Bad Boy Tractors 4025 vs Kioti CK2620: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Kioti CK2620?

They are effectively tied: both machines are rated at 24.5 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Kioti CK2620?

The Kioti CK2620 leads on pto hp at 19.5 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the Kioti CK2620?

The Kioti CK2620 leads on weight at 3,397 lb lb, compared to 2,969.6 lb lb for the Bad Boy Tractors 4025.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Kioti CK2620?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,969 lb lb for the Kioti CK2620.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Kioti CK2620?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,631 lb lb for the Kioti CK2620.
