Across 8 measurable specs, the TYM T3035C leads 5 categories to 1 (2 tied). Machine pages: Bad Boy Tractors 4025 and TYM T3035C .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 4025 TYM T3035C Engine HP (hp) 25 hp ▲ 35 hpPTO HP (hp) 19.1 hp ▲ 30 hpWeight (lb) 2,970 lb ▲ 3,313 lbLoader Lift (lb) 2,200 lb 2,200 lb 3-Pt Lift (24 in) (lb) 2,425 lb 2,425 lb Lift Height (in) 104 in ▲ 104.9 inBreakout Force (lbf) ▲ 3,660 lbf3,422 lbf Hydraulic Flow (gpm) 11.5 gpm ▲ 11.9 gpmTravel Speed (mph) n/a 18 mph

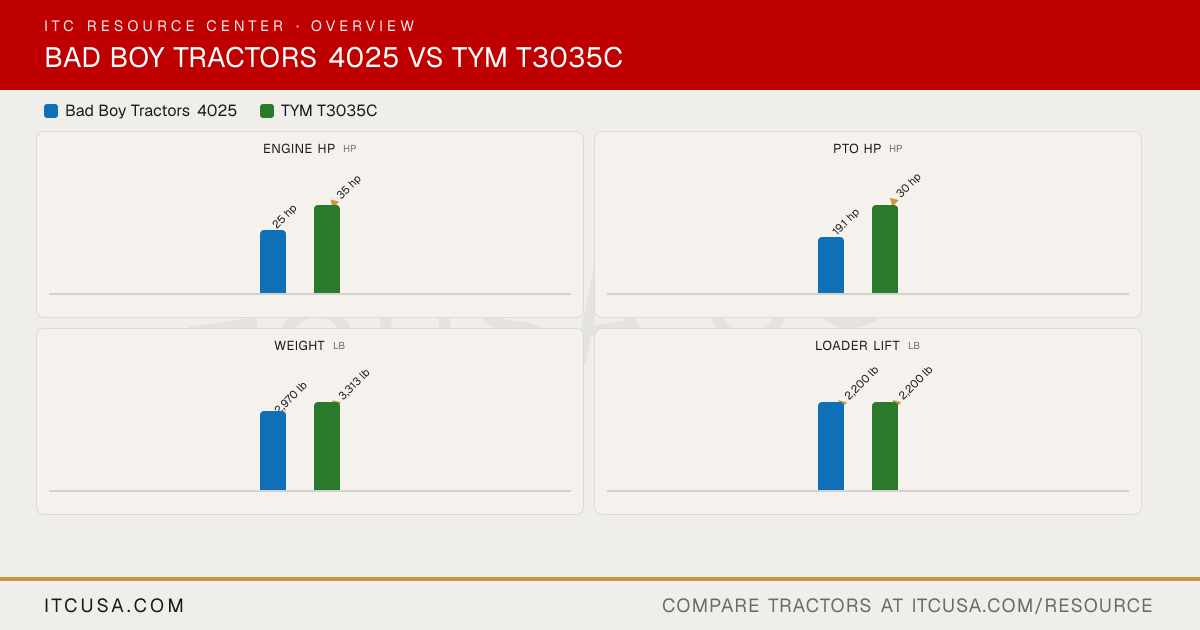

Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 4025 TYM T3035C
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 4025 TYM T3035C
▶ EngineEngine Manufacturer TYM TYM Engine Model A1700N6-BUTR_3 T1700N6 Engine Type Vertical, 4-stroke, water-cooled diesel 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 104.7 in³ 104.5 in³ Rated Engine Speed 2100 rpm 2100 rpm Engine Power (Gross) 25 hp 35 hp PTO Power 19.1 hp 30 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Not Published Air Cleaner Dry Dry element Fuel System Not Published IDI (indirect injection) Alternator 50 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev) Dual gear pump Implement Flow 7.5 gpm 7.7 gpm Steering Flow 4 gpm 4.2 gpm Total Hydraulic Flow 11.5 gpm 11.9 gpm Overall Hydraulic Pump Flow 11.5 gpm 11.9 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Loader: 4 / Rear: 0 No. of Optional Remote Valves 2 Not Published ▶ Fluid CapacityFuel Tank Capacity 7.13 gal 7.1 gal Coolant Capacity 1.32 gal 5.3 qt Crankcase Capacity 1.14 gal 4.5 qt Transmission / Hydraulic System Capacity Manual: 8.98 gal; HST: 9.77 gal 9.8 gal Front Axle Fluid Capacity Not Published 6.8 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 533 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,307 lb 3,306 lb Hitch Lift Capacity (at 24”) 2,425 lb 2,425 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) HST No. of Speeds 3 range (A/B/C) 3-Range Max Travel Speed (Forward) Not Published 18 mph Max Travel Speed (Reverse) Not Published Not Published Clutch None (HST) None (HST) Differential Lock & Limited Slip Options Mechanical rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Heavy-duty steel frame with cast iron axles Not Published Steering Fully hydraulic power steering Hydrostatic power steering Brakes Wet multi-disc Wet, multi-disc Seat Suspension & Adjustability Not Published Suspension seat Front Axle Type Selectable 4WD Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 134.88 in 120.9 in Overall Width 56.7 in Not Published Wheelbase 65.7 in 65.7 in Ground Clearance 15 in Not Published Min. Turn Radius without Brakes Not Published L: 105.51 in; R: 104.72 in Height to Top of ROPS 96.85 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2,970 lb 3,313 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R4 Industrial (25x8.50-14 / 15-19.5) R1 Agricultural 7-16 / 11.2-24; Golf (turf) tires 27x8.5-15 / 41x14.00; R4 Industrial 25x8.5-14 / 380/70-19.5 R1 Agricultural - Front 8.0-16 7-16, 6PR R1 Agricultural - Rear 12.4-24 11.2-24, 8PR R3 Turf - Front Not Published 27x8.5-15, 6PR (golf tire) R3 Turf - Rear Not Published 41x14.00, 4PR (golf tire) R4 Industrial - Front 25x8.50-14 25x8.5-14, 6PR R4 Industrial - Rear 15-19.5 380/70-19.5, 6PR ▶ Loader & AttachmentsQuick Attach Loader System Quick attach front loader Not Published Loader Model BBL400 L3035 Loader Lift Height 104 in L3035: 104.9 in Loader Lift Capacity (Full Height) 2,200 lb L3035: 2,200 lb Loader Breakout Force 3,660 lbf L3035: 3,422 lb ▶ WarrantyWarranty Length & Coverage Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bad Boy Tractors 4025 vs TYM T3035C: Quick Answers
Which has more horsepower, the Bad Boy Tractors 4025 or the TYM T3035C? The TYM T3035C leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 4025.
Which has more PTO horsepower, the Bad Boy Tractors 4025 or the TYM T3035C? The TYM T3035C leads on pto hp at 30 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.
Which is heavier, the Bad Boy Tractors 4025 or the TYM T3035C? The TYM T3035C leads on weight at 3,313 lb lb, compared to 2,970 lb lb for the Bad Boy Tractors 4025.
Which has more loader lift capacity, the Bad Boy Tractors 4025 or the TYM T3035C? They are effectively tied: both machines are rated at 2,200 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the TYM T3035C? They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in). More Head-to-Heads
