Across 9 measurable specs, this matchup is a dead heat: 3 categories to the Bad Boy Tractors 4035, 3 to the TYM T3035C, 3 tied. Machine pages: Bad Boy Tractors 4035 and TYM T3035C .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

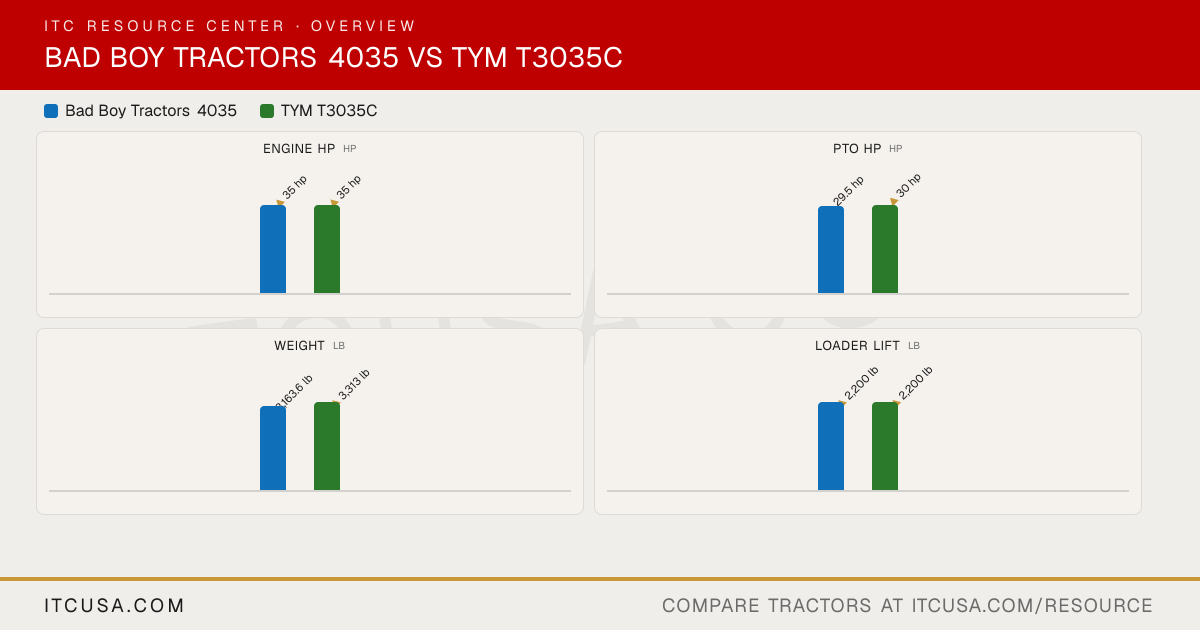

Category Verdict Spec Bad Boy Tractors 4035 TYM T3035C Engine HP (hp) 35 hp 35 hp PTO HP (hp) 29.5 hp ▲ 30 hpWeight (lb) 3,163.6 lb ▲ 3,313 lbLoader Lift (lb) 2,200 lb 2,200 lb 3-Pt Lift (24 in) (lb) 2,425 lb 2,425 lb Lift Height (in) 104 in ▲ 104.9 inBreakout Force (lbf) ▲ 3,660 lbf3,422 lbf Hydraulic Flow (gpm) ▲ 12.6 gpm11.9 gpm Travel Speed (mph) ▲ 19.1 mph18 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 4035 TYM T3035C
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 4035 TYM T3035C
▶ EngineEngine Manufacturer TYM TYM Engine Model A1700N4-BUTR_4 T1700N6 Engine Type Vertical, 4-stroke, water-cooled diesel 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 104.7 in³ 104.5 in³ Rated Engine Speed 2600 rpm 2100 rpm Engine Power (Gross) 35 hp 35 hp PTO Power 29.5 hp 30 hp Engine Emissions Constraints EPA Final Tier4 Tier 4 Cooling System Type Water-cooled Not Published Air Cleaner Not Published Dry element Fuel System Not Published IDI (indirect injection) Alternator 50 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Not Published Dual gear pump Implement Flow 8.2 gpm 7.7 gpm Steering Flow 4.4 gpm 4.2 gpm Total Hydraulic Flow 12.6 gpm 11.9 gpm Overall Hydraulic Pump Flow 12.6 gpm 11.9 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Loader: 4 / Rear: 0 No. of Optional Remote Valves Up to 2 Not Published ▶ Fluid CapacityFuel Tank Capacity 7.13 gal 7.1 gal Coolant Capacity 1.32 gal 5.3 qt Crankcase Capacity 1.14 gal 4.5 qt Transmission / Hydraulic System Capacity 9.77 gal 9.8 gal Front Axle Fluid Capacity 1.69 gal 6.8 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,306.9 lb 3,306 lb Hitch Lift Capacity (at 24”) 2,425 lb 2,425 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST), 3-range HST No. of Speeds 3 range (HST) 3-Range Max Travel Speed (Forward) 19.08 mph 18 mph Max Travel Speed (Reverse) 19.08 mph Not Published Clutch None (HST) None (HST) Differential Lock & Limited Slip Options Rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet, multi-disc Wet, multi-disc Seat Suspension & Adjustability Not Published Suspension seat Front Axle Type Selectable 4WD Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 134.88 in 120.9 in Overall Width 56.7 in Not Published Wheelbase 65.7 in 65.7 in Ground Clearance 15 in Not Published Min. Turn Radius without Brakes Not Published L: 105.51 in; R: 104.72 in Height to Top of ROPS 96.85 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 85.9 in Not Published ▶ WeightTractor Weight (Base) 3,163.6 lb 3,313 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20 R1 Agricultural 7-16 / 11.2-24; Golf (turf) tires 27x8.5-15 / 41x14.00; R4 Industrial 25x8.5-14 / 380/70-19.5 R1 Agricultural - Front 8.0-16 7-16, 6PR R1 Agricultural - Rear 12.4-24 11.2-24, 8PR R3 Turf - Front Not Published 27x8.5-15, 6PR R3 Turf - Rear Not Published 41x14.00, 4PR R4 Industrial - Front 28x8.50-15 25x8.5-14, 6PR R4 Industrial - Rear 43x16.00-20 380/70-19.5, 6PR ▶ Loader & AttachmentsQuick Attach Loader System SSQA Not Published Loader Model BBL400 L3035 Loader Lift Height 104 in L3035: 104.9 in Loader Lift Capacity (Full Height) 2,200 lb L3035: 2,200 lb Loader Breakout Force 3,660 lb L3035: 3,422 lb ▶ WarrantyWarranty Length & Coverage Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours 24 months or 2,000 hours bumper-to-bumper (parts and labor); 72 months or 3,000 hours powertrain (non-commercial use, 20 to 70 engine hp); 12 months on front-end loaders, backhoes and mid-mount mowers ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bad Boy Tractors 4035 vs TYM T3035C: Quick Answers
Which has more horsepower, the Bad Boy Tractors 4035 or the TYM T3035C? They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the Bad Boy Tractors 4035 or the TYM T3035C? The TYM T3035C leads on pto hp at 30 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035.
Which is heavier, the Bad Boy Tractors 4035 or the TYM T3035C? The TYM T3035C leads on weight at 3,313 lb lb, compared to 3,163.6 lb lb for the Bad Boy Tractors 4035.
Which has more loader lift capacity, the Bad Boy Tractors 4035 or the TYM T3035C? They are effectively tied: both machines are rated at 2,200 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the TYM T3035C? They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in). More Head-to-Heads
