Bad Boy Tractors 4035 vs John Deere 4300

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 8 categories to 1. Machine pages: Bad Boy Tractors 4035 and John Deere 4300.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

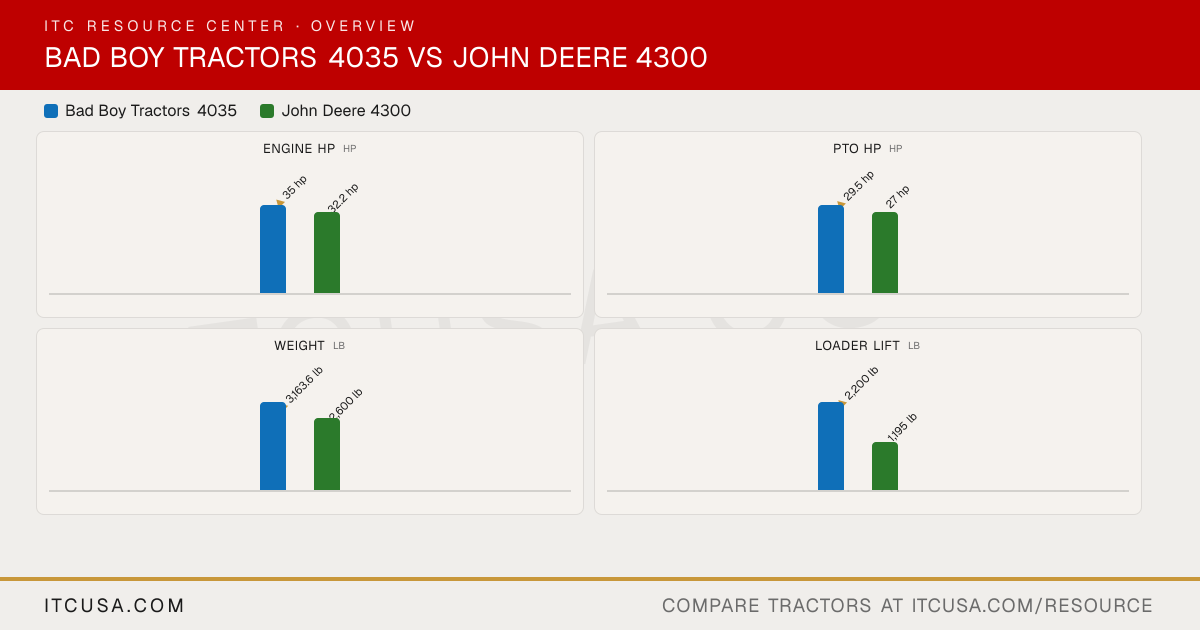

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	John Deere4300

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1700N4-BUTR_4	3TNE84
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder liquid-cooled diesel, direct injection
No. of Cylinders	3	3
Displacement	104.7 in³	91.3 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	35 hp	32.2 hp
PTO Power	29.5 hp	27 hp
Engine Emissions Constraints	EPA Final Tier4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry type with safety element
Fuel System	Not Published	Direct injection, self bleeding, in-line fuel pump with electric shutoff
Alternator	50 A, 12 V	40 A
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	8.2 gpm	8.3 gpm
Steering Flow	4.4 gpm	5.0 gpm
Total Hydraulic Flow	12.6 gpm	13.3 gpm
Overall Hydraulic Pump Flow	12.6 gpm	13.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	10.0 gal
Coolant Capacity	1.32 gal	6.1 qt
Crankcase Capacity	1.14 gal	4.5 qt
Transmission / Hydraulic System Capacity	9.77 gal	6.3 gal (gear); 6.8 gal (hydrostatic)
Front Axle Fluid Capacity	1.69 gal	4.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent, wet disk clutch and brake
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Available, 2100 rpm
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2200 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	SyncShift 9F/3R gear (2WD and 4WD); SyncReverser 12F/12R (4WD only); hydrostatic 3-range (2WD and 4WD)
No. of Speeds	3 range (HST)	9 forward, 3 reverse (SyncShift); 12 forward, 12 reverse (SyncReverser); infinite forward and reverse, 3 ranges (hydrostatic)
Max Travel Speed (Forward)	19.08 mph	15.6 mph (SyncShift); 15.6 mph (SyncReverser); 15.5 mph (hydrostatic)
Max Travel Speed (Reverse)	19.08 mph	7.7 mph (SyncShift); 15.5 mph (hydrostatic)
Clutch	None (HST)	One multi-disk wet clutch, 4.88 in (SyncShift); two multi-disk wet clutches, 4.88 in (SyncReverser)
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Two-post fixed ROPS standard, folding ROPS optional; two- or four-wheel drive
Steering	Hydrostatic power steering	Power steering, cylinder-assisted
Brakes	Wet, multi-disc	Wet disk
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	2WD standard; mechanical front wheel drive (MFWD) optional, all ranges
Front Axle Rating	Not Published	1588 to 3197 lb
Drawbar Capacity	Not Published	562 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	117 in
Overall Width	56.7 in	50.0 in (minimum); 66.7 in (maximum)
Wheelbase	65.7 in	68.0 in
Ground Clearance	15 in	13.4 in (rear axle)
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.85 in	84.0 in (standard ROPS); 90.0 in (folding ROPS)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,163.6 lb	2600 lb (2WD); 2900 lb (MFWD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	Front: 5.00-15 F2 (2WD), 7.00-14 or 7.00-16 R1, 25x8.50-14 R4, 27x8.50-15 R3, 25-10.50LLx15 golf; rear: 11.2-24 or 12.4-24 R1, 11.2-24 or 41x14.00-20 R3, 15.00-19.5 R4, 41LLx18.00-16 golf
R1 Agricultural - Front	8.0-16	5.00-15 (2WD, F2); 7.00-14 or 7.00-16 (MFWD)
R1 Agricultural - Rear	12.4-24	11.2-24 or 12.4-24
R3 Turf - Front	Not Published	27x8.50-15 (2WD); 7.00-14 (MFWD)
R3 Turf - Rear	Not Published	41x14.00-20 or 11.2-24
R4 Industrial - Front	28x8.50-15	25x8.50-14
R4 Industrial - Rear	43x16.00-20	15.00-19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL400	420; 430
Loader Lift Height	104 in	420: 87.6 in; 430: 101.4 in
Loader Lift Capacity (Full Height)	2,200 lb	420: 1195 lb; 430: 1258 lb (to max height at pivot point)
Loader Breakout Force	3,660 lb	420: 2693 lbf; 430: 3299 lbf (at pivot point)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 4035 vs John Deere 4300: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the John Deere 4300?

The Bad Boy Tractors 4035 leads on engine hp at 35 hp hp, compared to 32.2 hp hp for the John Deere 4300.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the John Deere 4300?

The Bad Boy Tractors 4035 leads on pto hp at 29.5 hp hp, compared to 27 hp hp for the John Deere 4300.

Which is heavier, the Bad Boy Tractors 4035 or the John Deere 4300?

The Bad Boy Tractors 4035 leads on weight at 3,163.6 lb lb, compared to 2,600 lb lb for the John Deere 4300.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the John Deere 4300?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,195 lb lb for the John Deere 4300.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the John Deere 4300?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,200 lb lb for the John Deere 4300.
