Bad Boy Tractors 4035 vs Mahindra 2638 HST Cab

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 5 categories to 3 (1 tied). Machine pages: Bad Boy Tractors 4035 and Mahindra 2638 HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

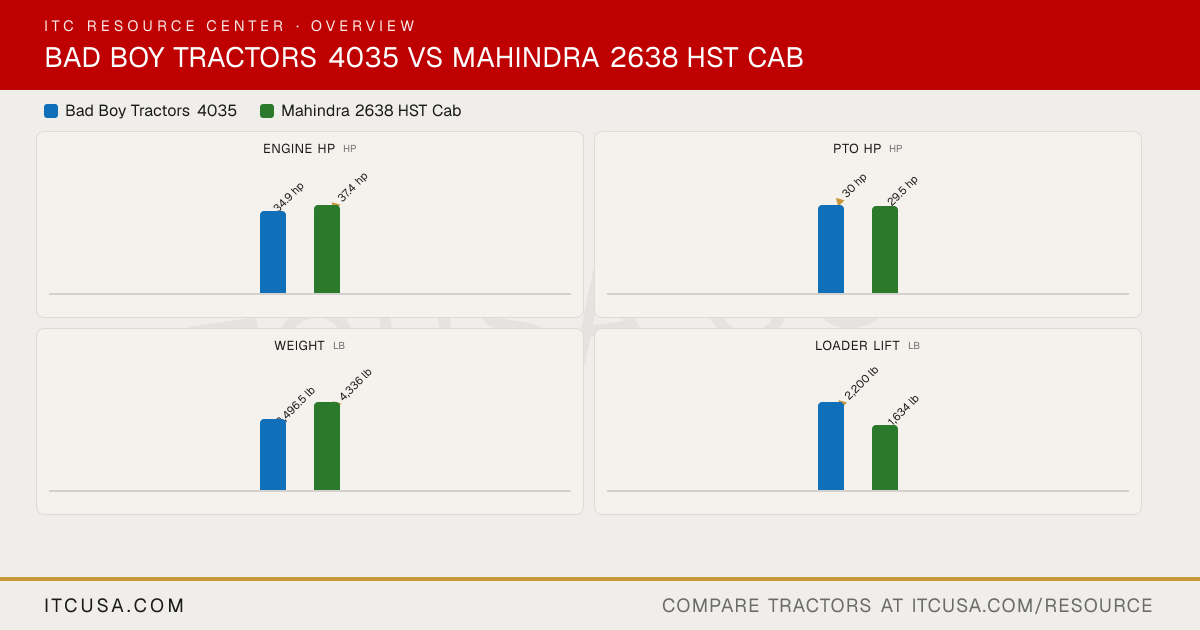

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	Mahindra2638 HST Cab

▶Engine
Engine Manufacturer	TYM	Mahindra
Engine Model	A1700N4-BUTR_4	CE-38
Engine Type	Vertical, 4-stroke, water-cooled diesel	Naturally aspirated, direct injection, liquid-cooled diesel
No. of Cylinders	3	4
Displacement	104.5 in³	166.7 in³
Rated Engine Speed	2600 rpm	2400 rpm
Engine Power (Gross)	35 hp	36.9 hp
PTO Power	29.5 hp	29.5 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Dry dual element
Fuel System	Not Published	Direct Injection (mCRD fuel-injected)
Alternator	50 A, 12 V	90 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	7.6 gpm
Steering Flow	4.4 gpm	4.1 gpm
Total Hydraulic Flow	12.6 gpm	11.7 gpm
Overall Hydraulic Pump Flow	12.6 gpm	11.7 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	1 (optional)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	9 gal
Coolant Capacity	1.32 gal	1.85 gal
Crankcase Capacity	1.14 gal	2.25 gal
Transmission / Hydraulic System Capacity	9.77 gal	8.5 gal
Front Axle Fluid Capacity	1.69 gal	2.166 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm @ 2400 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm @ 2500 engine rpm
Category, 3-Point Hitch	Category I	CAT I
Hitch Lift Capacity	3,307 lb	2,646 lb
Hitch Lift Capacity (at 24”)	2,425 lb	Not Published
Lift Control Type	Position control	Position Control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	HST
No. of Speeds	3 range (HST)	Infinite / 3 Ranges
Max Travel Speed (Forward)	19.08 mph	15.05 mph
Max Travel Speed (Reverse)	19.08 mph	14.38 mph
Clutch	None (HST)	Damper
Differential Lock & Limited Slip Options	Rear differential lock	Bevel gears with diff-lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet Disc Brake, Mechanical
Seat Suspension & Adjustability	Not Published	Seat with mechanical suspension, adjustable headrest, folding armrests
Front Axle Type	Selectable 4WD	Center pin
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	56.7 in	63.2 in
Wheelbase	65.7 in	67.7 in
Ground Clearance	13.1 in	14.5 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.85 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	94.4 in
Overall Length	134.88 in	119.3 in
▶Weight
Tractor Weight (Base)	3,164 lb	3,351 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	4,336 lb (3,351 + 985, computed; 2638CL loader shipping weight)
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	8.0-16	7-16 6PR
R1 Agricultural - Rear	12.4-24	11.2-24 4PR
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	28x8.50-15	10-16.5
R4 Industrial - Rear	43x16.00-20	43x16-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	2638CL: quick-attach adapter included
Loader Model	BBL400	2638CL (66 in bucket)
Loader Lift Height	104 in	2638CL: 101.4 in
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	2638CL: 1,634 lb (at pivot pin)
Loader Breakout Force	3,660 lb	2638CL: 2,696 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

Bad Boy Tractors 4035 vs Mahindra 2638 HST Cab: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the Mahindra 2638 HST Cab?

The Mahindra 2638 HST Cab leads on engine hp at 36.9 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Mahindra 2638 HST Cab?

They are effectively tied: both machines are rated at 29.5 hp hp for pto hp.

Which is heavier, the Bad Boy Tractors 4035 or the Mahindra 2638 HST Cab?

The Mahindra 2638 HST Cab leads on weight at 3,351 lb lb, compared to 3,164 lb lb for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Mahindra 2638 HST Cab?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,634 lb lb for the Mahindra 2638 HST Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Mahindra 2638 HST Cab?

The Mahindra 2638 HST Cab leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035.
