Bad Boy Tractors 4035 vs Yanmar SM240

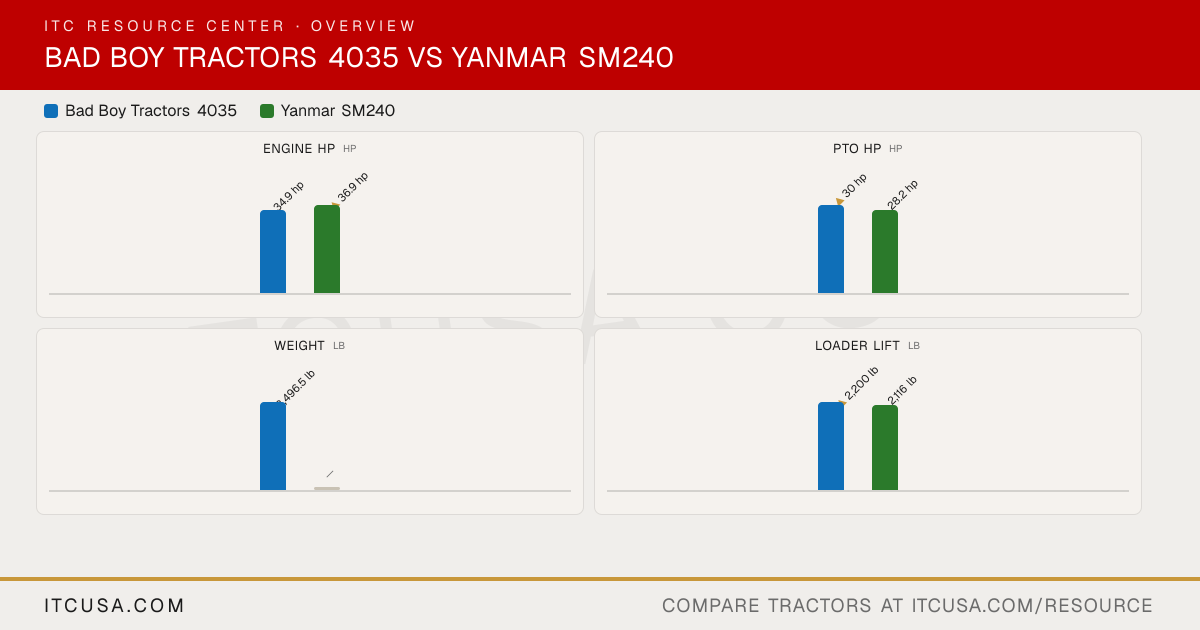

Across 7 measurable specs, the Bad Boy Tractors 4035 leads 6 categories to 1. Machine pages: Bad Boy Tractors 4035 and Yanmar SM240.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	YanmarSM240

▶Engine
PTO Power	30 hp	28.2 hp
Alternator	50 A, 12 V	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	3 Cylinder, Water-Cooled, Diesel	Not Published
Fuel System	Diesel fuel	Not Published
Displacement	104.7 in³	Not Published
No. of Cylinders	3	Not Published
Rated Engine Speed	2600 rpm	3000 rpm
Cooling System Type	Water cooled	Not Published
Engine Manufacturer	A1700N4-BUTC_4	YANMAR
Engine Power (Gross)	34.9 hp	36.9 hp
Engine Emissions Constraints	EPA Final Tier4	Not Published
▶Weight
Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	—
Weight with ROPS and Loader	3163 lbs	Not Published
Weight with Cab and Loader	3,728 lbs	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours
▶Hydraulics
Pump Type	Not Published	Not Published
Steering Flow	4.4 gpm	4.4 gpm
Implement Flow	8.2 gpm	6.1 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	10.5 gpm
Hydraulic System Type	Open Center	Not Published
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	10.5 gpm
No. of Optional Remote Valves	Optional (up to 2)	1 or 2
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 RPM	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position Control	Not Published
Hitch Lift Capacity	3,306.9 lb	2,639 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1,558 lb
▶Tire Options
R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	Not Published
R4 Industrial - Rear	43X16.00-20	Not Published
R4 Industrial - Front	28X8.50-15	Not Published
R1 Agricultural - Rear	12.4-24 6PR	Not Published
R1 Agricultural - Front	8.0-16 4PR	Not Published
▶Fluid Capacity
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Fuel Tank Capacity	7.13 gal	9.0 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	Not Published
▶Loader & Attachments
Loader Lift Height	104 in	101.5 in
Loader Breakout Force	3,660 lb	3,435 lb
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	2,116 lb
▶Transmission & Drivetrain
Clutch	None (HST)	Dry single plate
No. of Speeds	3 Range	Not Published
Transmission Type	HST (3-range)	Synchro shuttle
Max Travel Speed (Forward)	19.08 mph (range C)	Not Published
Max Travel Speed (Reverse)	19.08 mph (range C)	Not Published
Differential Lock & Limited Slip Options	Differential lock	Rear differential lock (foot pedal engagement)
▶Chassis, Steering & Controls
Brakes	Wet multi-disc	Not Published
Steering	Fully hydraulic power steering	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Cast Iron	Selectable 2WD/4WD engagement
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.7 in	Not Published
Overall Width	56.7 in	Not Published
Overall Length	134.88 in.	—
Ground Clearance	15 in	12.8 in
Height to Top of ROPS	96.85 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 4035 vs Yanmar SM240: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the Yanmar SM240?

The Yanmar SM240 leads on engine hp at 36.9 hp hp, compared to 34.9 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Yanmar SM240?

The Bad Boy Tractors 4035 leads on pto hp at 30 hp hp, compared to 28.2 hp hp for the Yanmar SM240.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Yanmar SM240?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 2,116 lb lb for the Yanmar SM240.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Yanmar SM240?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,558 lb lb for the Yanmar SM240.
