Across 8 measurable specs, the LS Tractor MT335H leads 4 categories to 2 (2 tied). Machine pages: Case IH Farmall 35A Mechanical and LS Tractor MT335H.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 35A Mechanical | LS Tractor MT335H |
|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | ▲ 29.7 hp | 28 hp |
| Weight (lb) | 3,067 lb | ▲ 3,285 lb |
| Loader Lift (lb) | 1,250 lb | ▲ 2,185 lb |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | 1,433 lb |
| Lift Height (in) | ▲ 98.4 in | 94.4 in |
| Breakout Force (lbf) | 1,913 lbf | ▲ 3,612 lbf |
| Hydraulic Flow (gpm) | 12.4 gpm | ▲ 13.7 gpm |
| Travel Speed (mph) | 14.2 mph | n/a |

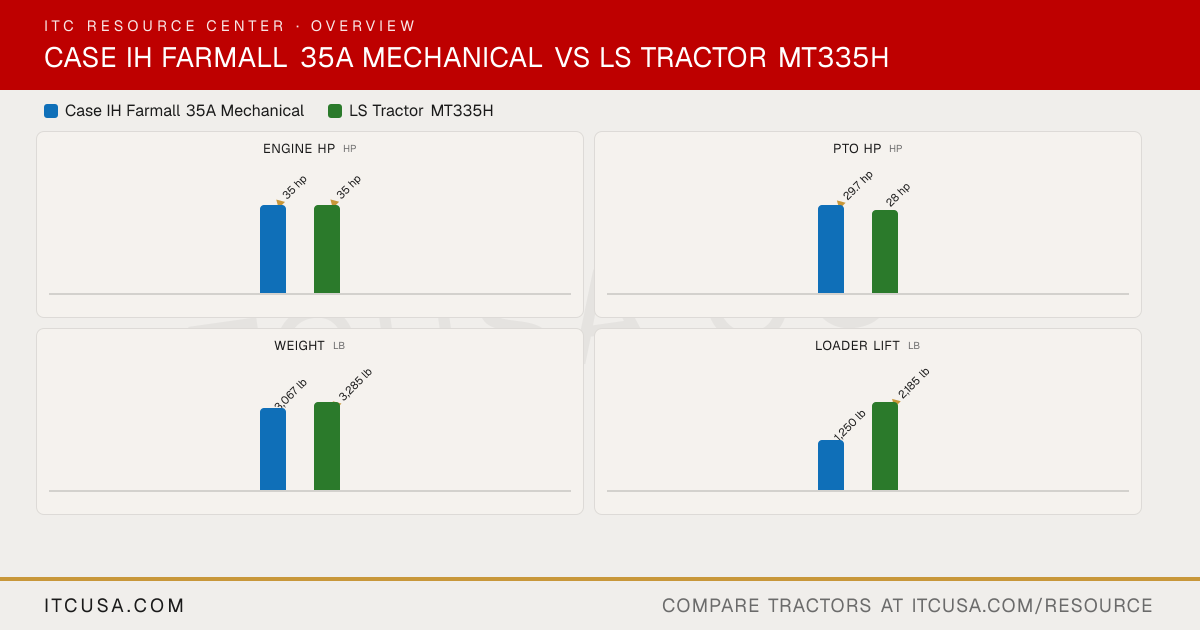

The headline numbers at a glance.
Case IH Farmall 35A MechanicalLS Tractor MT335H
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 35A Mechanical | LS TractorMT335H |
|---|
|
|---|
| Engine Manufacturer | LS Mtron | LS Mtron |
|---|
| Engine Model | L3C19-T5 | L3C19-T |
|---|
| Engine Type | 3-cylinder, turbocharged diesel, Tier 4 B/Final | 3 Cylinder, CRDI, water-cooled turbo diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 116 in³ | 114.7 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 35 hp | 35 hp |
|---|
| PTO Power | 29.7 hp | 28 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Pressurized liquid cooling with recirculating bypass | Water-cooled |
|---|
| Air Cleaner | Not Published | Dry |
|---|
| Fuel System | High pressure common rail | Delphi, CRDI |
|---|
| Alternator | 70 A, 12 V | 85 A, 12 V |
|---|
|
|---|
| Pump Type | Gear | Gear pump, engine drive |
|---|
| Implement Flow | 8.2 gpm | 8.2 gpm |
|---|
| Steering Flow | 4.2 gpm | 5.5 gpm |
|---|
| Total Hydraulic Flow | 12.4 gpm (8.2 + 4.2, computed) | 13.7 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 13.7 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 0 | 2 Pair |
|---|
| No. of Optional Remote Valves | 1 | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 7.4 gal | 10.6 gal |
|---|
| Coolant Capacity | 7.5 qt | 1.9 gal |
|---|
| Crankcase Capacity | 5.8 qt | 1.5 gal |
|---|
| Transmission / Hydraulic System Capacity | 8.5 gal | 7.9 gal |
|---|
| Front Axle Fluid Capacity | 6.9 qt | 1.7 gal |
|---|
|
|---|
| PTO Type | Independent, electro-hydraulic engagement | Independent |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Optional, 2,000 rpm | Optional (2,000 rpm) |
|---|
| Category, 3-Point Hitch | Category 1 | Category I |
|---|
| Hitch Lift Capacity | 1,808 lb | 1,808 lb |
|---|
| Hitch Lift Capacity (at 24”) | 1,433 lb | 1,433 lb |
|---|
| Lift Control Type | Mechanical Draft Control (MDC) | Position control |
|---|
|
|---|
| Transmission Type | 12x12 mechanical shuttle with synchro shift (dry clutch) (standard) | Hydrostatic (HST) |
|---|
| No. of Speeds | 12 forward, 12 reverse | Infinite, 3 ranges (HST) |
|---|
| Max Travel Speed (Forward) | 14.2 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | 13.63 mph | Not Published |
|---|
| Clutch | Dry clutch | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical differential lock | Mechanical differential lock (pedal) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Hydrostatic Power Steering |
|---|
| Brakes | Wet disc, mechanical actuation | Wet, Multi-disc |
|---|
| Seat Suspension & Adjustability | Adjustable suspension seat | Not Published |
|---|
| Front Axle Type | Mechanical Front Drive (MFD) | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 145.2 in | 124.3 in |
|---|
| Overall Width | 66.4 in | 59.3 in |
|---|
| Wheelbase | 67.3 in | 66 in |
|---|
| Ground Clearance | 10.0 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 123 in | Not Published |
|---|
| Height to Top of ROPS | 87.6 in | 93 in |
|---|
| Height to Top of ROPS (folded) | 68.2 in | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 3,067 lb | 3,285 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 agricultural, R3 turf, or R4 industrial (R4 standard) | R1 Agricultural, R3 Turf, R4 Industrial |
|---|
| R1 Agricultural - Front | 7x14 | 9.5-16 |
|---|
| R1 Agricultural - Rear | 11.2x24 | 14.9-24 |
|---|
| R3 Turf - Front | 25x8.50-14 | 25x8.5-14 |
|---|
| R3 Turf - Rear | 41x14.00-20 | 41x14-20 |
|---|
| R4 Industrial - Front | 25x8.50-14 | 25x8.5-14 |
|---|
| R4 Industrial - Rear | 43x16.00-20 | 43x16-20 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | LL3116: Standard Skid Steer Coupler (skid-steer compatible quick-attach) |
|---|
| Loader Model | L340A | LL3116 |
|---|
| Loader Lift Height | 98.4 in | 94.4 in |
|---|
| Loader Lift Capacity (Full Height) | 1,250 lb | LL3116: 2,185 lb |
|---|
| Loader Breakout Force | 1913 lb | 3,612 lb |
|---|
|
|---|
| Warranty Length & Coverage | 6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection | 6-year limited powertrain warranty |
|---|
Case IH Farmall 35A Mechanical vs LS Tractor MT335H: Quick Answers
- Which has more horsepower, the Case IH Farmall 35A Mechanical or the LS Tractor MT335H?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall 35A Mechanical or the LS Tractor MT335H?
- The Case IH Farmall 35A Mechanical leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the LS Tractor MT335H.
- Which is heavier, the Case IH Farmall 35A Mechanical or the LS Tractor MT335H?
- The LS Tractor MT335H leads on weight at 3,285 lb lb, compared to 3,067 lb lb for the Case IH Farmall 35A Mechanical.
- Which has more loader lift capacity, the Case IH Farmall 35A Mechanical or the LS Tractor MT335H?
- The LS Tractor MT335H leads on loader lift at 2,185 lb lb, compared to 1,250 lb lb for the Case IH Farmall 35A Mechanical.
- Which has more three-point hitch lift capacity, the Case IH Farmall 35A Mechanical or the LS Tractor MT335H?
- They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
