Across 9 measurable specs, the Kioti CK20 leads 7 categories to 2. Machine pages: John Deere 1E 23 and Kioti CK20.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | John Deere 1E 23 | Kioti CK20 |
|---|
| Engine HP (hp) | ▲ 21.5 hp | 21 hp |
| PTO HP (hp) | 16.2 hp | ▲ 16.5 hp |
| Weight (lb) | 1,475 lb | ▲ 1,993 lb |
| Loader Lift (lb) | 704 lb | ▲ 1,076 lb |
| 3-Pt Lift (24 in) (lb) | 758 lb | ▲ 1,109 lb |
| Lift Height (in) | 72 in | ▲ 88 in |
| Breakout Force (lbf) | ▲ 1,823 lbf | 1,515 lbf |
| Hydraulic Flow (gpm) | 7 gpm | ▲ 7.7 gpm |
| Travel Speed (mph) | 9.1 mph | ▲ 10.1 mph |

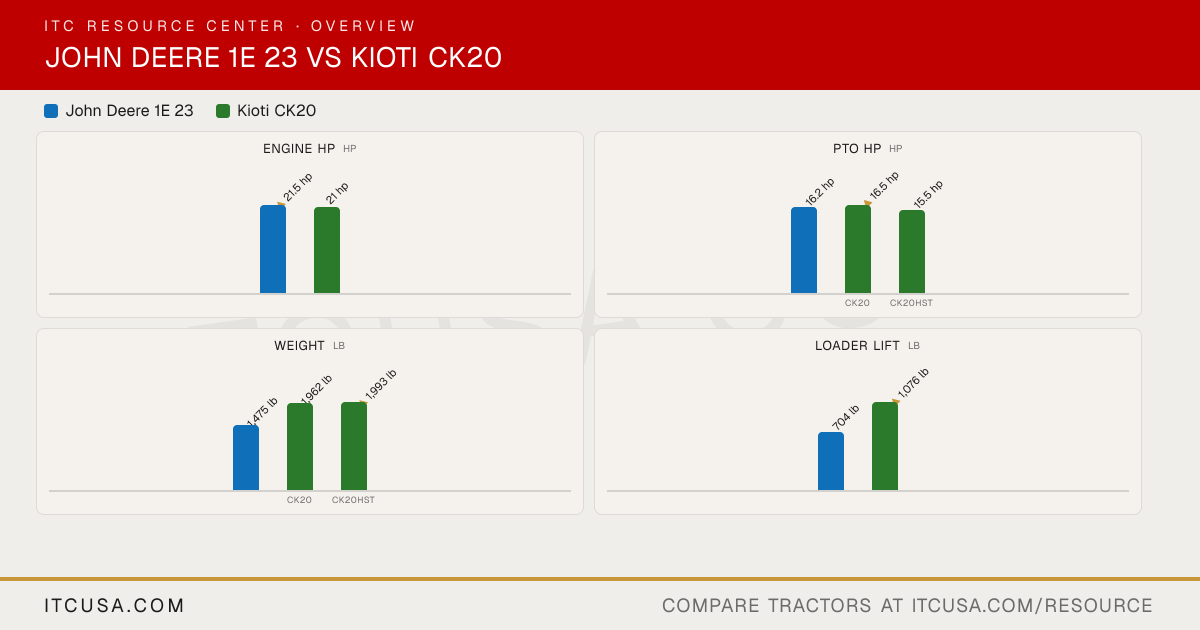

The headline numbers at a glance.
John Deere 1E 23Kioti CK20
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
1,475 lb
1,962 lb
▲1,993 lb
CK20CK20HST
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere1E 23 | KiotiCK20 |
|---|
|
|---|
| Engine Manufacturer | Yanmar | Daedong |
|---|
| Engine Model | 3TNM74F-NCJT | 3C093 |
|---|
| Engine Type | Diesel | 3-cylinder, liquid-cooled diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 60.6 in³ | 56.6 in³ |
|---|
| Rated Engine Speed | 3200 rpm | 2800 rpm |
|---|
| Engine Power (Gross) | 21.5 hp | 21 hp |
|---|
| PTO Power | 16.2 hp | CK20: 16.5 hp; CK20HST: 15.5 hp |
|---|
| Engine Emissions Constraints | Not Published | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Gear | Not Published |
|---|
| Implement Flow | 3.5 gpm | Not Published |
|---|
| Steering Flow | 3.5 gpm | Not Published |
|---|
| Total Hydraulic Flow | 7 gpm | 7.66 gpm |
|---|
| Overall Hydraulic Pump Flow | 7 gpm | 7.66 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | 0 |
|---|
| No. of Optional Remote Valves | Not Published | 1 |
|---|
|
|---|
| Fuel Tank Capacity | 5.57 gal | 5.28 gal |
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | CK20: Transmission; CK20HST: Live |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Standard, 2100 rpm | 2,000 rpm |
|---|
| Category, 3-Point Hitch | Limited Category I | Category I |
|---|
| Hitch Lift Capacity | Not Published | 1,631 lb |
|---|
| Hitch Lift Capacity (at 24”) | 758 lb | 1,109 lb |
|---|
| Lift Control Type | Select control | Not Published |
|---|
|
|---|
| Transmission Type | Hydrostatic - 2 range | CK20: 6-speed partially synchronized; CK20HST: Hydrostatic |
|---|
| No. of Speeds | Infinite (hydrostatic), 2 ranges forward and reverse | CK20: 6F/2R; CK20HST: Infinite |
|---|
| Max Travel Speed (Forward) | 9.1 mph | 10.1 mph |
|---|
| Max Travel Speed (Reverse) | 9.1 mph | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Foldable ROPS, standard equipment | Not Published |
|---|
| Steering | Power steering | Power steering |
|---|
| Brakes | Wet disc, left-hand pedal | Wet disc |
|---|
| Seat Suspension & Adjustability | Deluxe suspension seat with high back and adjustable settings; no tilt steering | Not Published |
|---|
| Front Axle Type | Four-wheel drive (mechanical front-wheel drive) | 4WD |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | Not Published | 105.7 in |
|---|
| Overall Width | 47.22 in (R3 tires); 47.32 in (R4 tires) | 44.1 in |
|---|
| Wheelbase | 57.1 in | 57.9 in |
|---|
| Ground Clearance | Not Published | 12.2 in |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | 77.5 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | Approx. 1,475 lb (shipping weight, open station) | CK20: 1,962 lb; CK20HST: 1,993 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R3 Turf, R3 Hybrid, or R4 Industrial | Front AG 6-12 (Turf 24x8.50-12/4, Industrial 24x8.50-12/4); Rear AG 9.5-16 (Turf 33x12.5-16.5, Industrial 12-16.5) |
|---|
| R1 Agricultural - Front | Not Published | 6-12 |
|---|
| R1 Agricultural - Rear | Not Published | 9.5-16 |
|---|
| R3 Turf - Front | 18x8.50-10 | 24x8.50-12/4 |
|---|
| R3 Turf - Rear | 26x12-12 | 33x12.5-16.5 |
|---|
| R4 Industrial - Front | 18x8.5-10 | 24x8.50-12/4 |
|---|
| R4 Industrial - Rear | 26x12-12 | 12-16.5 |
|---|
|
|---|
| Quick Attach Loader System | Quik-Park | Not Published |
|---|
| Loader Model | 120R | KL120 |
|---|
| Loader Lift Height | 120R: 72 in | KL120: 88.0 in |
|---|
| Loader Lift Capacity (Full Height) | 120R (NSL): 704 lb | KL120: 1,076 lb |
|---|
| Loader Breakout Force | 1823 lbf (at pivot pin) | KL120: 1,515 lb |
|---|
|
|---|
| Warranty Length & Coverage | 6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use | Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor |
|---|
|
|---|
| Accessories that fit | None tagged yet | |
|---|
John Deere 1E 23 vs Kioti CK20: Quick Answers
- Which has more horsepower, the John Deere 1E 23 or the Kioti CK20?
- The John Deere 1E 23 leads on engine hp at 21.5 hp hp, compared to 21 hp hp for the Kioti CK20.
- Which has more PTO horsepower, the John Deere 1E 23 or the Kioti CK20?
- The Kioti CK20 leads on pto hp at 16.5 hp hp, compared to 16.2 hp hp for the John Deere 1E 23.
- Which is heavier, the John Deere 1E 23 or the Kioti CK20?
- The Kioti CK20 leads on weight at 1,993 lb lb, compared to 1,475 lb lb for the John Deere 1E 23.
- Which has more loader lift capacity, the John Deere 1E 23 or the Kioti CK20?
- The Kioti CK20 leads on loader lift at 1,076 lb lb, compared to 704 lb lb for the John Deere 1E 23.
- Which has more three-point hitch lift capacity, the John Deere 1E 23 or the Kioti CK20?
- The Kioti CK20 leads on 3-pt lift (24 in) at 1,109 lb lb, compared to 758 lb lb for the John Deere 1E 23.
