Kioti CK2620 vs Kioti CS2610

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Kioti CK2620 leads 4 categories to 2. Machine pages: Kioti CK2620 and Kioti CS2610.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti CK2620	Kioti CS2610
Engine HP (hp)	24.5 hp	▲ 26 hp
PTO HP (hp)	19.5 hp	n/a
Weight (lb)	3,397 lb	n/a
Loader Lift (lb)	▲ 1,969 lb	675.3 lb
3-Pt Lift (24 in) (lb)	1,631 lb	n/a
Lift Height (in)	▲ 98.4 in	71.3 in
Breakout Force (lbf)	▲ 3,464 lbf	1,332 lbf
Hydraulic Flow (gpm)	▲ 11.7 gpm	6.5 gpm
Travel Speed (mph)	10 mph	▲ 10.3 mph

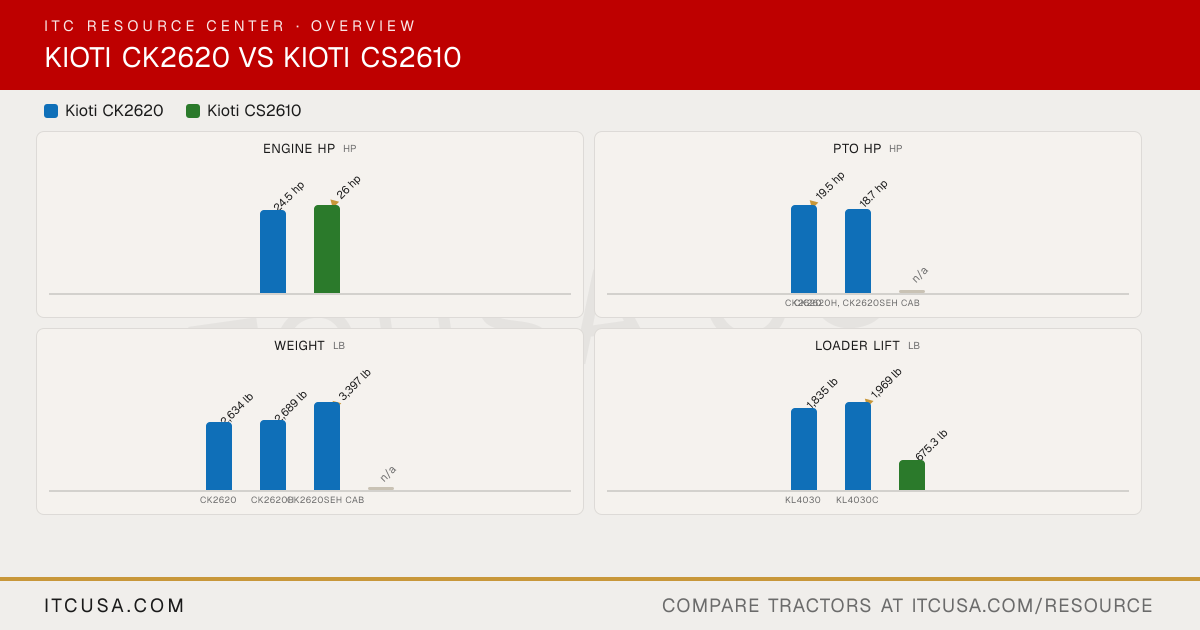

The headline numbers at a glance.

Kioti CK2620Kioti CS2610

Engine HPhp

24.5 hp

▲26 hp

PTO HPhp

▲19.5 hp

18.7 hp

n/a

CK2620CK2620H, CK2620SEH CAB

Weightlb

2,634 lb

2,689 lb

▲3,397 lb

n/a

CK2620CK2620HCK2620SEH CAB

Loader Liftlb

1,835 lb

▲1,969 lb

675.3 lb

KL4030KL4030C

3-Pt Lift (24 in)lb

1,631 lb

n/a

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCK2620	KiotiCS2610


Engine Manufacturer	KIOTI	Shibaura
Engine Model	CK2620: 3A165LWM-U; CK2620H, CK2620SEH CAB: 3A165LWH-U	S773L
Engine Type	3-cylinder, in-line, liquid-cooled diesel	3-cylinder diesel with pressurized radiator
No. of Cylinders	3	3
Displacement	100.5 in³	69.0 in³
Rated Engine Speed	2400 rpm	3000 rpm
Engine Power (Gross)	24.5 hp	26 hp
PTO Power	CK2620: 19.5 hp; CK2620H, CK2620SEH CAB: 18.7 hp	Not Published
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry element	Not Published
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published

Pump Type	Gear	Gear
Implement Flow	CK2620, CK2620H: 7.14 gpm; CK2620SEH CAB: 6.86 gpm	Not Published
Steering Flow	CK2620, CK2620H: 4.59 gpm; CK2620SEH CAB: 4.46 gpm	Not Published
Total Hydraulic Flow	CK2620, CK2620H: 11.73 gpm; CK2620SEH CAB: 11.33 gpm	6.5 gpm
Overall Hydraulic Pump Flow	CK2620, CK2620H: 11.73 gpm; CK2620SEH CAB: 11.33 gpm	6.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	CK2620, CK2620H: 0; CK2620SEH CAB: 2	Not Published
No. of Optional Remote Valves	CK2620, CK2620H: 2	Not Published

Fuel Tank Capacity	9.0 gal	6.7 gal
Coolant Capacity	0.89 gal	Not Published
Crankcase Capacity	1.6 gal	Not Published
Transmission / Hydraulic System Capacity	5.8 gal	Not Published
Front Axle Fluid Capacity	1.6 gal	Not Published

PTO Type	CK2620, CK2620H: Live; CK2620SEH CAB: Independent	Independent
PTO Rear	540 rpm (1-3/8 in, 6 splines)	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard (2,200 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,270 lb	Not Published
Hitch Lift Capacity (at 24”)	1,631 lb	Not Published
Lift Control Type	Position control	Position control

Transmission Type	CK2620: Manual; CK2620H, CK2620SEH CAB: Hydrostatic	Hydrostatic (HST)
No. of Speeds	CK2620: 9F/3R; CK2620H, CK2620SEH CAB: Infinite, 3 range	Infinite, 2 range
Max Travel Speed (Forward)	CK2620: 9.79 mph; CK2620H, CK2620SEH CAB: 10.01 mph	10.3 mph
Max Travel Speed (Reverse)	CK2620: 6.39 mph; CK2620H, CK2620SEH CAB: 7.01 mph	7.0 mph
Clutch	CK2620: Dry dual stage; CK2620H: Dry single stage; CK2620SEH CAB: None (hydrostatic)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (mechanical)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD, manual engagement	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	Not Published

Overall Length with 3-Point Hitch	120.9 in	98.1 in
Overall Width	54.5 in	Not Published
Wheelbase	65.7 in	55.1 in
Ground Clearance	13.4 in	6.4 in
Min. Turn Radius without Brakes	107.5 in	Not Published
Height to Top of ROPS	92.9 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	92.5 in	Not Published

Tractor Weight (Base)	CK2620: 2,634 lb; CK2620H: 2,689 lb; CK2620SEH CAB: 3,397 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)	R3 Turf and R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear
R1 Agricultural - Front	7-16	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	28x8.5-15/6	18x8.5-10
R3 Turf - Rear	41x14-20/4	26x12.00-12
R4 Industrial - Front	27x8.5-15	18x8.5-10
R4 Industrial - Rear	15-19.5	26x12.00-12

Quick Attach Loader System	Not Published	Quick attach (QA) bucket, 48 in
Loader Model	KL4030; KL4030C	SL2410
Loader Lift Height	98.4 in (KL4030 and KL4030C loaders)	SL2410: 71.3 in
Loader Lift Capacity (Full Height)	KL4030: 1,835 lb; KL4030C: 1,969 lb	SL2410: 675.3 lb
Loader Breakout Force	KL4030: 3,464 lb; KL4030C: 2,989 lb	SL2410: 1,332 lb

Warranty Length & Coverage	24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor	Not Published

Accessories that fit	Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	None tagged yet
