Across 8 measurable specs, this matchup is a dead heat: 3 categories to the Kioti CS2220, 3 to the Kioti CS2510, 2 tied. Machine pages: Kioti CS2220 and Kioti CS2510 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Kioti CS2220 Kioti CS2510 Engine HP (hp) 21 hp ▲ 24.5 hpPTO HP (hp) 16.3 hp ▲ 19.4 hpWeight (lb) 2,127 lb — Loader Lift (lb) ▲ 1,062.3 lb683.4 lb 3-Pt Lift (24 in) (lb) 700 lb 700 lb Lift Height (in) ▲ 73.7 in70.9 in Breakout Force (lbf) 1,329 lbf ▲ 1,435.2 lbfHydraulic Flow (gpm) ▲ 7 gpm6.5 gpm Travel Speed (mph) 10.3 mph 10.3 mph

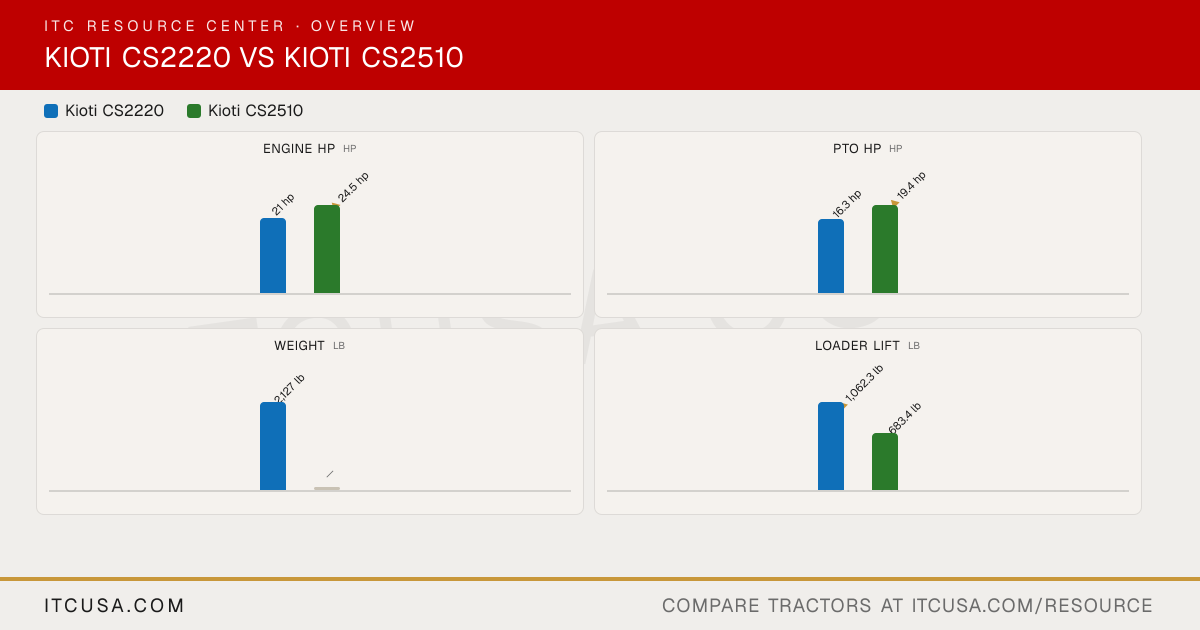

Overview Loader Work PTO Work
The headline numbers at a glance.
Kioti CS2220 Kioti CS2510
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Kioti CS2220 Kioti CS2510
▶ EnginePTO Power 16.3 hp 19.4 hp Alternator 50 A, 12 V 40 A, 12 V Air Cleaner Not Published Dry type (cyclone type) Engine Type In-line vertical, water-cooled turbo, diesel Liquid-cooled, diesel Fuel System Injection pump Injection pump type: Bosch; nozzle type: Throttle Displacement 61.5 in³ 69 in³ No. of Cylinders 3 3 Rated Engine Speed 3200 rpm 3000 rpm Cooling System Type Water-cooled Liquid-cooled Engine Manufacturer KIOTI (Daedong) Shibaura (S204.2 gal-F21) Engine Power (Gross) 21 hp 24.5 hp Engine Emissions Constraints U.S. EPA non-road emission regulation Not Published ▶ WeightWeight with ROPS and Loader 2,127 lb Not Published Weight with Cab and Loader Not Applicable Not Applicable ▶ WarrantyWarranty Length & Coverage Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor ▶ HydraulicsPump Type Gear Not Published Steering Flow Not Published Not Published Implement Flow 7.0 gpm Not Published Total Hydraulic Flow 6.97 gpm 6.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 6.97 gpm 6.5 gpm No. of Optional Remote Valves Not Published Not Published No. of Standard Remote Valves 1 Not Published ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent (wet multi disc clutch) Independent Lift Control Type Inching Position control Hitch Lift Capacity 1,580 lb 700 lbs (at 24 in) Mid-PTO Availability Standard Available (2,200 rpm) Category, 3-Point Hitch SAE Category I Category 1 Hitch Lift Capacity (at 24”) 700 lb 700 lbs ▶ Tire OptionsR3 Turf - Rear 26X12.00-12 26X12.00-12 R3 Turf - Front 18X8.50-10 18X8.5-8 Tire Size & Options R1 Agricultural, R3 Turf, R4 Industrial TractorData lists industrial tire sizes (see R4 rows); other tire options not specified. R4 Industrial - Rear 26X12.00-12 26X12.00-12 R4 Industrial - Front 18X8.50-10 18X8.50-10 R1 Agricultural - Rear 26X12.00-12 Not Applicable R1 Agricultural - Front 18X8.50-10 Not Applicable ▶ Fluid CapacityCoolant Capacity 0.87 gal 3.7 qt Crankcase Capacity 1.0 gal 3.2 qt Fuel Tank Capacity 6.7 gal 6.7 gal Front Axle Fluid Capacity 0.53 gal 0.5 gal Transmission / Hydraulic System Capacity 2.75 gal 3.4 gal ▶ Loader & AttachmentsLoader Lift Height 73.7 in 70.9 in Loader Breakout Force 1,329.0 lb 1,435.2 lb Quick Attach Loader System Quick Attach & Detach Loader (pinless design); Quick-attach (QA) bucket Quick-attach (QA) bucket Loader Lift Capacity (Full Height) 1,062.3 lb 683.4 lb ▶ Transmission & DrivetrainClutch Wet multi disc None No. of Speeds Infinite, 2-range Infinite, 2 range (High/Low) Transmission Type Hydrostatic (HST) HST (hydrostatic) Max Travel Speed (Forward) 10.3 mph 10.3 mph Max Travel Speed (Reverse) 7.0 mph 7 mph Differential Lock & Limited Slip Options Differential lock (standard) Rear differential lock (standard) ▶ Chassis, Steering & ControlsBrakes Wet multi disc Wet disk type Steering Hydrostatic power steering Power steering Frame Type Not Published Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Not Published ▶ Dimensions & ManeuverabilityWheelbase 55.12 in 55.12 in Overall Width 45.98 in 46.65 in Ground Clearance 6.38 in 6.38 in Height to Top of ROPS 87.63 in 87.63 in Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes Not Published 8.33 ft (2.54 m) (with one rear wheel braked) Overall Length with 3-Point Hitch 99.3 in 99.33 in ▶ ITC Company AccessoriesAccessories that fit
Kioti CS2220 vs Kioti CS2510: Quick Answers
Which has more horsepower, the Kioti CS2220 or the Kioti CS2510? The Kioti CS2510 leads on engine hp at 24.5 hp hp, compared to 21 hp hp for the Kioti CS2220.
Which has more PTO horsepower, the Kioti CS2220 or the Kioti CS2510? The Kioti CS2510 leads on pto hp at 19.4 hp hp, compared to 16.3 hp hp for the Kioti CS2220.
Which has more loader lift capacity, the Kioti CS2220 or the Kioti CS2510? The Kioti CS2220 leads on loader lift at 1,062.3 lb lb, compared to 683.4 lb lb for the Kioti CS2510.
Which has more three-point hitch lift capacity, the Kioti CS2220 or the Kioti CS2510? They are effectively tied: both machines are rated at 700 lb lb for 3-pt lift (24 in). More Head-to-Heads
