Kioti CS2220 vs Kubota B2301HSD

Across 9 measurable specs, the Kubota B2301HSD leads 7 categories to 2. Machine pages: Kioti CS2220 and Kubota B2301HSD.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

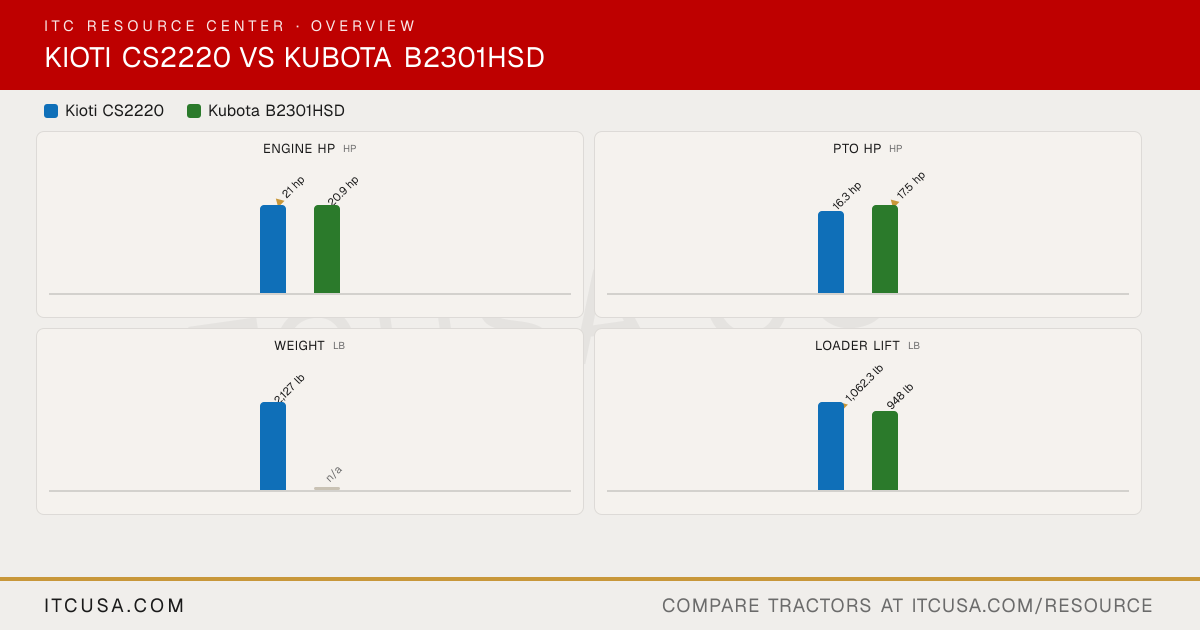

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCS2220	KubotaB2301HSD

▶Engine
Engine Manufacturer	KIOTI	Kubota
Engine Model	3C100LWH-U3	D1005
Engine Type	In-Line Vertical, Water-Cooled Diesel (3-cylinder)	E-TVCS, liquid cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	61.5 in³	61.1 in³
Rated Engine Speed	3200 rpm	2800 rpm
Engine Power (Gross)	21 hp	20.9 hp
PTO Power	16.3 hp	17.4 hp
Engine Emissions Constraints	U.S. EPA non-road emission regulation	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Not Published	Dual paper element
Fuel System	Not Published	Not Published
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Gear	Dual pump
Implement Flow	7.0 gpm	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	7.0 gpm	8.3 gpm
Overall Hydraulic Pump Flow	7.0 gpm	8.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	2
▶Fluid Capacity
Fuel Tank Capacity	6.7 gal	6.1 gal
Coolant Capacity	0.87 gal	4.0 qt
Crankcase Capacity	1.0 gal	3.3 qt
Transmission / Hydraulic System Capacity	2.75 gal	4.0 gal
Front Axle Fluid Capacity	0.53 gal	3.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Available (2,200 rpm)	2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,580 lb	1,808 lb
Hitch Lift Capacity (at 24”)	700 lb	1,411 lb
Lift Control Type	Position	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic transmission
No. of Speeds	Infinite, 2 range (High/Low)	3 ranges
Max Travel Speed (Forward)	9.6 mph	11.8 mph
Max Travel Speed (Reverse)	6.6 mph	8.9 mph
Clutch	None (hydrostatic transmission)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydraulic power steering
Brakes	Wet multi disc	Multi-plate wet disc
Seat Suspension & Adjustability	Not Published	High-back suspension seat with standard arm rests; tilt steering (HST models)
Front Axle Type	Mechanical 4WD	Four-wheel drive
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	660 lb
▶Dimensions & Maneuverability
Overall Width	45.9 in	45.3 in
Wheelbase	55.1 in	61.4 in
Ground Clearance	6.4 in	12.0 in
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	6.9 ft (with brake applied)
Height to Top of ROPS	87.6 in	83.9 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	99.3 in (with 3-point hitch)	93.7 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	1,554 lb (with AG. tires)	1,566 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Agricultural, Turf and Industrial: 18x8.5-10 front, 26x12.00-12 rear	Farm (R1): 6-12 front, 9.5-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear
R1 Agricultural - Front	18x8.5-10	6-12
R1 Agricultural - Rear	26x12.00-12	9.5-16
R3 Turf - Front	18x8.5-10	23x8.50-12
R3 Turf - Rear	26x12.00-12	33x12.5-15
R4 Industrial - Front	18x8.5-10	23x8.50-12
R4 Industrial - Rear	26x12.00-12	12-16.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach (QA) bucket, 48 in	Swift-Tach Loader (LA435 - 2-Lever Quick Coupler (Optional))
Loader Model	SL2420	LA435
Loader Lift Height	SL2420: 73.7 in (at pivot pin)	78.5 in (at pivot pin)
Loader Lift Capacity (Full Height)	SL2420: 1,062 lb	948 lb (at pivot pin)
Loader Breakout Force	SL2420: 1,329 lb (at pivot pin)	2,146 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Non-commercial: basic 24 months, powertrain 72 months on qualifying tractors, unlimited hours, parts and labor	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00

Find a KIOTI dealer near you→Find a Kubota dealer near you→

Kioti CS2220 vs Kubota B2301HSD: Quick Answers

Which has more horsepower, the Kioti CS2220 or the Kubota B2301HSD?

The Kioti CS2220 leads on engine hp at 21 hp hp, compared to 20.9 hp hp for the Kubota B2301HSD.

Which has more PTO horsepower, the Kioti CS2220 or the Kubota B2301HSD?

The Kubota B2301HSD leads on pto hp at 17.4 hp hp, compared to 16.3 hp hp for the Kioti CS2220.

Which is heavier, the Kioti CS2220 or the Kubota B2301HSD?

The Kubota B2301HSD leads on weight at 1,566 lb lb, compared to 1,554 lb lb for the Kioti CS2220.

Which has more loader lift capacity, the Kioti CS2220 or the Kubota B2301HSD?

The Kioti CS2220 leads on loader lift at 1,062 lb lb, compared to 948 lb lb for the Kubota B2301HSD.

Which has more three-point hitch lift capacity, the Kioti CS2220 or the Kubota B2301HSD?

The Kubota B2301HSD leads on 3-pt lift (24 in) at 1,411 lb lb, compared to 700 lb lb for the Kioti CS2220.
