LS Tractor XR3135 vs New Holland Boomer 35

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor XR3135 leads 5 categories to 1 (2 tied). Machine pages: LS Tractor XR3135 and New Holland Boomer 35.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor XR3135	New Holland Boomer 35
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	29.7 hp	29.7 hp
Weight (lb)	▲ 3,655 lb	2,870 lb
Loader Lift (lb)	▲ 2,185 lb	1,822 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,345 lb
Lift Height (in)	94.4 in	▲ 104 in
Breakout Force (lbf)	▲ 3,612 lbf	3,257 lbf
Hydraulic Flow (gpm)	▲ 13.7 gpm	13.5 gpm
Travel Speed (mph)	n/a	14.8 mph

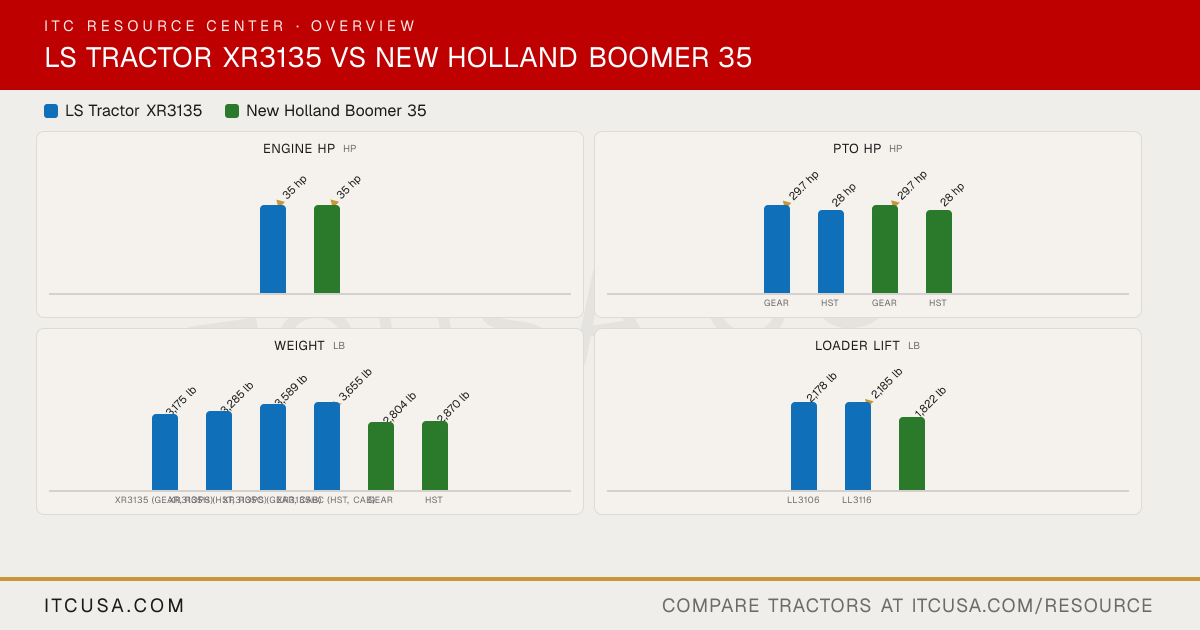

The headline numbers at a glance.

LS Tractor XR3135New Holland Boomer 35

Engine HPhp

▲35 hp

PTO HPhp

▲29.7 hp

28 hp

▲29.7 hp

28 hp

gearHSTGearHST

Weightlb

3,175 lb

3,285 lb

3,589 lb

▲3,655 lb

2,804 lb

2,870 lb

XR3135 (gear, ROPS)XR3135H (HST, ROPS)XR3135C (gear, cab)XR3135HC (HST, cab)GearHST

Loader Liftlb

2,178 lb

▲2,185 lb

1,822 lb

LL3106LL3116

3-Pt Lift (24 in)lb

▲1,433 lb

1,345 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXR3135	New HollandBoomer 35


Engine Manufacturer	LS	LS Mtron
Engine Model	L3C19-T5	L3CRV-T5
Engine Type	Vertical, water-cooled, 4-cycle diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	XR3135, XR3135C (gear): 29.7 hp; XR3135H, XR3135HC (HST): 28 hp	Gear: 29.7 hp; HST: 28 hp
Engine Emissions Constraints	Tier 4	Tier 4B (final)
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry	Replaceable primary and inner elements
Fuel System	CRDI (common rail direct injection)	Electronically controlled common rail direct injection
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear pump, engine driven	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	XR3135, XR3135C (gear): 4.1 gpm; XR3135H, XR3135HC (HST): 5.5 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 pairs	1
No. of Optional Remote Valves	Optional (2 or 6 quick couplers)	Up to 2 (second valve optional)

Fuel Tank Capacity	XR3135, XR3135H (ROPS): 10.6 gal; XR3135C, XR3135HC (cab): 12.4 gal	10.5 gal
Coolant Capacity	1.9 gal	7.5 qt
Crankcase Capacity	1.5 gal	5.8 qt
Transmission / Hydraulic System Capacity	7.9 gal	8.5 gal
Front Axle Fluid Capacity	1.7 gal	6.87 qt

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm (3-speed 540/750/1000 optional)	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,345 lb
Lift Control Type	Position and draft control	Position control (draft control optional)

Transmission Type	XR3135, XR3135C (gear): Synchro shuttle; XR3135H, XR3135HC (HST): HST	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	XR3135, XR3135C (gear): F12 x R12; XR3135H, XR3135HC (HST): 3 ranges (HST)	Gear: 12F/12R; HST: 3-range
Max Travel Speed (Forward)	Not Published	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Not Published	Gear: 13.63 mph; HST: 13.60 mph
Clutch	Mechanical: dry single clutch; HST: not applicable	Gear: dry single disc (9.4 in); HST: n/a
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Not Published	Adjustable suspension seat (fore/aft, weight and height adjustment)
Front Axle Type	Not Published	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	62 in	66.4 in
Wheelbase	69 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	9.2 ft (with brake applied)
Height to Top of ROPS	94 in	92.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	86.6 in	Not Published
Overall Length	128.3 in (bumper to link)	119 in

Tractor Weight (Base)	XR3135 (gear, ROPS): 3,175 lb; XR3135H (HST, ROPS): 3,285 lb; XR3135C (gear, cab): 3,589 lb; XR3135HC (HST, cab): 3,655 lb	Gear: 2,804 lb; HST: 2,870 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, industrial or turf tires at no additional cost	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.5-14	25x8.50-14
R3 Turf - Rear	41x14-20	41x14.00-20
R4 Industrial - Front	25x8.5-14	25x8.50-14
R4 Industrial - Rear	43x16-20	43x16.00-20

Quick Attach Loader System	LL3106, LL3116: quick attach, skid steer compatible	Tool-free loader mount; optional skid-steer quick-attach plates
Loader Model	LL3106; LL3116	250TLA
Loader Lift Height	LL3106: 92.7 in; LL3116: 94.4 in	250TLA: 104 in (at pivot pin)
Loader Lift Capacity (Full Height)	LL3106: 2,178 lb; LL3116: 2,185 lb (at pivot pin)	250TLA: 1,822 lb (at bucket pivot pin, max height)
Loader Breakout Force	LL3106: 3,450 lb; LL3116: 3,612 lb (at pivot pin)	250TLA: 3,257 lb (at bucket pivot pin)

Warranty Length & Coverage	6-year limited warranty	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)

Find a LS Tractor dealer near you Find a New Holland dealer near you

LS Tractor XR3135 vs New Holland Boomer 35: Quick Answers

Which has more horsepower, the LS Tractor XR3135 or the New Holland Boomer 35?: They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor XR3135 or the New Holland Boomer 35?: They are effectively tied: both machines are rated at 29.7 hp hp for pto hp.
Which is heavier, the LS Tractor XR3135 or the New Holland Boomer 35?: The LS Tractor XR3135 leads on weight at 3,655 lb lb, compared to 2,870 lb lb for the New Holland Boomer 35.
Which has more loader lift capacity, the LS Tractor XR3135 or the New Holland Boomer 35?: The LS Tractor XR3135 leads on loader lift at 2,185 lb lb, compared to 1,822 lb lb for the New Holland Boomer 35.
Which has more three-point hitch lift capacity, the LS Tractor XR3135 or the New Holland Boomer 35?: The LS Tractor XR3135 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,345 lb lb for the New Holland Boomer 35.

More Head-to-Heads

Category Verdict

Spec	LS Tractor XR3135	New Holland Boomer 35
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	29.7 hp	29.7 hp
Weight (lb)	▲ 3,655 lb	2,870 lb
Loader Lift (lb)	▲ 2,185 lb	1,822 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,345 lb
Lift Height (in)	94.4 in	▲ 104 in
Breakout Force (lbf)	▲ 3,612 lbf	3,257 lbf
Hydraulic Flow (gpm)	▲ 13.7 gpm	13.5 gpm
Travel Speed (mph)	n/a	14.8 mph

The headline numbers at a glance.

LS Tractor XR3135New Holland Boomer 35

Engine HPhp

▲35 hp

PTO HPhp

▲29.7 hp

28 hp

▲29.7 hp

28 hp

gearHSTGearHST

Weightlb

3,175 lb

3,285 lb

3,589 lb

▲3,655 lb

2,804 lb

2,870 lb

XR3135 (gear, ROPS)XR3135H (HST, ROPS)XR3135C (gear, cab)XR3135HC (HST, cab)GearHST

Loader Liftlb

2,178 lb

▲2,185 lb

1,822 lb

LL3106LL3116

3-Pt Lift (24 in)lb

▲1,433 lb

1,345 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXR3135	New HollandBoomer 35


Engine Manufacturer	LS	LS Mtron
Engine Model	L3C19-T5	L3CRV-T5
Engine Type	Vertical, water-cooled, 4-cycle diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	XR3135, XR3135C (gear): 29.7 hp; XR3135H, XR3135HC (HST): 28 hp	Gear: 29.7 hp; HST: 28 hp
Engine Emissions Constraints	Tier 4	Tier 4B (final)
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry	Replaceable primary and inner elements
Fuel System	CRDI (common rail direct injection)	Electronically controlled common rail direct injection
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear pump, engine driven	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	XR3135, XR3135C (gear): 4.1 gpm; XR3135H, XR3135HC (HST): 5.5 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 pairs	1
No. of Optional Remote Valves	Optional (2 or 6 quick couplers)	Up to 2 (second valve optional)

Fuel Tank Capacity	XR3135, XR3135H (ROPS): 10.6 gal; XR3135C, XR3135HC (cab): 12.4 gal	10.5 gal
Coolant Capacity	1.9 gal	7.5 qt
Crankcase Capacity	1.5 gal	5.8 qt
Transmission / Hydraulic System Capacity	7.9 gal	8.5 gal
Front Axle Fluid Capacity	1.7 gal	6.87 qt

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm (3-speed 540/750/1000 optional)	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,345 lb
Lift Control Type	Position and draft control	Position control (draft control optional)

Transmission Type	XR3135, XR3135C (gear): Synchro shuttle; XR3135H, XR3135HC (HST): HST	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	XR3135, XR3135C (gear): F12 x R12; XR3135H, XR3135HC (HST): 3 ranges (HST)	Gear: 12F/12R; HST: 3-range
Max Travel Speed (Forward)	Not Published	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Not Published	Gear: 13.63 mph; HST: 13.60 mph
Clutch	Mechanical: dry single clutch; HST: not applicable	Gear: dry single disc (9.4 in); HST: n/a
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Not Published	Adjustable suspension seat (fore/aft, weight and height adjustment)
Front Axle Type	Not Published	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	62 in	66.4 in
Wheelbase	69 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	9.2 ft (with brake applied)
Height to Top of ROPS	94 in	92.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	86.6 in	Not Published
Overall Length	128.3 in (bumper to link)	119 in

Tractor Weight (Base)	XR3135 (gear, ROPS): 3,175 lb; XR3135H (HST, ROPS): 3,285 lb; XR3135C (gear, cab): 3,589 lb; XR3135HC (HST, cab): 3,655 lb	Gear: 2,804 lb; HST: 2,870 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, industrial or turf tires at no additional cost	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.5-14	25x8.50-14
R3 Turf - Rear	41x14-20	41x14.00-20
R4 Industrial - Front	25x8.5-14	25x8.50-14
R4 Industrial - Rear	43x16-20	43x16.00-20

Quick Attach Loader System	LL3106, LL3116: quick attach, skid steer compatible	Tool-free loader mount; optional skid-steer quick-attach plates
Loader Model	LL3106; LL3116	250TLA
Loader Lift Height	LL3106: 92.7 in; LL3116: 94.4 in	250TLA: 104 in (at pivot pin)
Loader Lift Capacity (Full Height)	LL3106: 2,178 lb; LL3116: 2,185 lb (at pivot pin)	250TLA: 1,822 lb (at bucket pivot pin, max height)
Loader Breakout Force	LL3106: 3,450 lb; LL3116: 3,612 lb (at pivot pin)	250TLA: 3,257 lb (at bucket pivot pin)

Warranty Length & Coverage	6-year limited warranty	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)

Find a LS Tractor dealer near you Find a New Holland dealer near you

LS Tractor XR3135 vs New Holland Boomer 35: Quick Answers

Which has more horsepower, the LS Tractor XR3135 or the New Holland Boomer 35?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor XR3135 or the New Holland Boomer 35?

They are effectively tied: both machines are rated at 29.7 hp hp for pto hp.

Which is heavier, the LS Tractor XR3135 or the New Holland Boomer 35?

The LS Tractor XR3135 leads on weight at 3,655 lb lb, compared to 2,870 lb lb for the New Holland Boomer 35.

Which has more loader lift capacity, the LS Tractor XR3135 or the New Holland Boomer 35?

The LS Tractor XR3135 leads on loader lift at 2,185 lb lb, compared to 1,822 lb lb for the New Holland Boomer 35.

Which has more three-point hitch lift capacity, the LS Tractor XR3135 or the New Holland Boomer 35?

The LS Tractor XR3135 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,345 lb lb for the New Holland Boomer 35.

LS Tractor XR3135 vs New Holland Boomer 35

Category Verdict

Full Spec Sheet

LS Tractor XR3135 vs New Holland Boomer 35: Quick Answers

More Head-to-Heads

More in the resource center

Look up a tractor

Side-by-side comparison

The Netflix of tractor videos

Tractor guides and articles

LS Tractor XR3135 vs New Holland Boomer 35

Category Verdict

Full Spec Sheet

LS Tractor XR3135 vs New Holland Boomer 35: Quick Answers

More Head-to-Heads
