New Holland Boomer 35 vs New Holland Boomer 40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Boomer 40 leads 3 categories to 0 (6 tied). Machine pages: New Holland Boomer 35 and New Holland Boomer 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 35	New Holland Boomer 40
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	29.7 hp	▲ 34 hp
Weight (lb)	2,870 lb	▲ 3,574 lb
Loader Lift (lb)	1,822 lb	1,822 lb
3-Pt Lift (24 in) (lb)	1,345 lb	1,345 lb
Lift Height (in)	104 in	104 in
Breakout Force (lbf)	3,257 lbf	3,257 lbf
Hydraulic Flow (gpm)	13.5 gpm	13.5 gpm
Travel Speed (mph)	14.8 mph	14.8 mph

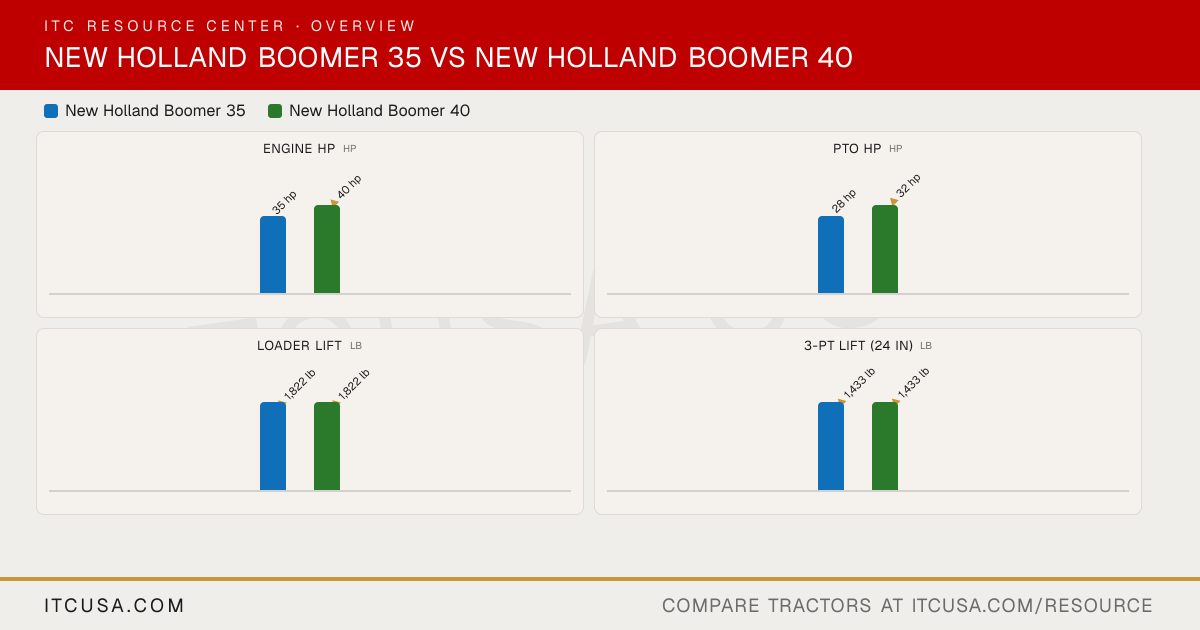

The headline numbers at a glance.

New Holland Boomer 35New Holland Boomer 40

Engine HPhp

35 hp

▲40 hp

PTO HPhp

29.7 hp

28 hp

▲34 hp

32 hp

GearHSTGearHST

Weightlb

2,804 lb

2,870 lb

2,804 lb

2,870 lb

▲3,574 lb

GearHSTROPS GearROPS HSTCab

Loader Liftlb

▲1,822 lb

3-Pt Lift (24 in)lb

▲1,345 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 35	New HollandBoomer 40


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3CRV-T5	L3CRV-T4
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	Gear: 29.7 hp; HST: 28 hp	Gear: 34 hp; HST: 32 hp
Engine Emissions Constraints	Tier 4B (final)	Tier 4B (final)
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Replaceable primary and inner elements	Replaceable primary and inner elements
Fuel System	Electronically controlled common rail direct injection	Electronically controlled common rail direct injection
Alternator	70 A, 12 V	ROPS: 70 A, 12 V; Cab: 85 A, 12 V

Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	Up to 2 (second valve optional)	Up to 2 (second valve optional)

Fuel Tank Capacity	10.5 gal	ROPS: 10.5 gal; Cab: 12.4 gal
Coolant Capacity	7.5 qt	7.5 qt
Crankcase Capacity	5.8 qt	5.8 qt
Transmission / Hydraulic System Capacity	8.5 gal	8.5 gal
Front Axle Fluid Capacity	6.87 qt	6.87 qt

PTO Type	Independent, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2000 rpm)	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,345 lb	1,345 lb
Lift Control Type	Position control (draft control optional)	Position control (draft control optional)

Transmission Type	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	Gear: 12F/12R; HST: 3-range	Gear: 12F/12R; HST: 3-range
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 13.60 mph	Gear: 13.63 mph; HST: 13.60 mph
Clutch	Gear: dry single disc (9.4 in); HST: n/a	Gear: dry single disc (9.4 in); HST: n/a
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Mechanical rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat (fore/aft, weight and height adjustment)	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth seat with weight control, easy fore/aft movement and adjustable armrests
Front Axle Type	Four-wheel drive (FWD)	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.4 in	66.4 in
Wheelbase	66 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	9.2 ft (with brake applied)
Height to Top of ROPS	92.7 in	92.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	90 in
Overall Length	119 in	119 in

Tractor Weight (Base)	Gear: 2,804 lb; HST: 2,870 lb	ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20

Quick Attach Loader System	Tool-free loader mount; optional skid-steer quick-attach plates	Tool-free loader mount; optional skid-steer quick-attach plates
Loader Model	250TLA	250TLA
Loader Lift Height	250TLA: 104 in (at pivot pin)	250TLA: 104 in (at pivot pin)
Loader Lift Capacity (Full Height)	250TLA: 1,822 lb (at bucket pivot pin, max height)	250TLA: 1,822 lb (at bucket pivot pin, max height)
Loader Breakout Force	250TLA: 3,257 lb (at bucket pivot pin)	250TLA: 3,257 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)

Find a New Holland dealer near you

New Holland Boomer 35 vs New Holland Boomer 40: Quick Answers

Which has more horsepower, the New Holland Boomer 35 or the New Holland Boomer 40?: The New Holland Boomer 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Boomer 35.
Which has more PTO horsepower, the New Holland Boomer 35 or the New Holland Boomer 40?: The New Holland Boomer 40 leads on pto hp at 34 hp hp, compared to 29.7 hp hp for the New Holland Boomer 35.
Which is heavier, the New Holland Boomer 35 or the New Holland Boomer 40?: The New Holland Boomer 40 leads on weight at 3,574 lb lb, compared to 2,870 lb lb for the New Holland Boomer 35.
Which has more loader lift capacity, the New Holland Boomer 35 or the New Holland Boomer 40?: They are effectively tied: both machines are rated at 1,822 lb lb for loader lift.
Which has more three-point hitch lift capacity, the New Holland Boomer 35 or the New Holland Boomer 40?: They are effectively tied: both machines are rated at 1,345 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	New Holland Boomer 35	New Holland Boomer 40
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	29.7 hp	▲ 34 hp
Weight (lb)	2,870 lb	▲ 3,574 lb
Loader Lift (lb)	1,822 lb	1,822 lb
3-Pt Lift (24 in) (lb)	1,345 lb	1,345 lb
Lift Height (in)	104 in	104 in
Breakout Force (lbf)	3,257 lbf	3,257 lbf
Hydraulic Flow (gpm)	13.5 gpm	13.5 gpm
Travel Speed (mph)	14.8 mph	14.8 mph

The headline numbers at a glance.

New Holland Boomer 35New Holland Boomer 40

Engine HPhp

35 hp

▲40 hp

PTO HPhp

29.7 hp

28 hp

▲34 hp

32 hp

GearHSTGearHST

Weightlb

2,804 lb

2,870 lb

2,804 lb

2,870 lb

▲3,574 lb

GearHSTROPS GearROPS HSTCab

Loader Liftlb

▲1,822 lb

3-Pt Lift (24 in)lb

▲1,345 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 35	New HollandBoomer 40


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3CRV-T5	L3CRV-T4
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	Gear: 29.7 hp; HST: 28 hp	Gear: 34 hp; HST: 32 hp
Engine Emissions Constraints	Tier 4B (final)	Tier 4B (final)
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Replaceable primary and inner elements	Replaceable primary and inner elements
Fuel System	Electronically controlled common rail direct injection	Electronically controlled common rail direct injection
Alternator	70 A, 12 V	ROPS: 70 A, 12 V; Cab: 85 A, 12 V

Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	Up to 2 (second valve optional)	Up to 2 (second valve optional)

Fuel Tank Capacity	10.5 gal	ROPS: 10.5 gal; Cab: 12.4 gal
Coolant Capacity	7.5 qt	7.5 qt
Crankcase Capacity	5.8 qt	5.8 qt
Transmission / Hydraulic System Capacity	8.5 gal	8.5 gal
Front Axle Fluid Capacity	6.87 qt	6.87 qt

PTO Type	Independent, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2000 rpm)	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,345 lb	1,345 lb
Lift Control Type	Position control (draft control optional)	Position control (draft control optional)

Transmission Type	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	Gear: 12F/12R; HST: 3-range	Gear: 12F/12R; HST: 3-range
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 13.60 mph	Gear: 13.63 mph; HST: 13.60 mph
Clutch	Gear: dry single disc (9.4 in); HST: n/a	Gear: dry single disc (9.4 in); HST: n/a
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Mechanical rear differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat (fore/aft, weight and height adjustment)	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth seat with weight control, easy fore/aft movement and adjustable armrests
Front Axle Type	Four-wheel drive (FWD)	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.4 in	66.4 in
Wheelbase	66 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	9.2 ft (with brake applied)
Height to Top of ROPS	92.7 in	92.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	90 in
Overall Length	119 in	119 in

Tractor Weight (Base)	Gear: 2,804 lb; HST: 2,870 lb	ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20

Quick Attach Loader System	Tool-free loader mount; optional skid-steer quick-attach plates	Tool-free loader mount; optional skid-steer quick-attach plates
Loader Model	250TLA	250TLA
Loader Lift Height	250TLA: 104 in (at pivot pin)	250TLA: 104 in (at pivot pin)
Loader Lift Capacity (Full Height)	250TLA: 1,822 lb (at bucket pivot pin, max height)	250TLA: 1,822 lb (at bucket pivot pin, max height)
Loader Breakout Force	250TLA: 3,257 lb (at bucket pivot pin)	250TLA: 3,257 lb (at bucket pivot pin)

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)

Find a New Holland dealer near you

New Holland Boomer 35 vs New Holland Boomer 40: Quick Answers

Which has more horsepower, the New Holland Boomer 35 or the New Holland Boomer 40?

The New Holland Boomer 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Boomer 35.

Which has more PTO horsepower, the New Holland Boomer 35 or the New Holland Boomer 40?

The New Holland Boomer 40 leads on pto hp at 34 hp hp, compared to 29.7 hp hp for the New Holland Boomer 35.

Which is heavier, the New Holland Boomer 35 or the New Holland Boomer 40?

The New Holland Boomer 40 leads on weight at 3,574 lb lb, compared to 2,870 lb lb for the New Holland Boomer 35.

Which has more loader lift capacity, the New Holland Boomer 35 or the New Holland Boomer 40?

They are effectively tied: both machines are rated at 1,822 lb lb for loader lift.

Which has more three-point hitch lift capacity, the New Holland Boomer 35 or the New Holland Boomer 40?

They are effectively tied: both machines are rated at 1,345 lb lb for 3-pt lift (24 in).
