New Holland Boomer 35 vs New Holland Workmaster 40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland Workmaster 40 leads 4 categories to 3 (1 tied). Machine pages: New Holland Boomer 35 and New Holland Workmaster 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 35	New Holland Workmaster 40
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	28 hp	▲ 29 hp
Weight (lb)	—	2,400 lb
Loader Lift (lb)	▲ 1,822 lb	1,500 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	▲ 104 in	91.5 in
Breakout Force (lbf)	2,444 lbf	▲ 2,700 lbf
Hydraulic Flow (gpm)	▲ 13.8 gpm	13 gpm
Travel Speed (mph)	14.8 mph	▲ 15 mph

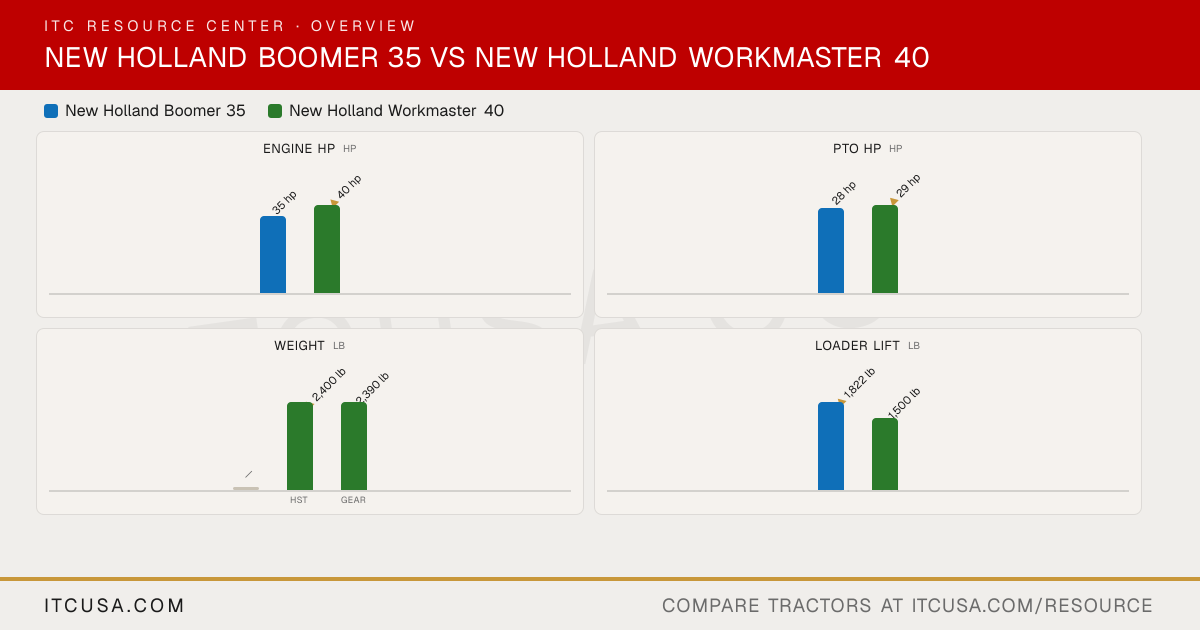

The headline numbers at a glance.

New Holland Boomer 35New Holland Workmaster 40

Engine HPhp

35 hp

▲40 hp

PTO HPhp

28 hp

▲29 hp

Weightlb

—

▲2,400 lb

2,390 lb

HSTGear

Loader Liftlb

▲1,822 lb

1,500 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 35	New HollandWorkmaster 40


PTO Power	28 hp	29 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Not Published	Dual element dry air cleaner
Engine Type	Not Published	Turbocharged diesel
Fuel System	CRDI	High pressure common rail (ECU controlled timing)
Displacement	0.1 in³	0.1 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Pressurized liquid with recirculating bypass
Engine Manufacturer	LS Mtron	LS Mtron
Engine Power (Gross)	35 hp	40 hp
Engine Emissions Constraints	T4B Final	Tier 4B Final

Weight with ROPS and Loader	Not Published	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear	Gear
Steering Flow	HST: 5.6 gpm; Gear: 4.2 gpm	4.8 gpm
Implement Flow	8.2 gpm	8.2 gpm
Total Hydraulic Flow	HST: 13.8 gpm; Gear: 12.4 gpm	13.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	HST: 13.8 gpm; Gear: 12.4 gpm	13.0 gpm
No. of Optional Remote Valves	1 or 2	1 or 2
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm (6-spline)
PTO Type	Independent (wet clutch, switch-actuated)	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	1808 lb	1,808 lb
Mid-PTO Availability	Standard	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1433 lb	1,433 lb

R3 Turf - Rear	41X14.00-20	41X14.00-20
R3 Turf - Front	25X8.50-14	25X8.50-14
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16.00X20; 43X16-20	43X16-20
R4 Industrial - Front	25X8.50-14	25X8.50-14
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7.0-14	7.0-14

Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Fuel Tank Capacity	10.5 gal	7.4 gal
Front Axle Fluid Capacity	Not Published	6.9 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal

Loader Lift Height	104 in	91.5 in (to bucket pivot pin)
Loader Breakout Force	2444 lb	2,700 lb (bucket pivot pin)
Quick Attach Loader System	250TLA: New Holland Quick Mount; optional skid steer quick attach	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	1822 lb	1,500 lb (bucket pivot pin, max height)

Clutch	Gear: Dry single disc; HST: Not Applicable	HST: Not Applicable; Gear: Dry disc, 9.4 in
No. of Speeds	HST: 3-range; Gear: 12F/12R	HST: Infinite (3-range); Gear: 12F/12R
Transmission Type	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
Max Travel Speed (Forward)	HST: 14.8 mph; Gear: 14.2 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	Not Published	HST: 14.96 mph; Gear: 13.63 mph
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Brakes	Wet disc	Wet disc
Steering	Power steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Four-wheel drive (4WD)	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	66 in	69 in
Overall Width	66.4 in	54 in
Ground Clearance	Not Published	13 in
Height to Top of ROPS	92.7 in	89 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	119 in	134 in

New Holland Boomer 35 vs New Holland Workmaster 40: Quick Answers

Which has more horsepower, the New Holland Boomer 35 or the New Holland Workmaster 40?: The New Holland Workmaster 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Boomer 35.
Which has more PTO horsepower, the New Holland Boomer 35 or the New Holland Workmaster 40?: The New Holland Workmaster 40 leads on pto hp at 29 hp hp, compared to 28 hp hp for the New Holland Boomer 35.
Which has more loader lift capacity, the New Holland Boomer 35 or the New Holland Workmaster 40?: The New Holland Boomer 35 leads on loader lift at 1,822 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 40.
Which has more three-point hitch lift capacity, the New Holland Boomer 35 or the New Holland Workmaster 40?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	New Holland Boomer 35	New Holland Workmaster 40
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	28 hp	▲ 29 hp
Weight (lb)	—	2,400 lb
Loader Lift (lb)	▲ 1,822 lb	1,500 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	▲ 104 in	91.5 in
Breakout Force (lbf)	2,444 lbf	▲ 2,700 lbf
Hydraulic Flow (gpm)	▲ 13.8 gpm	13 gpm
Travel Speed (mph)	14.8 mph	▲ 15 mph

The headline numbers at a glance.

New Holland Boomer 35New Holland Workmaster 40

Engine HPhp

35 hp

▲40 hp

PTO HPhp

28 hp

▲29 hp

Weightlb

—

▲2,400 lb

2,390 lb

HSTGear

Loader Liftlb

▲1,822 lb

1,500 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 35	New HollandWorkmaster 40


PTO Power	28 hp	29 hp
Alternator	70 A, 12 V	70 A, 12 V
Air Cleaner	Not Published	Dual element dry air cleaner
Engine Type	Not Published	Turbocharged diesel
Fuel System	CRDI	High pressure common rail (ECU controlled timing)
Displacement	0.1 in³	0.1 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Pressurized liquid with recirculating bypass
Engine Manufacturer	LS Mtron	LS Mtron
Engine Power (Gross)	35 hp	40 hp
Engine Emissions Constraints	T4B Final	Tier 4B Final

Weight with ROPS and Loader	Not Published	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear	Gear
Steering Flow	HST: 5.6 gpm; Gear: 4.2 gpm	4.8 gpm
Implement Flow	8.2 gpm	8.2 gpm
Total Hydraulic Flow	HST: 13.8 gpm; Gear: 12.4 gpm	13.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	HST: 13.8 gpm; Gear: 12.4 gpm	13.0 gpm
No. of Optional Remote Valves	1 or 2	1 or 2
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm (6-spline)
PTO Type	Independent (wet clutch, switch-actuated)	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	1808 lb	1,808 lb
Mid-PTO Availability	Standard	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1433 lb	1,433 lb

R3 Turf - Rear	41X14.00-20	41X14.00-20
R3 Turf - Front	25X8.50-14	25X8.50-14
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16.00X20; 43X16-20	43X16-20
R4 Industrial - Front	25X8.50-14	25X8.50-14
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7.0-14	7.0-14

Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Fuel Tank Capacity	10.5 gal	7.4 gal
Front Axle Fluid Capacity	Not Published	6.9 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal

Loader Lift Height	104 in	91.5 in (to bucket pivot pin)
Loader Breakout Force	2444 lb	2,700 lb (bucket pivot pin)
Quick Attach Loader System	250TLA: New Holland Quick Mount; optional skid steer quick attach	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	1822 lb	1,500 lb (bucket pivot pin, max height)

Clutch	Gear: Dry single disc; HST: Not Applicable	HST: Not Applicable; Gear: Dry disc, 9.4 in
No. of Speeds	HST: 3-range; Gear: 12F/12R	HST: Infinite (3-range); Gear: 12F/12R
Transmission Type	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
Max Travel Speed (Forward)	HST: 14.8 mph; Gear: 14.2 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	Not Published	HST: 14.96 mph; Gear: 13.63 mph
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Brakes	Wet disc	Wet disc
Steering	Power steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Four-wheel drive (4WD)	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	66 in	69 in
Overall Width	66.4 in	54 in
Ground Clearance	Not Published	13 in
Height to Top of ROPS	92.7 in	89 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	119 in	134 in

New Holland Boomer 35 vs New Holland Workmaster 40: Quick Answers

Which has more horsepower, the New Holland Boomer 35 or the New Holland Workmaster 40?

The New Holland Workmaster 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Boomer 35.

Which has more PTO horsepower, the New Holland Boomer 35 or the New Holland Workmaster 40?

The New Holland Workmaster 40 leads on pto hp at 29 hp hp, compared to 28 hp hp for the New Holland Boomer 35.

Which has more loader lift capacity, the New Holland Boomer 35 or the New Holland Workmaster 40?

The New Holland Boomer 35 leads on loader lift at 1,822 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 40.

Which has more three-point hitch lift capacity, the New Holland Boomer 35 or the New Holland Workmaster 40?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
