New Holland Boomer 40 vs New Holland Workmaster 35

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland Boomer 40 leads 5 categories to 2 (1 tied). Machine pages: New Holland Boomer 40 and New Holland Workmaster 35.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 40	New Holland Workmaster 35
Engine HP (hp)	▲ 40 hp	35 hp
PTO HP (hp)	▲ 32 hp	25.7 hp
Weight (lb)	n/a	2,400 lb
Loader Lift (lb)	▲ 1,822 lb	1,500 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	▲ 104 in	91.5 in
Breakout Force (lbf)	2,444 lbf	▲ 2,700 lbf
Hydraulic Flow (gpm)	▲ 13.8 gpm	13 gpm
Travel Speed (mph)	14.8 mph	▲ 15 mph

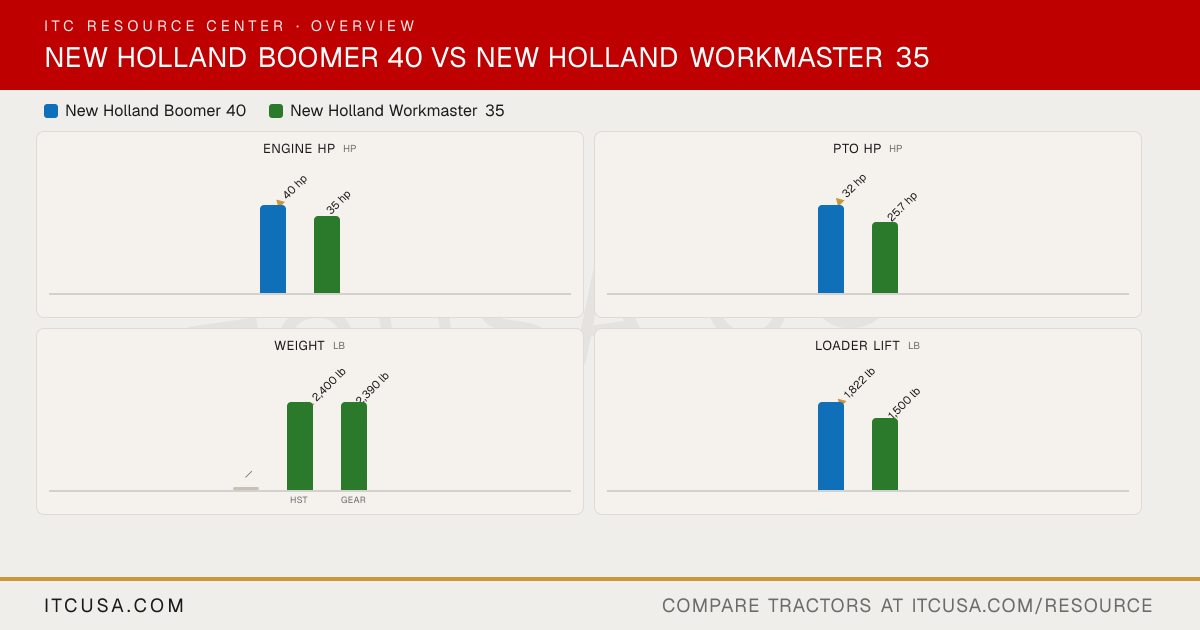

The headline numbers at a glance.

New Holland Boomer 40New Holland Workmaster 35

Engine HPhp

▲40 hp

35 hp

PTO HPhp

▲32 hp

25.7 hp

Weightlb

n/a

▲2,400 lb

2,390 lb

HSTGear

Loader Liftlb

▲1,822 lb

1,500 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 40	New HollandWorkmaster 35


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	LS Mtron L3C19-T	LS Mtron L3C19-T
Engine Type	Not Published	Turbocharged diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	35 hp
PTO Power	32 hp	25.7 hp
Engine Emissions Constraints	T4B Final	Tier 4B Final
Cooling System Type	Not Published	Pressurized liquid with recirculating bypass
Air Cleaner	Not Published	Dual element dry air cleaner
Fuel System	CRDI	High pressure common rail (ECU controlled timing)
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	HST: 5.6 gpm; Gear: 4.2 gpm	4.8 gpm
Total Hydraulic Flow	HST: 13.8 gpm; Gear: 12.4 gpm	13.0 gpm
Overall Hydraulic Pump Flow	HST: 13.8 gpm; Gear: 12.4 gpm	13.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	1 or 2	1 or 2

Fuel Tank Capacity	ROPS: 10.5 gal; CAB: 12.4 gal	7.4 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	6.9 qt

PTO Type	Independent (wet clutch, switch-actuated)	Independent
PTO Rear	540 rpm	540 rpm (6-spline)
Mid-PTO Availability	Standard	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1433 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
No. of Speeds	HST: 3-range; Gear: 12F/12R	HST: Infinite (3-range); Gear: 12F/12R
Max Travel Speed (Forward)	HST: 14.8 mph; Gear: 14.2 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	Not Published	HST: 14.96 mph; Gear: 13.63 mph
Clutch	Gear: Dry single disc; HST: Not Applicable	HST: Not Applicable; Gear: Dry disc, 9.4 in
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Four-wheel drive (4WD)	4WD (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	134 in
Overall Width	66.4 in	54 in
Wheelbase	66 in	69 in
Ground Clearance	Not Published	13 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.1 in	89 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94 in	Not Published

Tractor Weight (Base)	Not Published	Not Published
Weight with ROPS and Loader	Not Published	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7.0-14	7.0-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25X8.50-14	25X8.50-14
R3 Turf - Rear	41X14.00-20	41X14.00-20
R4 Industrial - Front	25X8.50-14	25X8.50-14
R4 Industrial - Rear	43X16.00X20; 43X16-20	43X16-20

Quick Attach Loader System	250TLA: New Holland Quick Mount; optional skid steer quick attach	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Model	Not Published	Not Published
Loader Lift Height	104 in	91.5 in (to bucket pivot pin)
Loader Lift Capacity (Full Height)	1822 lb	1,500 lb (bucket pivot pin, max height)
Loader Breakout Force	2444 lb	2,700 lb (bucket pivot pin)

Warranty Length & Coverage	6-year Boomer Guard Limited Warranty (2-year full + 4-year powertrain)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Find a New Holland dealer near you

New Holland Boomer 40 vs New Holland Workmaster 35: Quick Answers

Which has more horsepower, the New Holland Boomer 40 or the New Holland Workmaster 35?: The New Holland Boomer 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Workmaster 35.
Which has more PTO horsepower, the New Holland Boomer 40 or the New Holland Workmaster 35?: The New Holland Boomer 40 leads on pto hp at 32 hp hp, compared to 25.7 hp hp for the New Holland Workmaster 35.
Which has more loader lift capacity, the New Holland Boomer 40 or the New Holland Workmaster 35?: The New Holland Boomer 40 leads on loader lift at 1,822 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 35.
Which has more three-point hitch lift capacity, the New Holland Boomer 40 or the New Holland Workmaster 35?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	New Holland Boomer 40	New Holland Workmaster 35
Engine HP (hp)	▲ 40 hp	35 hp
PTO HP (hp)	▲ 32 hp	25.7 hp
Weight (lb)	n/a	2,400 lb
Loader Lift (lb)	▲ 1,822 lb	1,500 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	▲ 104 in	91.5 in
Breakout Force (lbf)	2,444 lbf	▲ 2,700 lbf
Hydraulic Flow (gpm)	▲ 13.8 gpm	13 gpm
Travel Speed (mph)	14.8 mph	▲ 15 mph

The headline numbers at a glance.

New Holland Boomer 40New Holland Workmaster 35

Engine HPhp

▲40 hp

35 hp

PTO HPhp

▲32 hp

25.7 hp

Weightlb

n/a

▲2,400 lb

2,390 lb

HSTGear

Loader Liftlb

▲1,822 lb

1,500 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 40	New HollandWorkmaster 35


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	LS Mtron L3C19-T	LS Mtron L3C19-T
Engine Type	Not Published	Turbocharged diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	35 hp
PTO Power	32 hp	25.7 hp
Engine Emissions Constraints	T4B Final	Tier 4B Final
Cooling System Type	Not Published	Pressurized liquid with recirculating bypass
Air Cleaner	Not Published	Dual element dry air cleaner
Fuel System	CRDI	High pressure common rail (ECU controlled timing)
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	HST: 5.6 gpm; Gear: 4.2 gpm	4.8 gpm
Total Hydraulic Flow	HST: 13.8 gpm; Gear: 12.4 gpm	13.0 gpm
Overall Hydraulic Pump Flow	HST: 13.8 gpm; Gear: 12.4 gpm	13.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	1 or 2	1 or 2

Fuel Tank Capacity	ROPS: 10.5 gal; CAB: 12.4 gal	7.4 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	6.9 qt

PTO Type	Independent (wet clutch, switch-actuated)	Independent
PTO Rear	540 rpm	540 rpm (6-spline)
Mid-PTO Availability	Standard	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1433 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
No. of Speeds	HST: 3-range; Gear: 12F/12R	HST: Infinite (3-range); Gear: 12F/12R
Max Travel Speed (Forward)	HST: 14.8 mph; Gear: 14.2 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	Not Published	HST: 14.96 mph; Gear: 13.63 mph
Clutch	Gear: Dry single disc; HST: Not Applicable	HST: Not Applicable; Gear: Dry disc, 9.4 in
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Four-wheel drive (4WD)	4WD (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	134 in
Overall Width	66.4 in	54 in
Wheelbase	66 in	69 in
Ground Clearance	Not Published	13 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.1 in	89 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94 in	Not Published

Tractor Weight (Base)	Not Published	Not Published
Weight with ROPS and Loader	Not Published	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7.0-14	7.0-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25X8.50-14	25X8.50-14
R3 Turf - Rear	41X14.00-20	41X14.00-20
R4 Industrial - Front	25X8.50-14	25X8.50-14
R4 Industrial - Rear	43X16.00X20; 43X16-20	43X16-20

Quick Attach Loader System	250TLA: New Holland Quick Mount; optional skid steer quick attach	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Model	Not Published	Not Published
Loader Lift Height	104 in	91.5 in (to bucket pivot pin)
Loader Lift Capacity (Full Height)	1822 lb	1,500 lb (bucket pivot pin, max height)
Loader Breakout Force	2444 lb	2,700 lb (bucket pivot pin)

Warranty Length & Coverage	6-year Boomer Guard Limited Warranty (2-year full + 4-year powertrain)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Find a New Holland dealer near you

New Holland Boomer 40 vs New Holland Workmaster 35: Quick Answers

Which has more horsepower, the New Holland Boomer 40 or the New Holland Workmaster 35?

The New Holland Boomer 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Workmaster 35.

Which has more PTO horsepower, the New Holland Boomer 40 or the New Holland Workmaster 35?

The New Holland Boomer 40 leads on pto hp at 32 hp hp, compared to 25.7 hp hp for the New Holland Workmaster 35.

Which has more loader lift capacity, the New Holland Boomer 40 or the New Holland Workmaster 35?

The New Holland Boomer 40 leads on loader lift at 1,822 lb lb, compared to 1,500 lb lb for the New Holland Workmaster 35.

Which has more three-point hitch lift capacity, the New Holland Boomer 40 or the New Holland Workmaster 35?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
