New Holland Boomer 40 vs New Holland Workmaster 35C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Boomer 40 leads 7 categories to 2. Machine pages: New Holland Boomer 40 and New Holland Workmaster 35C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 40	New Holland Workmaster 35C
Engine HP (hp)	▲ 40 hp	35 hp
PTO HP (hp)	▲ 34 hp	31 hp
Weight (lb)	▲ 3,574 lb	3,062 lb
Loader Lift (lb)	▲ 1,822 lb	1,344 lb
3-Pt Lift (24 in) (lb)	1,345 lb	▲ 1,596 lb
Lift Height (in)	▲ 104 in	92 in
Breakout Force (lbf)	▲ 3,257 lbf	2,138 lbf
Hydraulic Flow (gpm)	▲ 13.5 gpm	13.3 gpm
Travel Speed (mph)	14.8 mph	▲ 14.9 mph

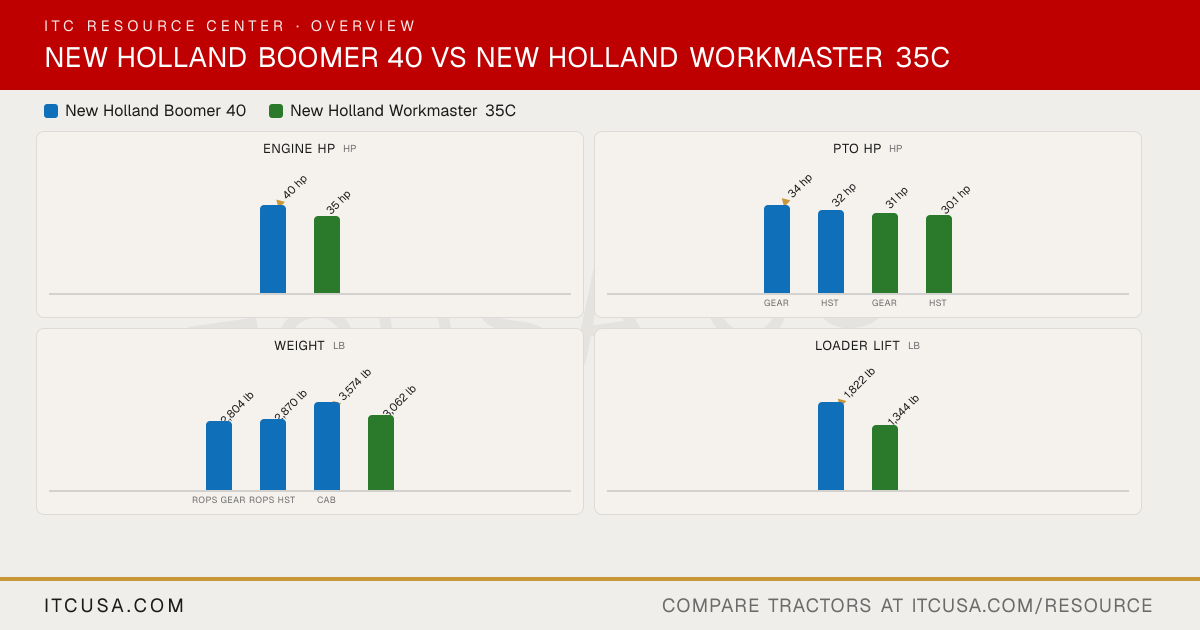

The headline numbers at a glance.

New Holland Boomer 40New Holland Workmaster 35C

Engine HPhp

▲40 hp

35 hp

PTO HPhp

▲34 hp

32 hp

31 hp

30.1 hp

GearHSTGearHST

Weightlb

2,804 lb

2,870 lb

▲3,574 lb

3,062 lb

ROPS GearROPS HSTCab

Loader Liftlb

▲1,822 lb

1,344 lb

3-Pt Lift (24 in)lb

1,345 lb

▲1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 40	New HollandWorkmaster 35C


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3CRV-T4	Not Published
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	35 hp
PTO Power	Gear: 34 hp; HST: 32 hp	Gear: 31 hp; HST: 30.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Replaceable primary and inner elements	Dual-element
Fuel System	Electronically controlled common rail direct injection	Common rail direct injection
Alternator	ROPS: 70 A, 12 V; Cab: 85 A, 12 V	70 A

Pump Type	Gear	Dual pump (dedicated steering pump)
Implement Flow	8.2 gpm	8.4 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	4.9 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.3 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0 (rear remotes optional)
No. of Optional Remote Valves	Up to 2 (second valve optional)	Up to 3

Fuel Tank Capacity	ROPS: 10.5 gal; Cab: 12.4 gal	12.6 gal
Coolant Capacity	7.5 qt	Not Published
Crankcase Capacity	5.8 qt	Not Published
Transmission / Hydraulic System Capacity	8.5 gal	Not Published
Front Axle Fluid Capacity	6.87 qt	Not Published

PTO Type	Independent, electro-hydraulic engagement	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	1,808 lb	2067 lb
Hitch Lift Capacity (at 24”)	1,345 lb	1596 lb
Lift Control Type	Position control (draft control optional)	Position control with drop-rate control

Transmission Type	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	Gear: 12F/12R; HST: 3-range	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 13.60 mph	Not Published
Clutch	Gear: dry single disc (9.4 in); HST: n/a	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering (dedicated steering pump)
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	Four-wheel drive (FWD)	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	133 in
Overall Width	66.4 in	65.4 in
Wheelbase	66 in	66 in
Ground Clearance	Not Published	12.7 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	123.2 in
Height to Top of ROPS	92.7 in	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	90 in	Not Published

Tractor Weight (Base)	ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb	3062 lb
Weight with ROPS and Loader	Not Published	4131 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	25x8.50-14	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16-20

Quick Attach Loader System	New Holland Quick Mount loader; optional skid steer quick attach plates	Skid steer quick attach
Loader Model	250TLA	250LC
Loader Lift Height	250TLA: 104 in	250LC: 92 in
Loader Lift Capacity (Full Height)	250TLA: 1,822 lb	250LC: 1344 lb
Loader Breakout Force	250TLA: 3,257 lb	250LC: 2,138 lb

Warranty Length & Coverage	Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain

Find a New Holland dealer near you

New Holland Boomer 40 vs New Holland Workmaster 35C: Quick Answers

Which has more horsepower, the New Holland Boomer 40 or the New Holland Workmaster 35C?: The New Holland Boomer 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Workmaster 35C.
Which has more PTO horsepower, the New Holland Boomer 40 or the New Holland Workmaster 35C?: The New Holland Boomer 40 leads on pto hp at 34 hp hp, compared to 31 hp hp for the New Holland Workmaster 35C.
Which is heavier, the New Holland Boomer 40 or the New Holland Workmaster 35C?: The New Holland Boomer 40 leads on weight at 3,574 lb lb, compared to 3,062 lb lb for the New Holland Workmaster 35C.
Which has more loader lift capacity, the New Holland Boomer 40 or the New Holland Workmaster 35C?: The New Holland Boomer 40 leads on loader lift at 1,822 lb lb, compared to 1,344 lb lb for the New Holland Workmaster 35C.
Which has more three-point hitch lift capacity, the New Holland Boomer 40 or the New Holland Workmaster 35C?: The New Holland Workmaster 35C leads on 3-pt lift (24 in) at 1,596 lb lb, compared to 1,345 lb lb for the New Holland Boomer 40.

More Head-to-Heads

Category Verdict

Spec	New Holland Boomer 40	New Holland Workmaster 35C
Engine HP (hp)	▲ 40 hp	35 hp
PTO HP (hp)	▲ 34 hp	31 hp
Weight (lb)	▲ 3,574 lb	3,062 lb
Loader Lift (lb)	▲ 1,822 lb	1,344 lb
3-Pt Lift (24 in) (lb)	1,345 lb	▲ 1,596 lb
Lift Height (in)	▲ 104 in	92 in
Breakout Force (lbf)	▲ 3,257 lbf	2,138 lbf
Hydraulic Flow (gpm)	▲ 13.5 gpm	13.3 gpm
Travel Speed (mph)	14.8 mph	▲ 14.9 mph

The headline numbers at a glance.

New Holland Boomer 40New Holland Workmaster 35C

Engine HPhp

▲40 hp

35 hp

PTO HPhp

▲34 hp

32 hp

31 hp

30.1 hp

GearHSTGearHST

Weightlb

2,804 lb

2,870 lb

▲3,574 lb

3,062 lb

ROPS GearROPS HSTCab

Loader Liftlb

▲1,822 lb

1,344 lb

3-Pt Lift (24 in)lb

1,345 lb

▲1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 40	New HollandWorkmaster 35C


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3CRV-T4	Not Published
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	35 hp
PTO Power	Gear: 34 hp; HST: 32 hp	Gear: 31 hp; HST: 30.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Replaceable primary and inner elements	Dual-element
Fuel System	Electronically controlled common rail direct injection	Common rail direct injection
Alternator	ROPS: 70 A, 12 V; Cab: 85 A, 12 V	70 A

Pump Type	Gear	Dual pump (dedicated steering pump)
Implement Flow	8.2 gpm	8.4 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	4.9 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.3 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0 (rear remotes optional)
No. of Optional Remote Valves	Up to 2 (second valve optional)	Up to 3

Fuel Tank Capacity	ROPS: 10.5 gal; Cab: 12.4 gal	12.6 gal
Coolant Capacity	7.5 qt	Not Published
Crankcase Capacity	5.8 qt	Not Published
Transmission / Hydraulic System Capacity	8.5 gal	Not Published
Front Axle Fluid Capacity	6.87 qt	Not Published

PTO Type	Independent, electro-hydraulic engagement	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	1,808 lb	2067 lb
Hitch Lift Capacity (at 24”)	1,345 lb	1596 lb
Lift Control Type	Position control (draft control optional)	Position control with drop-rate control

Transmission Type	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	Gear: 12F/12R; HST: 3-range	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 13.60 mph	Not Published
Clutch	Gear: dry single disc (9.4 in); HST: n/a	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering (dedicated steering pump)
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	Four-wheel drive (FWD)	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	133 in
Overall Width	66.4 in	65.4 in
Wheelbase	66 in	66 in
Ground Clearance	Not Published	12.7 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	123.2 in
Height to Top of ROPS	92.7 in	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	90 in	Not Published

Tractor Weight (Base)	ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb	3062 lb
Weight with ROPS and Loader	Not Published	4131 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	25x8.50-14	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16-20

Quick Attach Loader System	New Holland Quick Mount loader; optional skid steer quick attach plates	Skid steer quick attach
Loader Model	250TLA	250LC
Loader Lift Height	250TLA: 104 in	250LC: 92 in
Loader Lift Capacity (Full Height)	250TLA: 1,822 lb	250LC: 1344 lb
Loader Breakout Force	250TLA: 3,257 lb	250LC: 2,138 lb

Warranty Length & Coverage	Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain

Find a New Holland dealer near you

New Holland Boomer 40 vs New Holland Workmaster 35C: Quick Answers

Which has more horsepower, the New Holland Boomer 40 or the New Holland Workmaster 35C?

The New Holland Boomer 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Workmaster 35C.

Which has more PTO horsepower, the New Holland Boomer 40 or the New Holland Workmaster 35C?

The New Holland Boomer 40 leads on pto hp at 34 hp hp, compared to 31 hp hp for the New Holland Workmaster 35C.

Which is heavier, the New Holland Boomer 40 or the New Holland Workmaster 35C?

The New Holland Boomer 40 leads on weight at 3,574 lb lb, compared to 3,062 lb lb for the New Holland Workmaster 35C.

Which has more loader lift capacity, the New Holland Boomer 40 or the New Holland Workmaster 35C?

The New Holland Boomer 40 leads on loader lift at 1,822 lb lb, compared to 1,344 lb lb for the New Holland Workmaster 35C.

Which has more three-point hitch lift capacity, the New Holland Boomer 40 or the New Holland Workmaster 35C?

The New Holland Workmaster 35C leads on 3-pt lift (24 in) at 1,596 lb lb, compared to 1,345 lb lb for the New Holland Boomer 40.
