New Holland Workmaster 35 vs New Holland Workmaster 40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 40 leads 2 categories to 0 (7 tied). Machine pages: New Holland Workmaster 35 and New Holland Workmaster 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 35	New Holland Workmaster 40
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	29.7 hp	▲ 34 hp
Weight (lb)	3,067 lb	3,067 lb
Loader Lift (lb)	1,500 lb	1,500 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	91.5 in	91.5 in
Breakout Force (lbf)	2,700 lbf	2,700 lbf
Hydraulic Flow (gpm)	13.5 gpm	13.5 gpm
Travel Speed (mph)	14.8 mph	14.8 mph

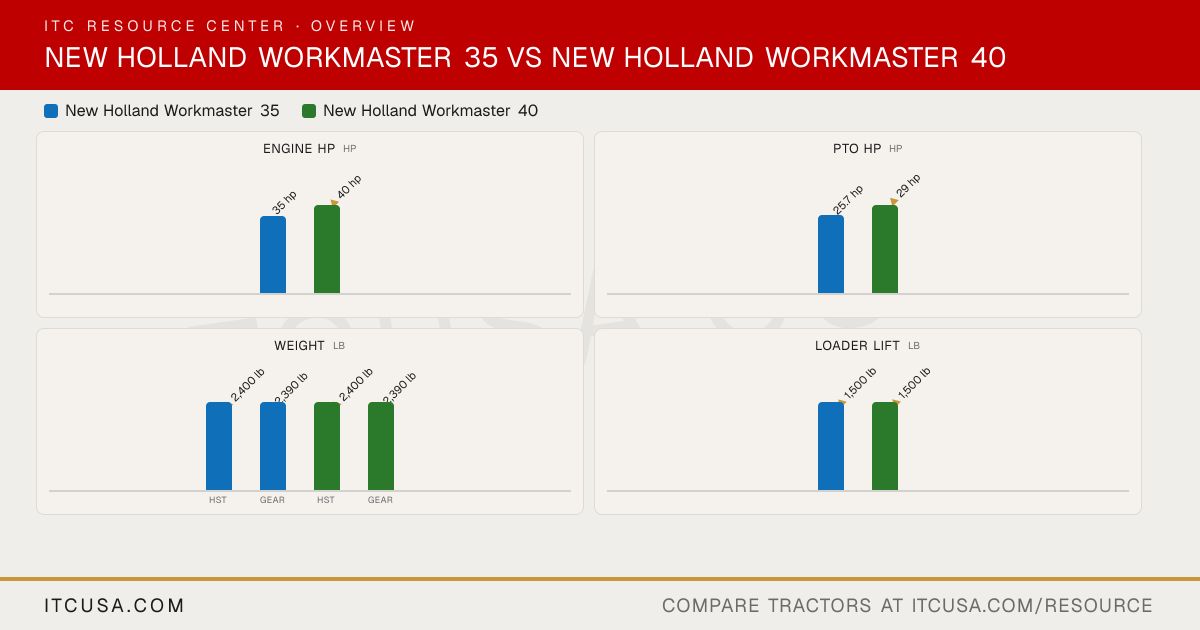

The headline numbers at a glance.

New Holland Workmaster 35New Holland Workmaster 40

Engine HPhp

35 hp

▲40 hp

PTO HPhp

29.7 hp

28 hp

▲34 hp

32 hp

GearHSTGearHST

Weightlb

▲3,067 lb

Loader Liftlb

▲1,500 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 35	New HollandWorkmaster 40


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3C19-T5	L3C19-T4
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	Gear: 29.7 hp; HST: 28 hp	Gear: 34 hp; HST: 32 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Pressurized liquid with recirculating bypass	Pressurized liquid with recirculating bypass
Air Cleaner	Dual element dry air cleaner (primary and inner safety element)	Dual element dry air cleaner (primary and inner safety element)
Fuel System	High pressure common rail, ECU-controlled timing	High pressure common rail, ECU-controlled timing
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1 or 2	1 or 2

Fuel Tank Capacity	7.4 gal	7.4 gal
Coolant Capacity	7.5 qt	7.5 qt
Crankcase Capacity	5.8 qt	5.8 qt
Transmission / Hydraulic System Capacity	8.5 gal	8.5 gal
Front Axle Fluid Capacity	6.9 qt	6.9 qt

PTO Type	Independent, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	HST: Standard; Gear: Optional (2,000 rpm)	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Position control	Position control

Transmission Type	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	Gear: 12F/12R; HST: Infinite (3 ranges)	Gear: 12F/12R; HST: Infinite (3 ranges)
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 14.96 mph	Gear: 13.63 mph; HST: 14.96 mph
Clutch	Gear: 9.4 in single dry disc; HST: Not applicable	Gear: 9.4 in single dry disc; HST: Not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Mechanical suspension seat, fore/aft adjustable, tilting	Mechanical suspension seat, fore/aft adjustable, tilting
Front Axle Type	4WD	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	121 in	121 in
Overall Width	66.5 in	66.5 in
Wheelbase	67.5 in	67.5 in
Ground Clearance	13 in	13 in
Min. Turn Radius without Brakes	123 in (left turn); 124 in (right turn)	123 in (left turn); 124 in (right turn)
Height to Top of ROPS	87.7 in	87.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,067 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	140TL: tool-free quick-mount system; optional skid-steer quick-attach plates	140TL: tool-free quick-mount system; optional skid-steer quick-attach plates
Loader Model	140TL	140TL
Loader Lift Height	140TL: 91.5 in	140TL: 91.5 in
Loader Lift Capacity (Full Height)	140TL: 1,500 lb	140TL: 1,500 lb
Loader Breakout Force	140TL: 2,700 lb	140TL: 2,700 lb

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total

Find a New Holland dealer near you

New Holland Workmaster 35 vs New Holland Workmaster 40: Quick Answers

Which has more horsepower, the New Holland Workmaster 35 or the New Holland Workmaster 40?: The New Holland Workmaster 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Workmaster 35.
Which has more PTO horsepower, the New Holland Workmaster 35 or the New Holland Workmaster 40?: The New Holland Workmaster 40 leads on pto hp at 34 hp hp, compared to 29.7 hp hp for the New Holland Workmaster 35.
Which is heavier, the New Holland Workmaster 35 or the New Holland Workmaster 40?: They are effectively tied: both machines are rated at 3,067 lb lb for weight.
Which has more loader lift capacity, the New Holland Workmaster 35 or the New Holland Workmaster 40?: They are effectively tied: both machines are rated at 1,500 lb lb for loader lift.
Which has more three-point hitch lift capacity, the New Holland Workmaster 35 or the New Holland Workmaster 40?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	New Holland Workmaster 35	New Holland Workmaster 40
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	29.7 hp	▲ 34 hp
Weight (lb)	3,067 lb	3,067 lb
Loader Lift (lb)	1,500 lb	1,500 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	91.5 in	91.5 in
Breakout Force (lbf)	2,700 lbf	2,700 lbf
Hydraulic Flow (gpm)	13.5 gpm	13.5 gpm
Travel Speed (mph)	14.8 mph	14.8 mph

The headline numbers at a glance.

New Holland Workmaster 35New Holland Workmaster 40

Engine HPhp

35 hp

▲40 hp

PTO HPhp

29.7 hp

28 hp

▲34 hp

32 hp

GearHSTGearHST

Weightlb

▲3,067 lb

Loader Liftlb

▲1,500 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 35	New HollandWorkmaster 40


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3C19-T5	L3C19-T4
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	Gear: 29.7 hp; HST: 28 hp	Gear: 34 hp; HST: 32 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Pressurized liquid with recirculating bypass	Pressurized liquid with recirculating bypass
Air Cleaner	Dual element dry air cleaner (primary and inner safety element)	Dual element dry air cleaner (primary and inner safety element)
Fuel System	High pressure common rail, ECU-controlled timing	High pressure common rail, ECU-controlled timing
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1 or 2	1 or 2

Fuel Tank Capacity	7.4 gal	7.4 gal
Coolant Capacity	7.5 qt	7.5 qt
Crankcase Capacity	5.8 qt	5.8 qt
Transmission / Hydraulic System Capacity	8.5 gal	8.5 gal
Front Axle Fluid Capacity	6.9 qt	6.9 qt

PTO Type	Independent, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	HST: Standard; Gear: Optional (2,000 rpm)	HST: Standard; Gear: Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Position control	Position control

Transmission Type	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal	Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal
No. of Speeds	Gear: 12F/12R; HST: Infinite (3 ranges)	Gear: 12F/12R; HST: Infinite (3 ranges)
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Gear: 14.2 mph; HST: 14.8 mph
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 14.96 mph	Gear: 13.63 mph; HST: 14.96 mph
Clutch	Gear: 9.4 in single dry disc; HST: Not applicable	Gear: 9.4 in single dry disc; HST: Not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Mechanical suspension seat, fore/aft adjustable, tilting	Mechanical suspension seat, fore/aft adjustable, tilting
Front Axle Type	4WD	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	121 in	121 in
Overall Width	66.5 in	66.5 in
Wheelbase	67.5 in	67.5 in
Ground Clearance	13 in	13 in
Min. Turn Radius without Brakes	123 in (left turn); 124 in (right turn)	123 in (left turn); 124 in (right turn)
Height to Top of ROPS	87.7 in	87.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,067 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	140TL: tool-free quick-mount system; optional skid-steer quick-attach plates	140TL: tool-free quick-mount system; optional skid-steer quick-attach plates
Loader Model	140TL	140TL
Loader Lift Height	140TL: 91.5 in	140TL: 91.5 in
Loader Lift Capacity (Full Height)	140TL: 1,500 lb	140TL: 1,500 lb
Loader Breakout Force	140TL: 2,700 lb	140TL: 2,700 lb

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total	Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total

Find a New Holland dealer near you

New Holland Workmaster 35 vs New Holland Workmaster 40: Quick Answers

Which has more horsepower, the New Holland Workmaster 35 or the New Holland Workmaster 40?

The New Holland Workmaster 40 leads on engine hp at 40 hp hp, compared to 35 hp hp for the New Holland Workmaster 35.

Which has more PTO horsepower, the New Holland Workmaster 35 or the New Holland Workmaster 40?

The New Holland Workmaster 40 leads on pto hp at 34 hp hp, compared to 29.7 hp hp for the New Holland Workmaster 35.

Which is heavier, the New Holland Workmaster 35 or the New Holland Workmaster 40?

They are effectively tied: both machines are rated at 3,067 lb lb for weight.

Which has more loader lift capacity, the New Holland Workmaster 35 or the New Holland Workmaster 40?

They are effectively tied: both machines are rated at 1,500 lb lb for loader lift.

Which has more three-point hitch lift capacity, the New Holland Workmaster 35 or the New Holland Workmaster 40?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
