Which has more horsepower, the TYM 3015 or the TYM 3515?

The TYM 3515 leads on engine hp at 35 hp hp, compared to 30 hp hp for the TYM 3015.

Which has more PTO horsepower, the TYM 3015 or the TYM 3515?

The TYM 3515 leads on pto hp at 30 hp hp, compared to 25 hp hp for the TYM 3015.

Which is heavier, the TYM 3015 or the TYM 3515?

They are effectively tied: both machines are rated at 4,191 lb lb for weight.

Which has more loader lift capacity, the TYM 3015 or the TYM 3515?

They are effectively tied: both machines are rated at 2,200 lb lb for loader lift.

Which has more three-point hitch lift capacity, the TYM 3015 or the TYM 3515?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).

TYM 3015 vs TYM 3515

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the TYM 3515 leads 2 categories to 0 (7 tied). Machine pages: TYM 3015 and TYM 3515.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	TYM 3015	TYM 3515
Engine HP (hp)	30 hp	▲ 35 hp
PTO HP (hp)	25 hp	▲ 30 hp
Weight (lb)	4,191 lb	4,191 lb
Loader Lift (lb)	2,200 lb	2,200 lb
3-Pt Lift (24 in) (lb)	2,425 lb	2,425 lb
Lift Height (in)	104.9 in	104.9 in
Breakout Force (lbf)	3,422 lbf	3,422 lbf
Hydraulic Flow (gpm)	12.3 gpm	12.3 gpm
Travel Speed (mph)	18.8 mph	18.8 mph

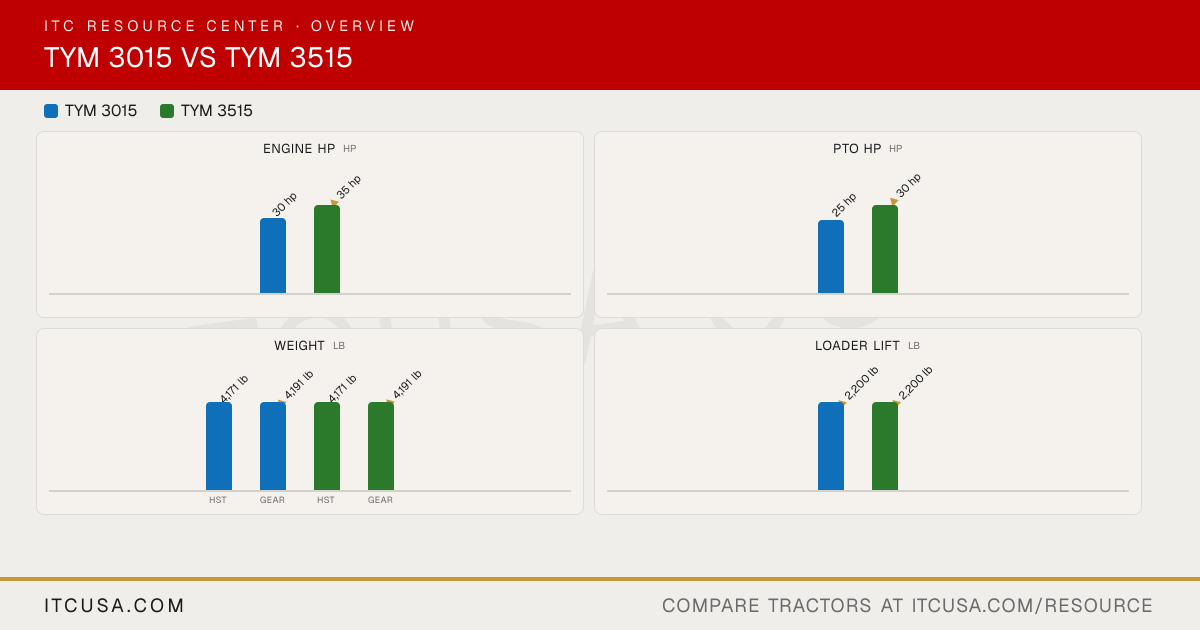

The headline numbers at a glance.

TYM 3015TYM 3515

Engine HPhp

30 hp

▲35 hp

PTO HPhp

25 hp

▲30 hp

Weightlb

4,171 lb

▲4,191 lb

4,171 lb

▲4,191 lb

HSTGearHSTGear

Loader Liftlb

▲2,200 lb

3-Pt Lift (24 in)lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM3015	TYM3515


PTO Power	25 hp	30 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Dry Element	Dry Element
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
Fuel System	IDI	IDI
Displacement	104.6 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	TYM T1700N3	TYM
Engine Power (Gross)	30 hp	35 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	HST: 4,171 lb; Gear: 4,191 lb	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Single Gear Pump	Single Gear Pump
Steering Flow	8 gpm	8.0 gpm
Implement Flow	4.3 gpm	4.3 gpm
Total Hydraulic Flow	12.3 gpm	12.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.3 gpm	12.3 gpm
No. of Optional Remote Valves	Up to 4	Up to 4
No. of Standard Remote Valves	0	0

PTO Rear	560 rpm	560 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	3,306 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	R1 Agricultural, R4 Industrial	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	43x16.00-20	43x16.00-20
R4 Industrial - Front	28x8.50-15	28x8.50-15
R1 Agricultural - Rear	12.4-24	12.4-24
R1 Agricultural - Front	8.0-16	8.0-16

Coolant Capacity	5.3 qt	5.28 qt
Crankcase Capacity	4.5 qt	4.5 qt
Fuel Tank Capacity	7.1 gal	7.1 gal
Front Axle Fluid Capacity	1.7 qt	1.7 qt
Transmission / Hydraulic System Capacity	HST: 9.8 gal; Gear: 8.9 gal	HST: 9.8 gal; Gear: 8.9 gal

Loader Lift Height	104.9 in	104.9 in
Loader Breakout Force	3,422 lb	3,422 lb
Quick Attach Loader System	BL150: Quick attach assembly (lever-lock)	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	2,200 lb	2,200 lb

Clutch	HST: Not Applicable; Gear: Dry Single Plate	HST: Not Applicable; Gear: Dry Single Plate
No. of Speeds	HST: 3-Range; Gear: F12 x R12	HST: 3-Range; Gear: F12 x R12
Transmission Type	HST: HST; Gear: Synchromesh	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	HST: 18.8 mph; Gear: 14.4 mph	HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Differential lock

Brakes	Wet, Multi-disc	Wet, Multi-disc
Steering	Hydrostatic	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Comfortable suspension seat	Comfortable suspension seat

Wheelbase	65.7 in	65.7 in
Overall Width	56.3 in	56.3 in
Ground Clearance	14.4 in	14.4 in
Height to Top of ROPS	97.3 in	97.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	104.7 in	102 in
Overall Length with 3-Point Hitch	120.9 in	120.9 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

TYM 3015 vs TYM 3515: Quick Answers

Which has more horsepower, the TYM 3015 or the TYM 3515?: The TYM 3515 leads on engine hp at 35 hp hp, compared to 30 hp hp for the TYM 3015.
Which has more PTO horsepower, the TYM 3015 or the TYM 3515?: The TYM 3515 leads on pto hp at 30 hp hp, compared to 25 hp hp for the TYM 3015.
Which is heavier, the TYM 3015 or the TYM 3515?: They are effectively tied: both machines are rated at 4,191 lb lb for weight.
Which has more loader lift capacity, the TYM 3015 or the TYM 3515?: They are effectively tied: both machines are rated at 2,200 lb lb for loader lift.
Which has more three-point hitch lift capacity, the TYM 3015 or the TYM 3515?: They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
