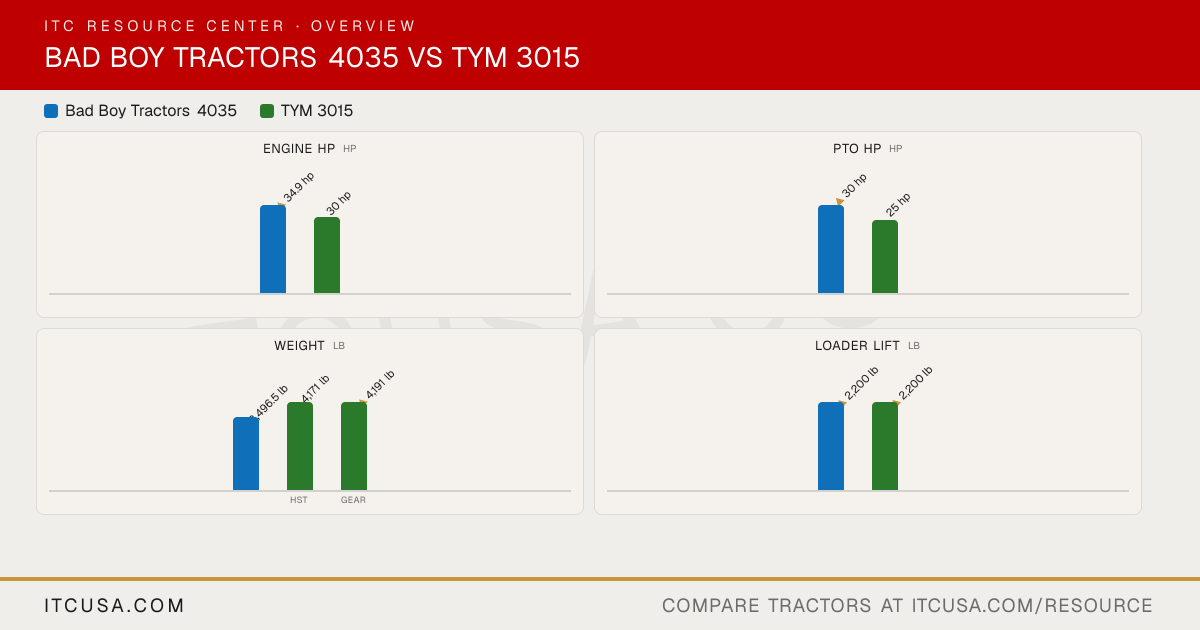

Every published spec, side by side, including the details the graphs above don't chart.
Spec
Bad Boy Tractors4035
TYM3015
PTO Power
30 hp
25 hp
Alternator
50 A, 12 V
50 A, 12 V
Air Cleaner
Not Published
Dry Element
Engine Type
3 Cylinder, Water-Cooled, Diesel
3-cylinder, naturally aspirated diesel
Fuel System
Diesel fuel
IDI
Displacement
104.7 in³
104.6 in³
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Water cooled
Not Published
Engine Manufacturer
A1700N4-BUTC_4
TYM T1700N3
Engine Power (Gross)
34.9 hp
30 hp
Engine Emissions Constraints
EPA Final Tier4
Tier 4
Tractor Weight (Base)
3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL
—
Weight with ROPS and Loader
3163 lbs
HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader
3,728 lbs
Not Applicable
Warranty Length & Coverage
6-year powertrain warranty
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Not Published
Single Gear Pump
Steering Flow
4.4 gpm
8 gpm
Implement Flow
8.2 gpm
4.3 gpm
Total Hydraulic Flow
12.6 gpm (4.4+8.2)
12.3 gpm
Hydraulic System Type
Open Center
Open center
System Operating Pressure
180 - 407.9 lbf/cm² for control valve
—
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
12.6 gpm
12.3 gpm
No. of Optional Remote Valves
Optional (up to 2)
Up to 4
No. of Standard Remote Valves
Not Published
0
PTO Rear
540 RPM
560 rpm
PTO Type
Independent
Independent
Lift Control Type
Position Control
Position control
Hitch Lift Capacity
3,306.9 lb
3,306 lb
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Cat 1
Category I
Hitch Lift Capacity (at 24”)
2,425 lb
2,425 lb
R3 Turf - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
Tire Size & Options
Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20
