TYM 3015 vs TYM 3620

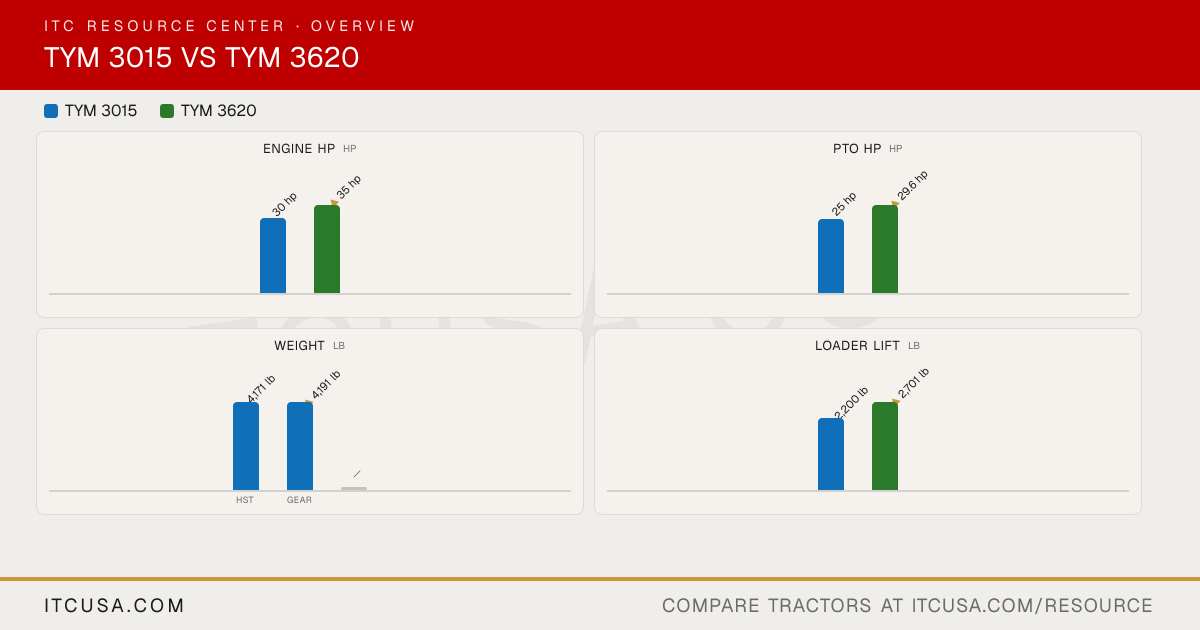

Across 9 measurable specs, the TYM 3620 leads 7 categories to 0 (2 tied). Machine pages: TYM 3015 and TYM 3620.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	TYM3015	TYM3620

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	T1700N3	T1700N2
Engine Type	3-cylinder, naturally aspirated diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	104.5 in³	104.5 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	30 hp	35 hp
PTO Power	25 hp	28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Liquid-cooled
Air Cleaner	Dry element	Dry element
Fuel System	IDI (indirect injection)	IDI
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Dual gear pump	Dual gear pump
Implement Flow	7.7 gpm	7.7 gpm
Steering Flow	4.2 gpm	4.2 gpm
Total Hydraulic Flow	11.9 gpm	11.9 gpm
Overall Hydraulic Pump Flow	11.9 gpm	11.9 gpm
Hydraulic System Type	Dual gear pump	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Loader: 2 / Rear: 0	Optional (up to 4)
No. of Optional Remote Valves	Up to 4	Up to 4
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	11.8 gal
Coolant Capacity	5.3 qt	6 qt
Crankcase Capacity	4.5 qt	4.5 qt
Transmission / Hydraulic System Capacity	3015R: 9 gal; 3015H: 9.8 gal	3620R: 10.3 gal; 3620H: 11.1 gal
Front Axle Fluid Capacity	6.8 qt	6.8 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540/750 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306 lb	3,306 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	3015R: Synchromesh; 3015H: HST	3620R: Synchromesh; 3620H: HST
No. of Speeds	3015R: F12 x R12; 3015H: 3-Range	3620R: F16 x R16; 3620H: 4-Range
Max Travel Speed (Forward)	3015R: 14.4 mph; 3015H: 18.8 mph	3620R: 16 mph; 3620H: 19.5 mph
Max Travel Speed (Reverse)	3015R: 14.3 mph; 3015H: 18.7 mph	3620R: 15.2 mph; 3620H: 19.5 mph
Clutch	3015R: Dry single plate; 3015H: None (HST)	3620R: Dry single type; 3620H: No clutch (HST)
Differential Lock & Limited Slip Options	Differential lock (standard)	Standard differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Suspension seat	Suspension seat
Front Axle Type	Not Published	4WD (selectable 2WD/4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	56.3 in	64.9 in
Wheelbase	65.7 in	71.1 in
Ground Clearance	14.4 in	15.5 in
Min. Turn Radius without Brakes	L: 124.8 in; R: 121.3 in	L: 128.7 in; R: 126.0 in
Height to Top of ROPS	97.3 in	98.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	120.9 in (with 3-point hitch)	127.4 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3015R: 3,183 lb; 3015H: 3,163 lb	3,754 lb (with ROPS)
Weight with ROPS and Loader	HST: 4,171 lb (3,163 + 1,008, computed); Gear: 4,191 lb (3,183 + 1,008, computed)	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural 8-16 / 12.4-24; R3 Turf 27x8.5-15 6PR / 41x14.00 4PR; R4 Industrial 10-16.5 6PR / 420/70-24 6PR	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8-16	9.5-16
R1 Agricultural - Rear	12.4-24	12.4-28
R3 Turf - Front	27x8.5-15, 6PR	27x8.5-15 / 29x12.5-15
R3 Turf - Rear	41x14.00, 4PR	41x14-20 / 44x18-20
R4 Industrial - Front	10-16.5, 6PR	10x16.5
R4 Industrial - Rear	420/70-24, 6PR	420/70x24
▶Loader & Attachments
Quick Attach Loader System	BL150: Quick attach mechanism	BL200: Quick attach mechanism
Loader Model	BL150	BL200
Loader Lift Height	BL150: 104.9 in	BL200: 106.6 in
Loader Lift Capacity (Full Height)	BL150: 2,200 lb (at pivot pin)	BL200: 2,701 lb (at pivot pin)
Loader Breakout Force	BL150: 3,422 lb (at pivot pin, ground level)	BL200: 3,660 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00 Branson TYM 15 Series Hydraulic Valve Cover $225.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM 20 Series Protection Package $2150.00

Find a TYM dealer near you→

TYM 3015 vs TYM 3620: Quick Answers

Which has more horsepower, the TYM 3015 or the TYM 3620?

The TYM 3620 leads on engine hp at 35 hp hp, compared to 30 hp hp for the TYM 3015.

Which has more PTO horsepower, the TYM 3015 or the TYM 3620?

The TYM 3620 leads on pto hp at 28 hp hp, compared to 25 hp hp for the TYM 3015.

Which is heavier, the TYM 3015 or the TYM 3620?

The TYM 3620 leads on weight at 3,754 lb lb, compared to 3,183 lb lb for the TYM 3015.

Which has more loader lift capacity, the TYM 3015 or the TYM 3620?

The TYM 3620 leads on loader lift at 2,701 lb lb, compared to 2,200 lb lb for the TYM 3015.

Which has more three-point hitch lift capacity, the TYM 3015 or the TYM 3620?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
